HEWI 950.50.63040 - 850 mm

HEWI 950.50.63040 - 850 mm

8429505063040

€639,30 EUR
€639,30 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 20 days

Colour: Chrome High-gloss chrome

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

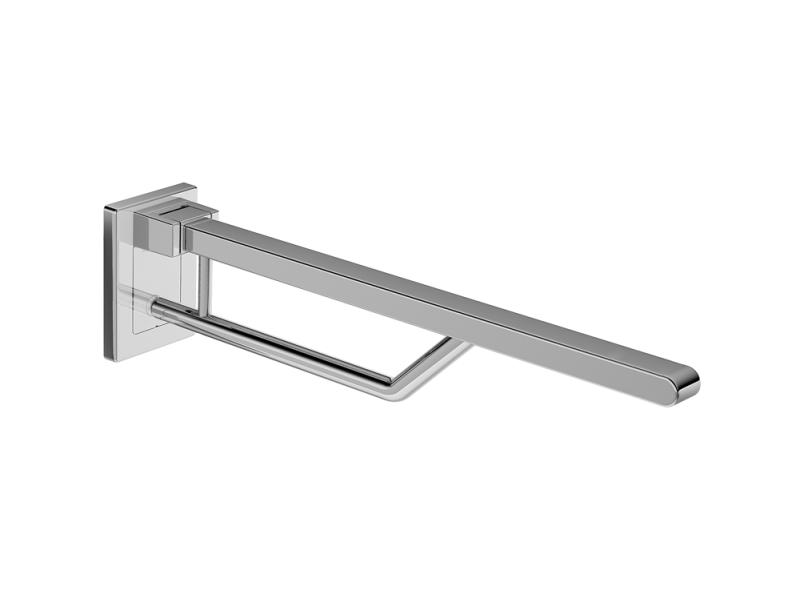

Fold-up support rail Duo
- with two grip levels one above the other
- Lower rail is guided at an angle of 135° to the upper rail
- Upper rail made of square profile, 40 mm wide and 30 mm high, offers a wide support surface and large radii for comfortable gripping, serves to hold and support
- Lower rail (diameter 25 mm) is placed at a distance of 250 mm from the front edge of the upper rail and is used to keep it in place and swivel it sideways
- Projection 850 mm, wall plate 181 mm high and 130 mm wide
- Can be folded up and braked down
- made of metal, high-quality chrome-plated
- High-quality chrome-plated plastic wall plate cover
- Stable three-point attachment
- for wall mounting with concealed, corrosion-free and tested fastening material for different wall structures (to be ordered separately)
- sealing tape for sealing the fastening points is included in the delivery
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- with toilet roll holder 950.50.01150, toilet roll holder with toilet flush release 950.50.07290 (right), 950.50.07390 (left), floor supports 950.50.020XA, 950.50.025XA, 950.50.026XA and armrest 950.50.03192 can be retrofitted.
- is manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500

Specifications

Article number 8429505063040
Brand HEWI
Weight 6.7 kg
Colour Chrome
Material Metal
Assembly Surface mounted
Finish Verchroomd hoogglans
