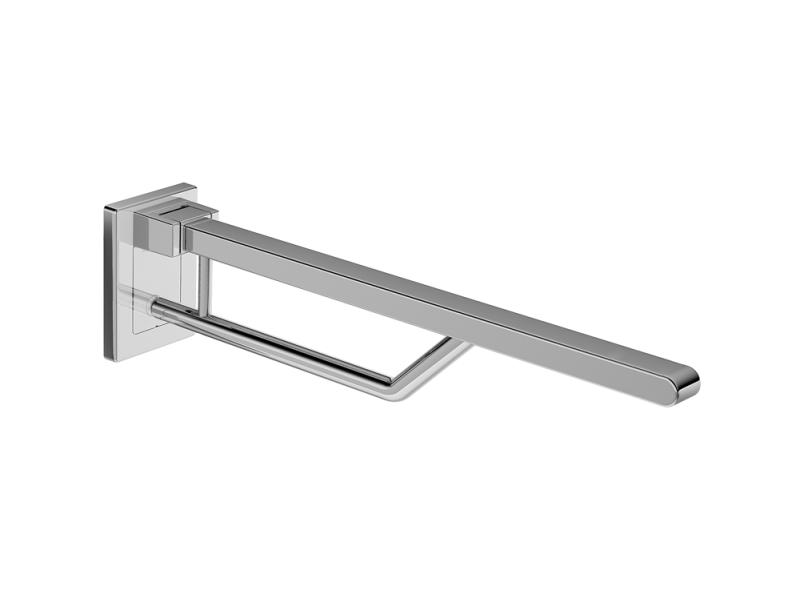

HEWI 950.50.63040 - 850 mm

Fold-up support rail Duo
- with two grip levels one above the other
- Lower rail is guided at an angle of 135° to the upper rail
- Upper rail made of square profile, 40 mm wide and 30 mm high, offers a wide support surface and large radii for comfortable gripping, serves to hold and support
- Lower rail (diameter 25 mm) is placed at a distance of 250 mm from the front edge of the upper rail and is used to keep it in place and swivel it sideways
- Projection 850 mm, wall plate 181 mm high and 130 mm wide
- Can be folded up and braked down
- made of metal, high-quality chrome-plated
- High-quality chrome-plated plastic wall plate cover
- Stable three-point attachment
- for wall mounting with concealed, corrosion-free and tested fastening material for different wall structures (to be ordered separately)
- sealing tape for sealing the fastening points is included in the delivery
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- with toilet roll holder 950.50.01150, toilet roll holder with toilet flush release 950.50.07290 (right), 950.50.07390 (left), floor supports 950.50.020XA, 950.50.025XA, 950.50.026XA and armrest 950.50.03192 can be retrofitted.
- is manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
