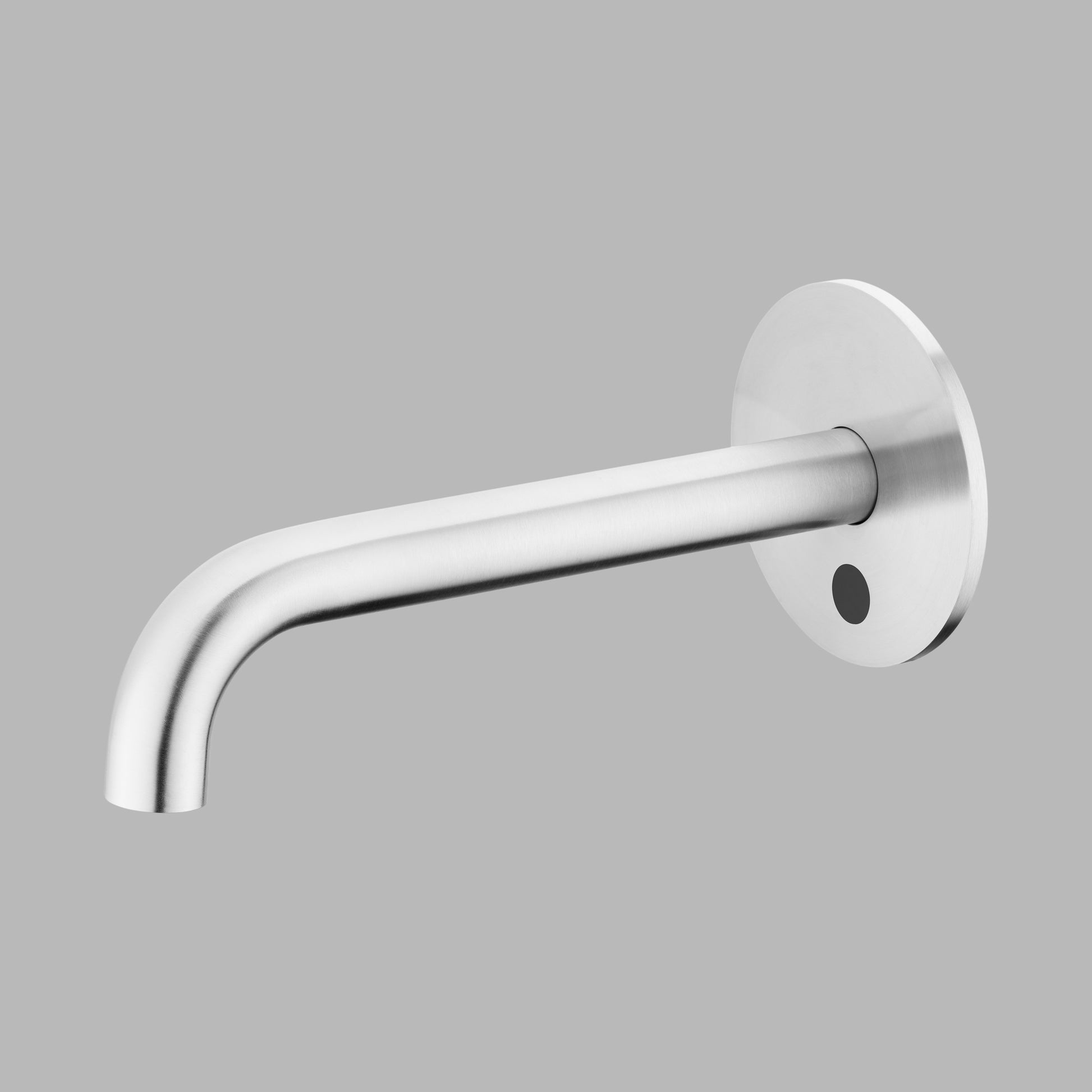

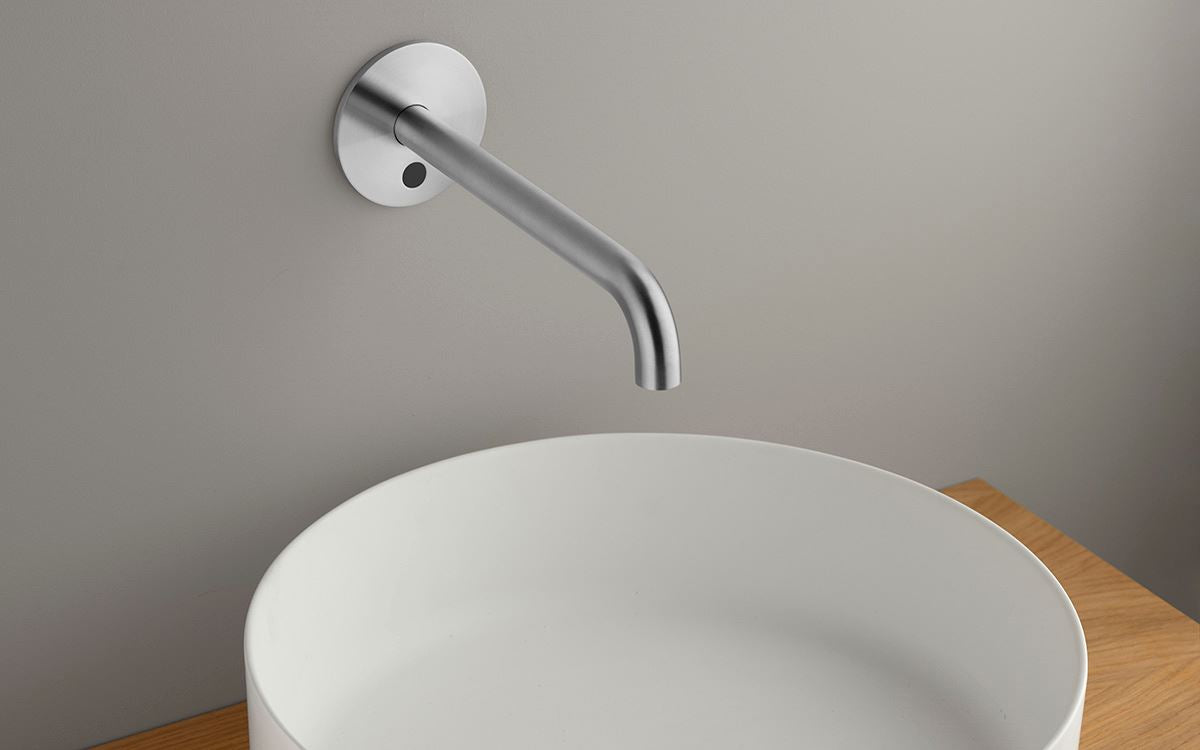

d line QST3190M

d line Qtoo infrared sensor tap for wall mounting, AISI 316 stainless steel in satin finish.

Projection: 190mm - 7 1/2"
Rose Ø90mm - 3 1/2" with integrated sensor
Built-in aerator
Max. flow rate: 5L - 1.3gpm

Sensor features:
Sensor detection distance: 50mm to 250mm
Comfort time: 2 seconds (+/- 20%)
Timeout protection: 30 seconds (+/- 20%)
Flow rate 5 L/min (others available on request)
Battery life (6 AA): 20 daily activations = 8.4 years, 150 daily activations = 4.6 years
Low battery: flashes once every 5 seconds (10 days)
Empty battery: flashes once every 5 seconds (until the battery is completely empty - and then no water supply)
Cleaning mode 60 sec.
Hygiene flush disabled
Special setting parameters on request: Operating detection distance, Timeout protection (deactivated or 1-240 sec.), Comfort time (0-100 sec.), Hygiene flush, Frequency (1 h - 72 h), Duration (1 - 240 sec.)

Mandatory accessories:
QSF01 Premix flexbox or QSF02 Single flow flexbox
QS3400 Concealed part with 1/2" connection

Optional accessories:
QSP01 Power supply for flexbox

Product care
d line products are manufactured from the highest quality AISI 316 stainless steel. Follow the instructions below to maintain the unique d line finish:

Wash the surfaces with soapy water or a mild detergent.
Always rinse thoroughly with clean water.
To complete the cleaning procedure, dry/polish the surface with a soft dry cloth.
Do not use scouring powder, steel wool, chlorine-based cleaners, or other harsh cleaning agents, as these may damage the surface.
If stains or corrosion appear on the surface, this is not due to the quality of the stainless steel, but to impurities in the environment, aggressive conditions, or incorrect or insufficient cleaning.
