d line QST3190MP5

d line Qtoo infrared sensor wall-mounted faucet, stainless steel AISI 316, satin bronze PVD.

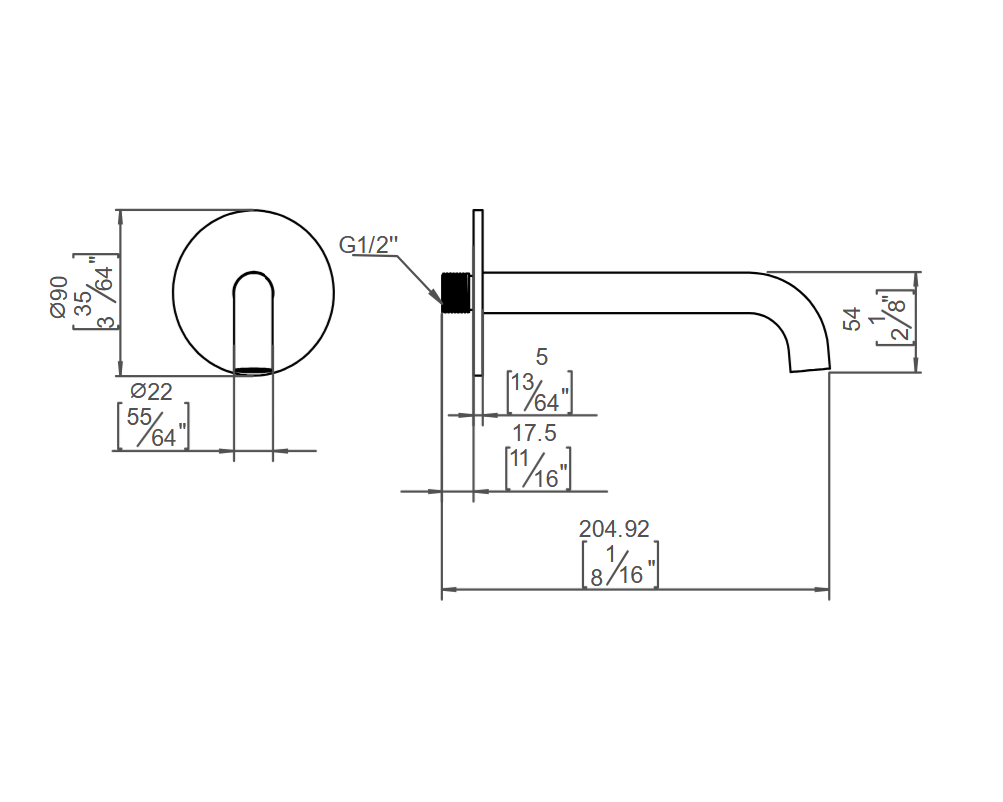

Projection: 190mm - 7 1/2"
Rose Ø90mm - 3 1/2" with integrated sensor
Built-in aerator
Max. flow rate: 5L - 1.3gpm

Sensor features:
Operating detection distance sensor: 50mm to 250mm
Comfort time: 2 seconds (+/- 20%)
Security timeout: 30 seconds (+/- 20%)
Flow rate 5 L/min (others available on request)
Battery life (6 AA): 20 daily activations = 8.4 years, 150 daily activations = 4.6 years
Low battery: 1 flash every 5 seconds (10 days)
Empty battery: 1 flash every 5 seconds (until battery is completely empty – then no water supply)
Cleaning mode 60 sec.
Hygiene flush disabled
Special setting parameters on request: Operating detection distance, Security timeout (deactivated or 1-240 sec.), Comfort time (0-100 sec.), Hygiene flush, Frequency (1 h - 72 h), Duration (1 - 240 sec.)

Mandatory accessories:
QSF01 Premix flexbox or QSF02 Single flow flexbox
QS3400 Recessed part with 1/2" connection

Optional accessories:
QSP01 Power supply for flexbox

Product care
d line products are manufactured from the highest quality AISI 316 stainless steel. To maintain the unique d line finish, please follow the instructions below:

Wash surfaces with soapy water or a mild detergent.
Always rinse thoroughly with clean water.
To complete the cleaning procedure, dry/polish the surface with a soft dry cloth.
Do not use abrasive powders, steel wool, chlorine-containing detergents or other aggressive cleaning agents, as these may damage the surface.
If stains or corrosion appear on the surface, it is not due to the quality of the stainless steel, but to impurities in the environment, aggressive conditions, or incorrect or insufficient cleaning.
