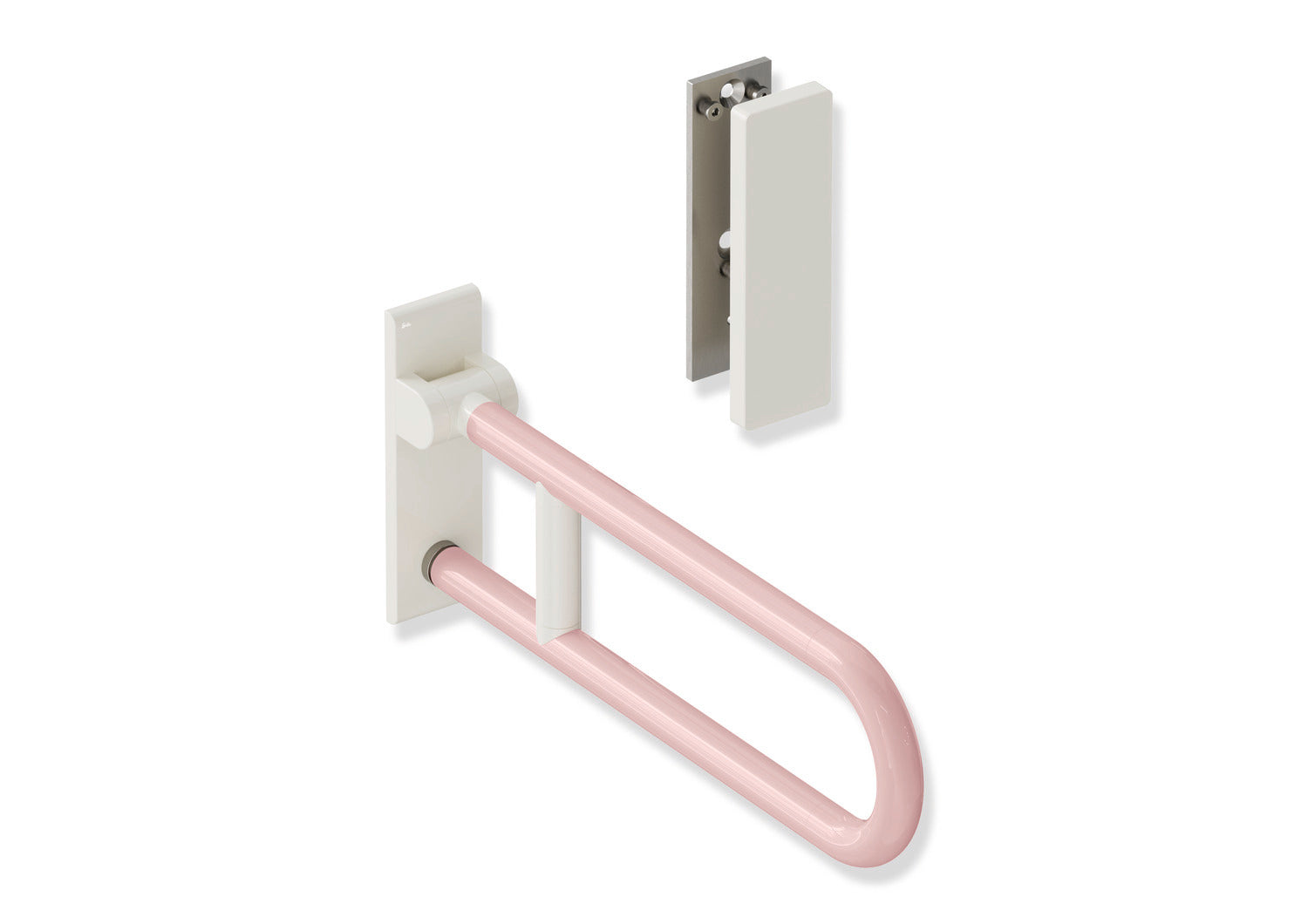

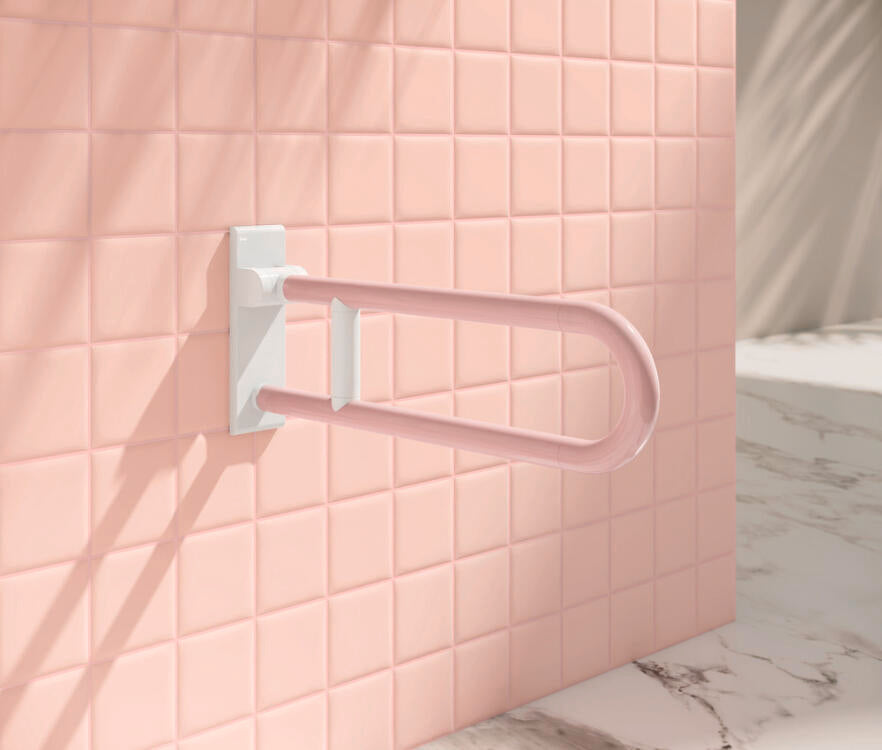

Mobile fold-up support Barbie™ x HEWI incl. mounting plate with cover
- Official Barbie™ licensed product
- Made of high-gloss polyamide
- Bracket in HEWI colours 47 (pink), wall plate, hinge and support in HEWI colours 99 (pure white)
- Incl. Barbie™ logo

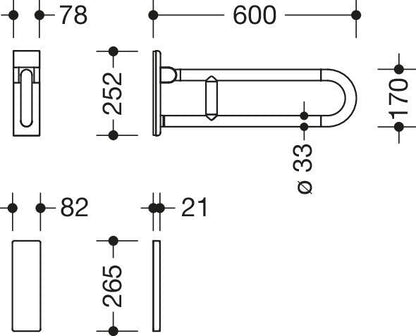

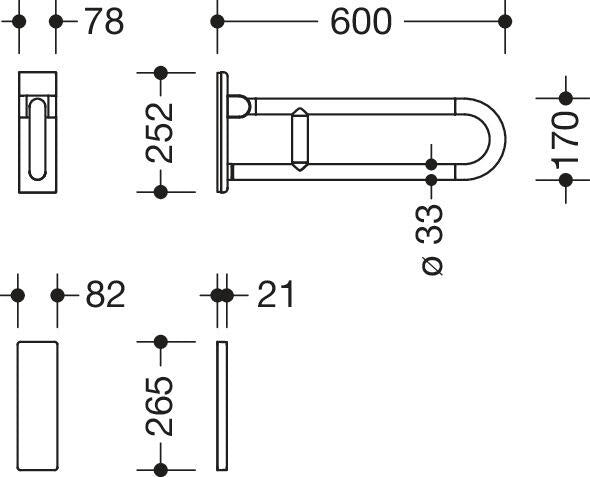

- Projection 600 mm, 252 mm wide and 78 mm high, bar diameter 33 mm
- Two parallel, superimposed bars connected by a connecting bend
- Serves for holding and supporting
- Can be folded up and braked downwards
- With continuous, corrosion-protected steel core
- Tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Is produced in accordance with CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to DIN 18040
- Mobile use

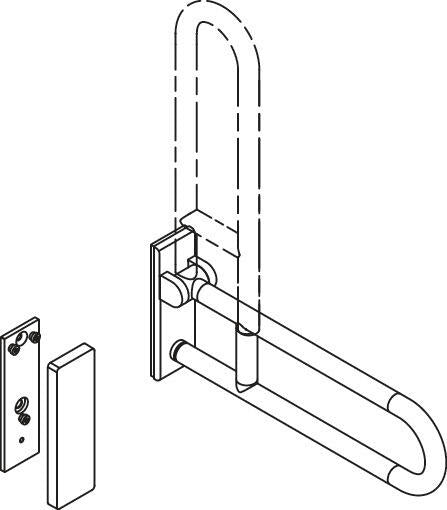

- For simple and flexible retrofitting on existing, pre-assembled mounting plate
- Tool-free and quick installation by simply hanging the fold-up support
- Secured against unintentional detachment with fastening screws
Incl. mounting plate with cover
- Rectangular mounting plate with matching, rectangular cover
- 82 mm wide, 265 mm high, 19 mm deep
- Mounting plate made of stainless steel, matt brushed
- Cover made of high-quality plastic in HEWI colours 99 (pure white)
- For mounting with corrosion-free and tested HEWI fastening material for various wall mounts (to be ordered separately)
- Sealing tape for sealing the fastening points is included in the delivery
Spécifications
| Numéro d'article | 842B801005 |
|---|---|
| Marque | HEWI |
| Poids | 5.157 kg |
| Couleur | Rose |
| Matériel | Noyau en acier + polyamide |
| Assembly | Structure |
| Collection | HEWI Barbie™ |
| Finition | Hoogglans |
