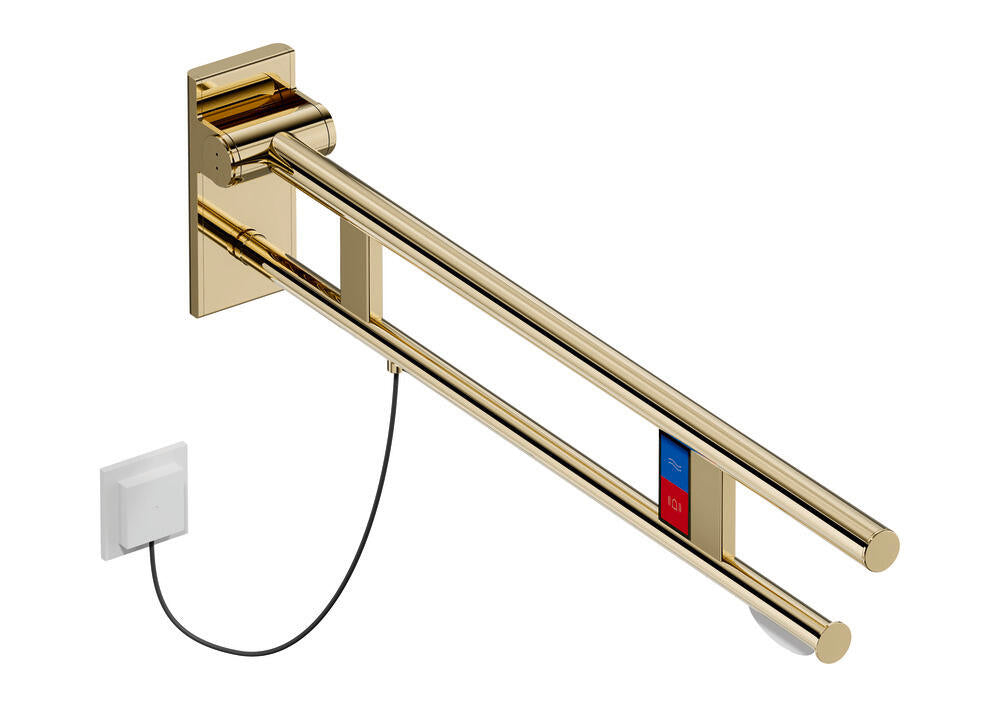

HEWI 900.50.13670 CK

Fold-up support rail Duo, Design (A), System 900
- Two parallel, superimposed, round grip sections
- with toilet roll holder and flush/function buttons (electrical version)
- left-hand version
- Can be folded upwards and braked downwards
- Blue button (wave symbol) is used to activate the toilet flush, Red button (bell symbol) is used to activate a freely definable function (the function button does not meet the requirements for an emergency call according to DIN VDE 0834-1)
- Cable with open ends for wall connection
- incl. white cover for flush-mounted box
- Control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- suitable for all standard concealed cisterns with electrical control
- Projection 850 mm, 210 mm wide and 101 mm high, Upper rail diameter 33.7 mm, Lower rail diameter 25 mm
- made of high-quality stainless steel, PVD coating
- for mounting with corrosion-free and tested HEWI fixing material for different wall constructions (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
- tested to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- is produced in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
