HEWI 801.50.100 99

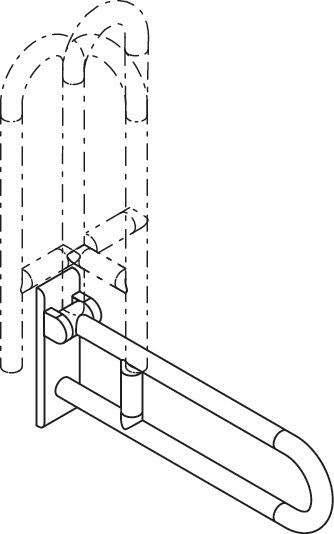

Fold-up support rail, swivel-mounted, from the 801 series
- Two parallel, superposed rails connected by a curved section
- For holding on to and providing support - with a continuous, corrosion-resistant steel core and a wall plate made of polyamide with an integrated steel core
- Can be folded up and, with braking effect, folded down and, in the folded-up position, swivelled to the left or right against the wall
- Wall mounting with HEWI-specific fastening material (to be ordered separately)
- Sealing tape for sealing the fixing points is included
- Concealed fixing
- tested to 150 kg when used with HEWI fixing materials
- Recommended maximum user weight: 150 kg
- Projection 600 mm, 259 mm wide and 78 mm high, rail diameter 33 mm
- made of high-gloss polyamide according to HEWI colour chart
- Toilet roll holder 801.50.011, WC flush actuation (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted
- manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040
