HEWI 801.35.340 95

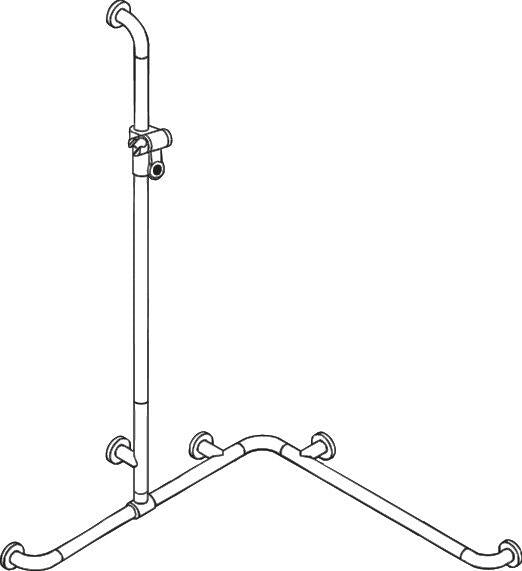

Shower and Bathtub grab bar with shower slide bar from the 801 series, Corner mounting
- Vertically and horizontally arranged, right-angled connected bars with steel mounting roses and shower head holder
with a vertical shower bar that can be moved sideways (for assembly)
- Used for holding and support in the shower and at the bathtub
- Vertical length 1250 mm, horizontal lengths (corner mounting) each 762 mm
- 89 mm deep, distance to the wall 56 mm, bar diameter 33 mm, rose diameter 70 mm
- Suitable for hand showers from various manufacturers
Shower head holder can be continuously rotated and adjusted in height after pulling out or pushing in a large lever
Conical receptacle on the shower head holder facilitates hanging up the hand shower
- with continuous, corrosion-protected steel core
- Wall mounting with wall-specific mounting material and rosettes from HEWI
Can be mounted on the left or right side
- Recommended maximum user weight: 150 kg
- made of high-gloss polyamide according to HEWI color chart
- Please note when using with suspended seats: A compatibility check is required.
- A detailed list of possible combinations of grab rails, corner supports and shower and bath grab rails with matching suspended seats can be found in our online catalog in the download section of the respective product.
