HEWI 950.50.13050 - 850 mm

HEWI 950.50.13050 - 850 mm

8429505013050

€528,70 EUR
€528,70 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 20 days

Colour: Chrome High-gloss chrome

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

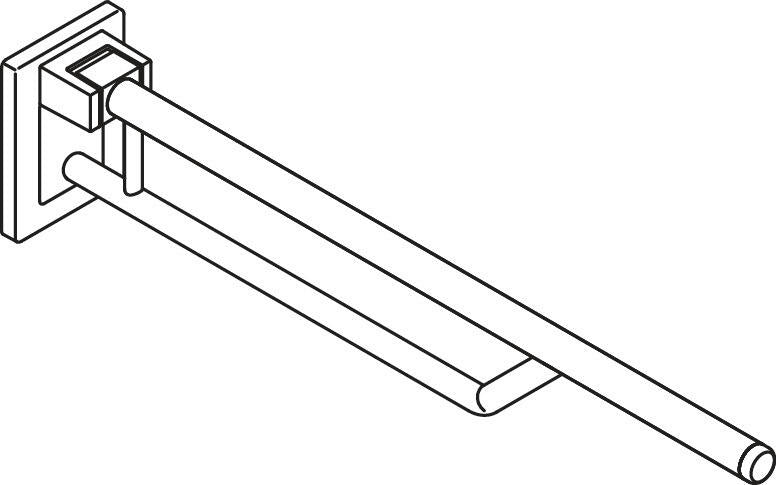

Fold-up support rail Duo System WARM TOUCH
- with two grip levels one above the other
- Lower rail is angled at 135° to the upper rail
- Upper rail (33 mm diameter) used for holding and supporting
- Lower rail (25 mm diameter) is offset by 250 mm from the front edge of the upper rail and used for holding and lateral bracing

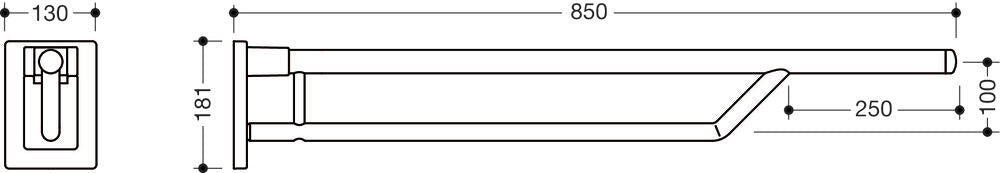

- Projection 850 mm, wall plate 181 mm high and 130 mm wide
- Can be folded upwards and braked downwards
- Made of high-quality chrome-finish coated polyamide with a warm feel
- with continuous, corrosion-protected steel core and integrated wall plate made of steel with a cover made of chrome-finish coated polyamide
- Stable three-point fixing
- for wall mounting with concealed, corrosion-free and tested HEWI fixing materials for different wall structures (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- tested to 150 kg when used with HEWI fixing materials
- Recommended maximum user weight: 150 kg
- can be retrofitted with toilet roll holder 950.50.01050, toilet roll holder with toilet flush release 950.50.07090 (right), 950.50.07190 (left), and floor supports 950.50.020XA, 950.50.025XA and 950.50.026XA.
- manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to DIN 18040, ÖNORM B1600/1601 and SIA 500

Specifications

Article number 8429505013050
Brand HEWI
Weight 5.9 kg
Colour Chrome
Material Steel core+polyamide
Assembly Surface mounted
Finish Verchroomd hoogglans
