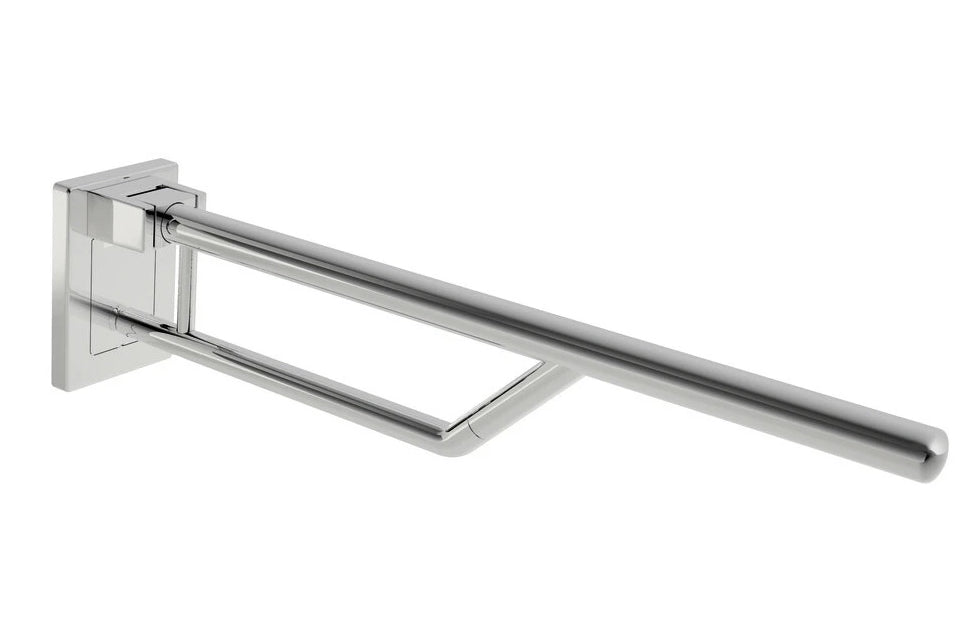

HEWI 950.50.13050 - 850 mm

Fold-up support rail Duo System WARM TOUCH
- with two grip levels one above the other
- Lower rail is angled at 135° to the upper rail
- Upper rail (33 mm diameter) used for holding and supporting
- Lower rail (25 mm diameter) is offset by 250 mm from the front edge of the upper rail and used for holding and lateral bracing
- Projection 850 mm, wall plate 181 mm high and 130 mm wide
- Can be folded upwards and braked downwards
- Made of high-quality chrome-finish coated polyamide with a warm feel
- with continuous, corrosion-protected steel core and integrated wall plate made of steel with a cover made of chrome-finish coated polyamide
- Stable three-point fixing
- for wall mounting with concealed, corrosion-free and tested HEWI fixing materials for different wall structures (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- tested to 150 kg when used with HEWI fixing materials
- Recommended maximum user weight: 150 kg
- can be retrofitted with toilet roll holder 950.50.01050, toilet roll holder with toilet flush release 950.50.07090 (right), 950.50.07190 (left), and floor supports 950.50.020XA, 950.50.025XA and 950.50.026XA.
- manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to DIN 18040, ÖNORM B1600/1601 and SIA 500
