HEWI 801.50.120 95

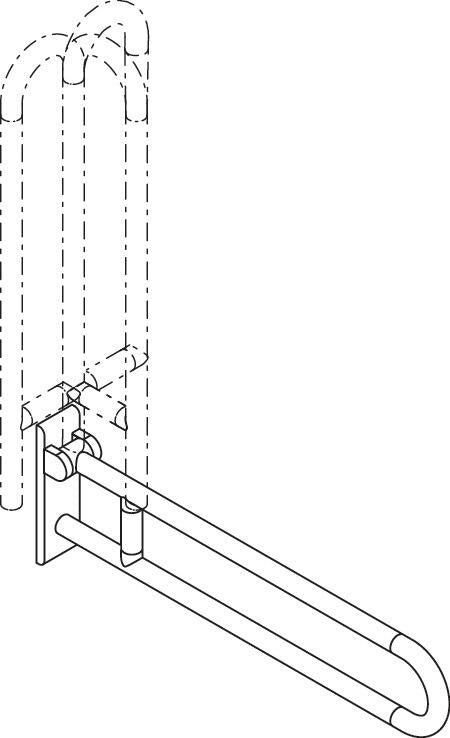

Fold-up support rail, swivelling from the 801 series
- Two parallel, superimposed rails connected by a connecting bend
- is used for holding and supporting - with continuous, corrosion-resistant steel core and wall plate made of polyamide with integrated steel core
- Can be folded up and braked down and rotated to the left or right towards the wall when folded up
- Wall mounting with wall-specific HEWI mounting material (to be ordered separately)
- sealing tape for sealing the mounting points is included
- Concealed mounting
- tested up to 150 kg when used with HEWI mounting material
- Recommended maximum user weight: 150 kg
- Projection 850 mm, 259 mm wide and 78 mm high, rail diameter 33 mm
- made of high-gloss polyamide according to the HEWI colour chart
- Toilet roll holder 801.50.011, WC flushing device (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted
- has been manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 concerning medical devices
- Meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
