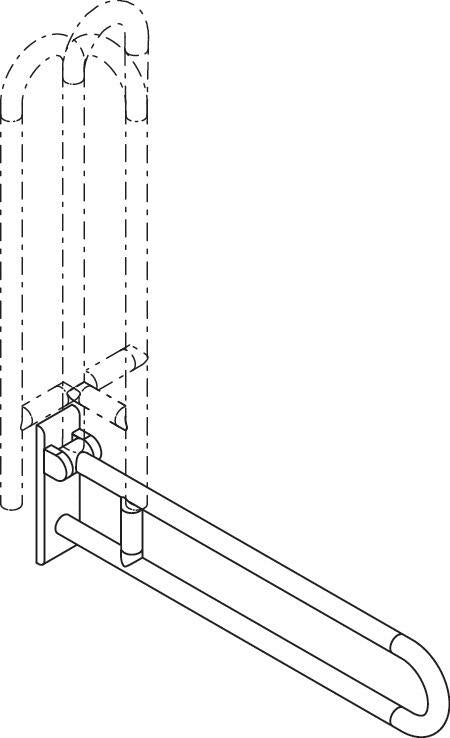

Fold-up support rail, swivelling, from the 801 series
- Two parallel, superimposed rails connected by a connecting bend
- used for holding and support - with continuous, corrosion-resistant steel core and wall plate made of polyamide with integrated steel core
- Can be folded upwards and braked downwards, and when folded up, can be swivelled left or right to the wall
- Wall mounting with HEWI-specific fastening material (to be ordered separately)
- Sealing tape for sealing the mounting points is included in the delivery
- Concealed fastening
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Projection 850 mm, 259 mm wide and 78 mm high, bar diameter 33 mm
- made of high-gloss polyamide according to the HEWI colour chart
- Toilet roll holder 801.50.011, toilet flush device (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted
- manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
Specifikace
| Číslo položky | 84280150120.86 |
|---|---|
| Značka | HEWI |
| Hmotnost | 5.086 kg |
| Barva | Písek |
| Materiál | Ocelové jádro+polyamid |
| Montáž | Povrchová montáž |
| Kolekce | HEWI Serie 801 |
| Povrchová úprava | Hoogglans |
