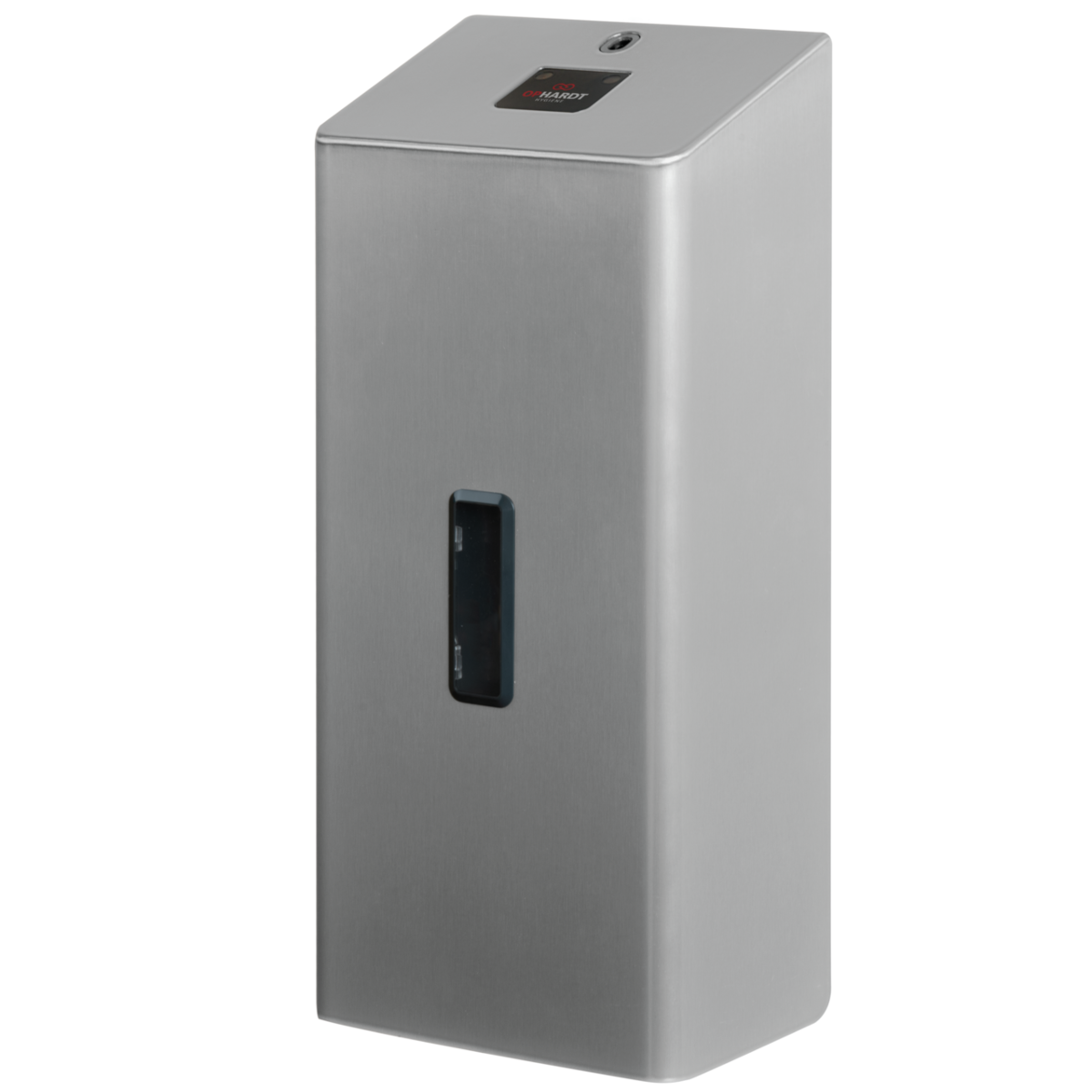

SanTRAL® Plus UDU 11 T E/D Steel Touch (ST) SFTS, touch-free universal dispenser with spray pump for dispensing alcohol-based disinfectant, 1200 ml, polished stainless steel, with anti-fingerprint coating, removable refillable container with plastic pump, with CleanTip technology (no dripping), adjustable dosage of 0.6 / 1.0 / 1.4 ml/stroke, lockable, with viewing window to check the filling level, housing with slanted roof to prevent foreign objects from being placed on the dispenser, powered by 4 alkaline D batteries
Smart From The Start: feedback and monitoring function can be activated at any time.
| Drive: | X10 system, quiet operating noise (quiet drive+) |
|---|---|
| Quantity (pcs) / box: | 1 |
| Lockable: | yes |
| Battery: | 4x alkaline D batteries, 1.5 V, replaceable, non-rechargeable |
| Operating mode: | contactless |
| Housing: | stainless steel, polished with anti-fingerprint coating (Steel Touch) |
| CE marking: | EN 300328 WLAN integration test, EN 300330 NFC integration test, ETSI EN 62311.2008 EMF, ETSI EN 301489-1 EMC |
| Conformity: | RoHS |
| Dosing pump: | durable plastic spray pump |
| Dosage: | 0.6 / 1.0 / 1.4 ml/stroke |
| Electronics: | PCB with sensors, WiFi module 802.11 b/g/n (frequency range: 2,400 MHz - 2,483.5 MHz; WPA and WPA2) and Bluetooth LE (frequency: 2.404 GHz - 2.480 GHz) |
| Firmware: | over-the-air (OTA) updates and configuration |
| Warranty: | 5 years |
| Quantity (pcs) / EURO pallet: | 209 |
| Material: | stainless steel |
| Brands: | SanTRAL® Plus |
| With drip tray: | no |
| Mounting: | wall mounting with 4 screws and plugs, recommended distance to washbasin at least 20 cm |
| Cleaning: | manual disinfection by wiping, not dishwasher safe, not autoclavable |
| Smart function: | smart |
| Lock: | SanTRAL anti-vandalism lock, plastic |
| Software: | Dispenser with integrated smart module for automatic detection of filling level possible using weighing sensors and connection to kanary and third-party platforms |
| Product type: | hygiene dispenser |
| Voltage: | 6 Volt |
| Drive type: | batteries |
| Type of dispenser: | refillable dispenser |
| Filling volume (ml): | 1,200 ml |
| Filling material: | disinfectant |
Specifications
| Article number | 814S1425072 |
|---|---|
| Brand | OPHARDT Hygiene |
| Contents | 1001-1300 ml |
| Weight | 2.784 kg |
| Operation | Touchless |
| Colour | Stainless steel |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Power suply | Batterijen |
| Type of refill | Desinfectiemiddel, Navulbare systeem |
| Collection | SanTRAL Plus |
| Finish | Anti-vingerafdruk-coating |
