DELABIE F5ST2047

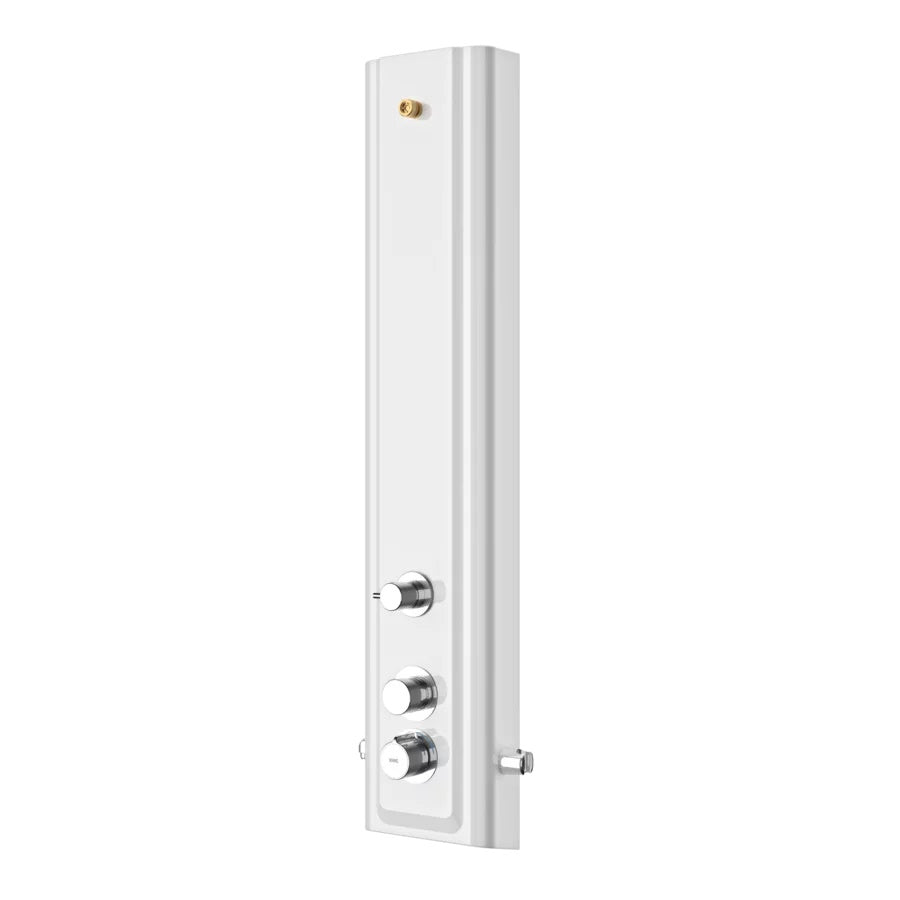

F5S-Therm shower panel made of mineral granite for surface mounting with self-closing thermostat mixer DN 15 and diverter for overhead and hand showers. Hydraulically controlled, for connection to hot and cold water. Self-closing FRAMIC mixing cartridge, thermostat and pre-assembled hygienic unit including sensor with control electronics for automatic hygienic flushing, program-controlled thermal disinfection (additional bypass cartridge with solenoid valve required) and storage of statistical data. Self-closing FRAMIC cartridge, low-maintenance and stagnation-free, with ceramic disc technology, self-closing, independent of flow pressure thanks to separate chamber design. Flow time continuously adjustable. Thermostat with metal handle with adjustable and anti-rotation protected temperature stop and possibility for manual thermal disinfection. Fully made of metal, visible parts polished and chrome-plated. Connection for separately required KWC shower head DN 15 with pre-assembled flow regulator 9.0 l/min, housing made of high-quality functional surface, resin-bonded mineral granite MIRANIT, with non-porous, smooth surface (temperature resistant up to 80 °C), alpine white colour. Hand shower connection on the left and chrome-plated plastic hand shower holder on the right, both pre-assembled on the side. Connection hoses with lockable flow regulators with backflow limiter and sieve. Activated hygienic flushing, fixed interval time 24 hours. With option for parameterization and communication via optional bidirectional remote control. Hygienic unit optionally for battery operation with 6 V lithium battery (CR-P2) per fitting or separate power supply via mains adapter 6.75 V / 12 V DC.

Housing dimensions 235 x 1160 x 100 mm (W x H x D)

Shower head, hand shower with shower hose and battery compartment including battery or mains adapter plus extension cable must be ordered separately.
