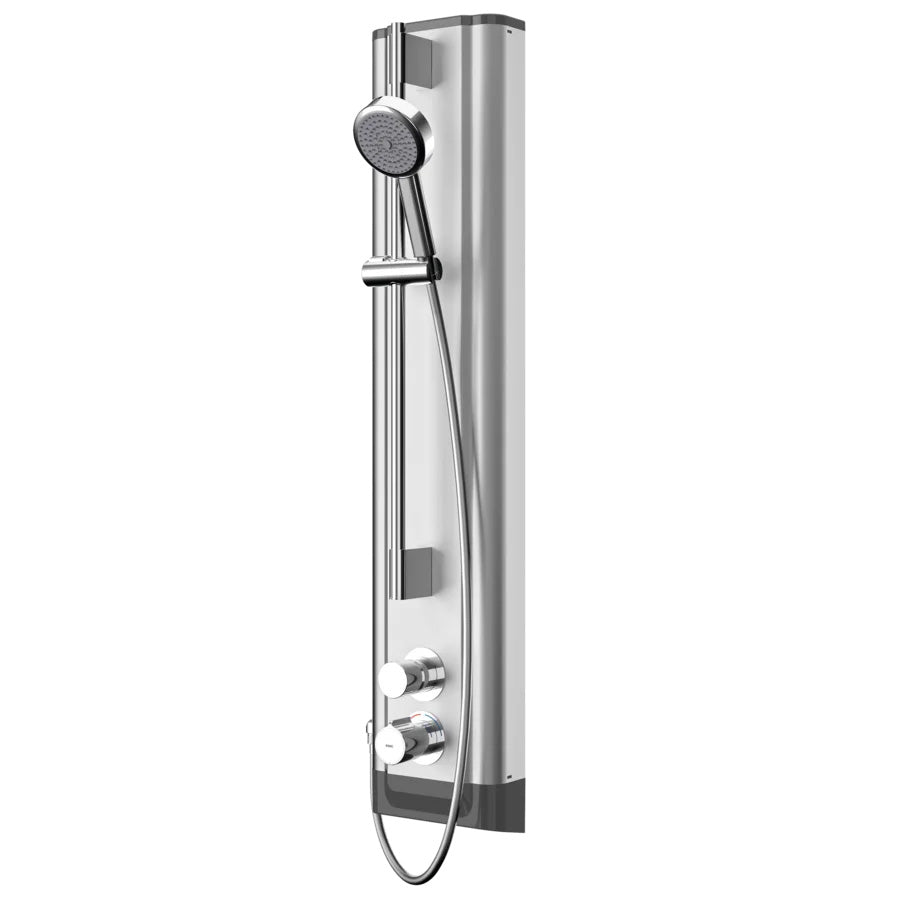

DELABIE F5ST2021

F5S-Therm stainless steel shower panel for exposed mounting with self-closing thermostatic mixer DN 15 and connection for hand shower head. Hydraulically controlled, for connection to hot and cold water. Functional block with integrated self-closing FRAMIC cartridge, thermostat and pre-assembled hygienic unit including sensor with control electronics for performing an automatic hygienic flush, program-controlled thermal disinfection (additional bypass cartridge with solenoid valve required) and storage of statistical data. Self-closing FRAMIC cartridge, low-maintenance and stagnation-free, with ceramic disc technology, self-closing, independent of flow pressure thanks to separate chamber design. Flow time continuously adjustable. Thermostat with metal handle with adjustable and anti-twist secured temperature stop and option for manual thermal disinfection. Completely made of metal, visible parts polished and chrome-plated. Pre-assembled shower rail, with height-adjustable hand shower holder and chrome-plated plastic hand shower, shower head with rain spray, diameter 110 mm, shower hose 900 mm, stainless steel housing with high-quality functional surface and plastic cover caps. Connection hoses with lockable flow regulators with backflow preventer and sieve. Activated hygienic flush, fixed interval time 24 hours. With option for parameterization and communication via optional bidirectional remote control. Hygienic unit optionally for battery power with 6 V lithium battery (CR-P2) per faucet or separate power supply via power adapter 6.75 V / 12 V DC.

Housing dimensions 235 x 1160 x 90 mm (W x H x D)

Battery compartment incl. battery or power supply incl. extension cable must be ordered separately.
