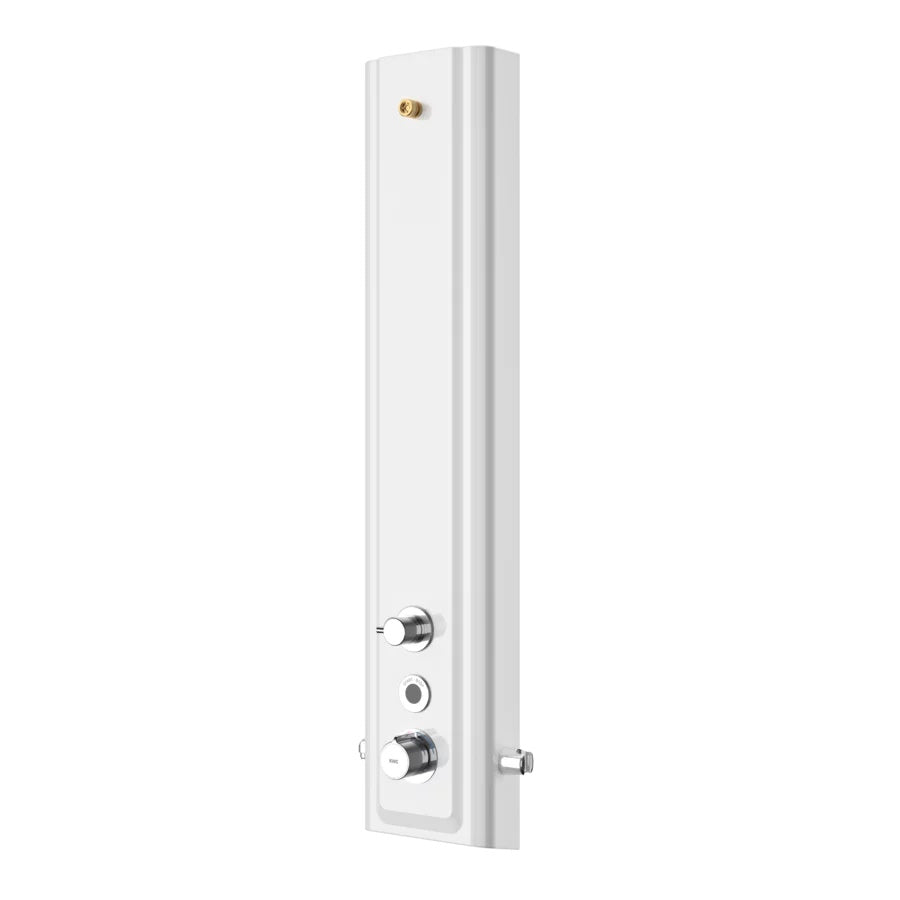

DELABIE F5ET2050

F5E-Therm Shower panel made of mineral granite for surface mounting with thermostatic mixer and diverter between overhead and hand shower. Electronically controlled, for connection to hot and cold water. Function block with integrated cartridge equipped with solenoid valve, thermostat and device for optional bypass cartridge equipped with solenoid valve for programmed thermal disinfection. Thermostat with metal handle with adjustable and anti-rotation protected temperature stop and possibility for manual thermal disinfection. Fully made of metal, visible parts polished and chrome-plated. Connection piece for separately required KWC shower head DN 15 with pre-assembled flow regulator 9.0 l/min, housing made of high-quality functional surface, of resin-bonded mineral granite MIRANIT, with pore-free, smooth surface (temperature-resistant up to 80 °C), colour alpine white. Hand shower connection on the left and chrome-plated plastic hand shower holder on the right, both pre-assembled on the side. Touch sensor including control electronics with start/stop function and cleaning override. Connection hoses with lockable flow regulators with backflow limiter and strainer. Activated hygienic flush 24 hours after last use and storage of statistical data. With possibility for parametrization and communication via optional bidirectional remote control. Hygienic unit optionally for battery power with 6 V lithium battery (CR-P2) per fitting or separate power supply via mains adapter 6.75 V / 12 V DC or AQUA 3000 open system accessories.

Housing dimensions 235 x 1160 x 100 mm (W x H x D)

Shower head, hand shower with shower hose and battery compartment including battery or mains adapter plus extension cable must be ordered separately.
