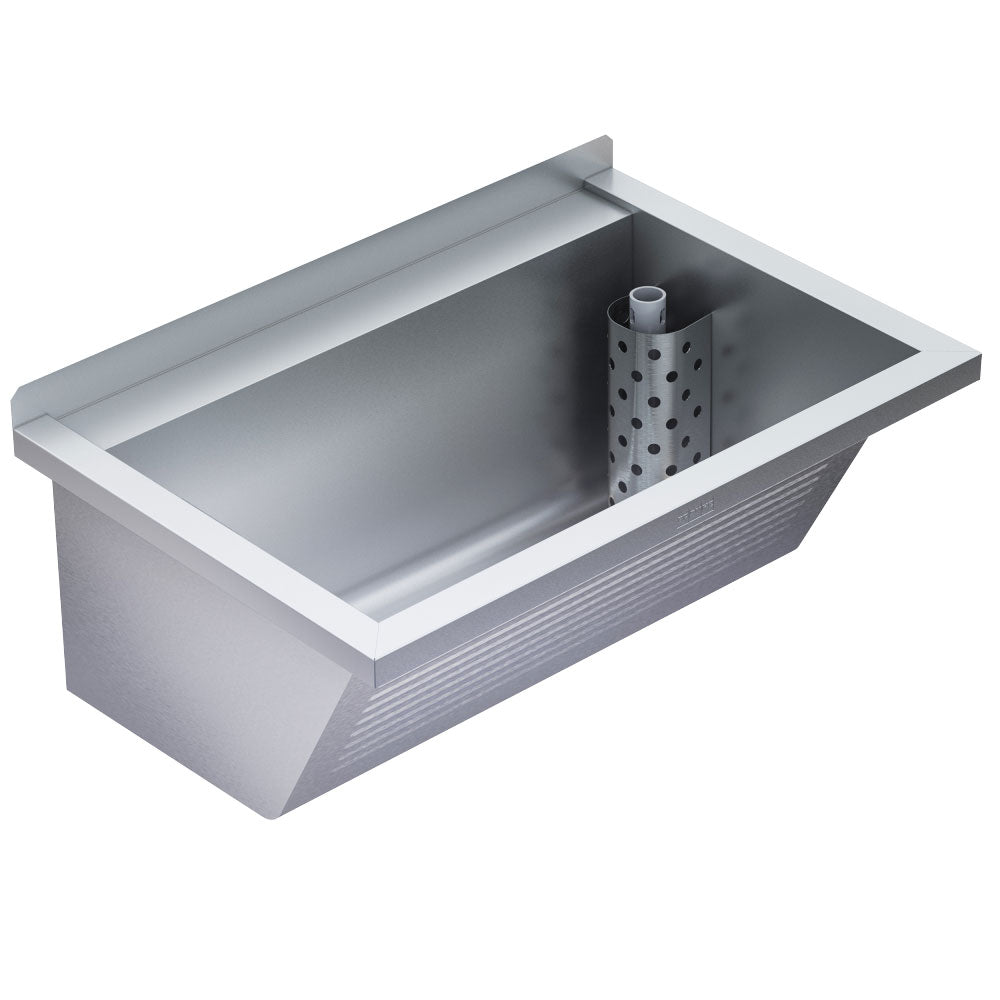

DELABIE BS314N

SIRIUS wall-mounted utility sink, stainless steel, satin finish, material thickness 0.8 mm / side panels 1.2 mm, side panels with integrated wall brackets, seamlessly welded, front with longitudinal ribbing, lowered tap ledge 70 mm, without overflow, 40 mm upstand, drain on the right, G 1 1/2 B plastic plug waste, removable corner protection plate, includes mounting material.

Dimensions 750 x 360 x 500 mm (W x H x D)
Bowl dimensions 670 x 310 x 390 mm (W x H x D)

gross weight 9.90 kg
material stainless steel
material code 1.4301 Chrome Nickel steel V2A
net weight 8.90 kg
total depth 500.00 mm
total height 367.00 mm
total width 750.00 mm
type of mounting wall mounting
bowl - bowl depth 310.00 mm
bowl - depth 390.00 mm
bowl - width 670.00 mm
overflow overflow pipe
tap ledge yes
drain size DN 40
bowl finish SATIN-FINISHED
type of waste kit overflow pipe
waste channel no
splash back height 40.00 mm
outlet diameter G 1 1/2 B
number of waste holes 1
bowl construction square corner
brushes WITHOUT BRUSHES
drainer or shelf no
grid no
ribbing yes
mud catch tank no
mud catch basket no
type of utility sink multi-purpose sink
mud catch basket no
