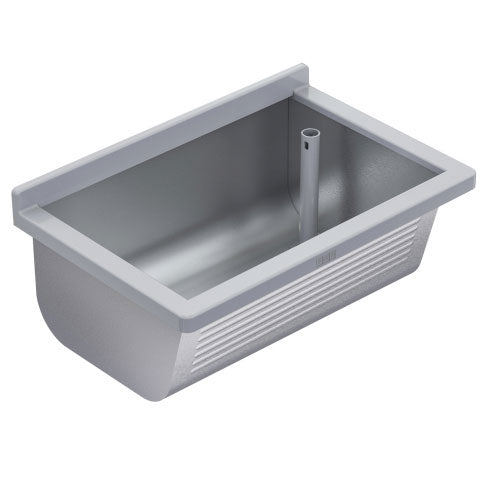

DELABIE BS312N

Wall-mounted wash trough, stainless steel, surface satin finished, material thickness wash trough 0.8 mm / side panels 1.2 mm, side panels with integrated wall mounting brackets, seamlessly welded, front with longitudinal ribbing, without tap ledge, without overflow, with grey plastic

bumper strip, 43 mm upstand at rear, drain on the right, waste valve
G 1 1/2 B made of plastic, including fixing material.
Dimensions 700 x 328 x 460 mm (W x H x D)
Bowl dimensions 613 x 285 x 398 mm (W x H x D)

Material code 1.4301 Chrome Nickel Steel V2A
Overall depth 460.00 mm
Overall height 328.00 mm
Overall width 700.00 mm
Type of mounting Wall mounting
Bowl - bowl depth 285.00 mm
Bowl - depth 398.00 mm
Bowl - width 613.00 mm
Overflow overflow pipe
Tap ledge No
Drain dimensions DN 40
Bowl finish SATIN-FINISHED
Type of waste kit Grille overflow pipe
Waste channel No
Upstand height 45.00 mm
Outlet diameter G 1 1/2 B
Number of drain holes 1.00000
Number of wash stations 1.00000
Bowl construction Square corner
Brushes WITHOUT BRUSHES
Draining board or shelf No
Grille No
Groove Yes
Sludge trap No
Sludge trap basket No
Type of utility sink Multifunctional sink
Sludge trap basket No
ATT-WS-TYPEWATCON 20191231.00000
