HEWI 950.50.63140 - 850 mm

Name: HEWI 950.50.63140 - 850 mm
Brand: HEWI Heinrich Wilke GmbH
SKU: 8429505063140
Price: 621.00 EUR
Availability: InStock

Barrier-free HEWI

1 1

SKU: 8429505063140

Mandatory products

€621,00 EUR

Sale Sold out

Shipping calculated at checkout.

Delivery time: 20 days

Color: Chrome High-gloss chrome

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

Mobile hinged support rail Duo

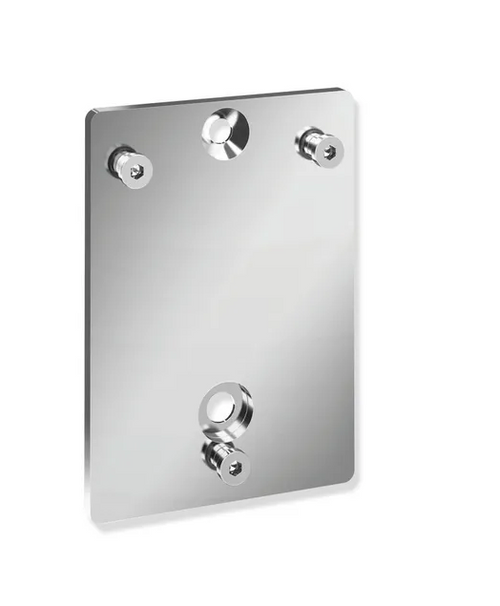

- for simple and flexible retrofitting on existing, pre-mounted mounting plate: 950.50.01440, must be ordered separately
- can be used flexibly
- with two gripping levels arranged one above the other
- Lower rail is angled at 135° to the upper rail
- Upper rail of square profile, 40 mm wide and 30 mm high, offers a wide support surface and large radii for comfortable gripping, serves for holding on and supporting
- Lower rail (diameter 25 mm) is positioned at a distance of 250 mm from the front edge of the upper rail and is used for holding on and swinging to the side
- Projection 850 mm, mount 181 mm high and 130 mm wide
- Can be folded upwards and downwards with a brake
- made of metal, high-quality chrome-plated
- Wall plate cover made of chrome-look coated polyamide
- Fast installation without tools thanks to simple, short suspension
- Secured against unintentional removal
- Unlocking for flexible use by means of spring operation
- tested to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- can be retrofitted with toilet roll holder 950.50.01150, toilet roll holder with toilet flush mechanism 950.50.07290 (right), 950.50.07390 (left), floor supports 950.50.020XA, 950.50.025XA, 950.50.026XA and armrest 950.50.03192.
- produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to DIN 18040, ÖNORM B1600/1601 and SIA 500

Specifications

Article number	8429505063140
Brand	HEWI
Weight	6.7 kg
Colour	Chrome
Material	Metal
Assembly	Mobile
Finish	High-gloss chrome
