HEWI 900.50.14070 CK - 850 mm

Name: HEWI 900.50.14070 CK - 850 mm
Brand: HEWI Heinrich Wilke GmbH
SKU: 8429005014070.CK
Price: 1313.60 EUR
Availability: InStock

Barrier-free

1 1

SKU: 8429005014070.CK

HEWI System 900 →

€1.313,60 EUR

Sale Sold out

Shipping calculated at checkout.

Delivery time: 45 days

Color: Brass Glossy PVD coating

Returns

❌This product cannot be returned.

This product is ordered and manufactured especially for you. Once production or processing has begun, the order cannot be cancelled and the product cannot be returned.

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

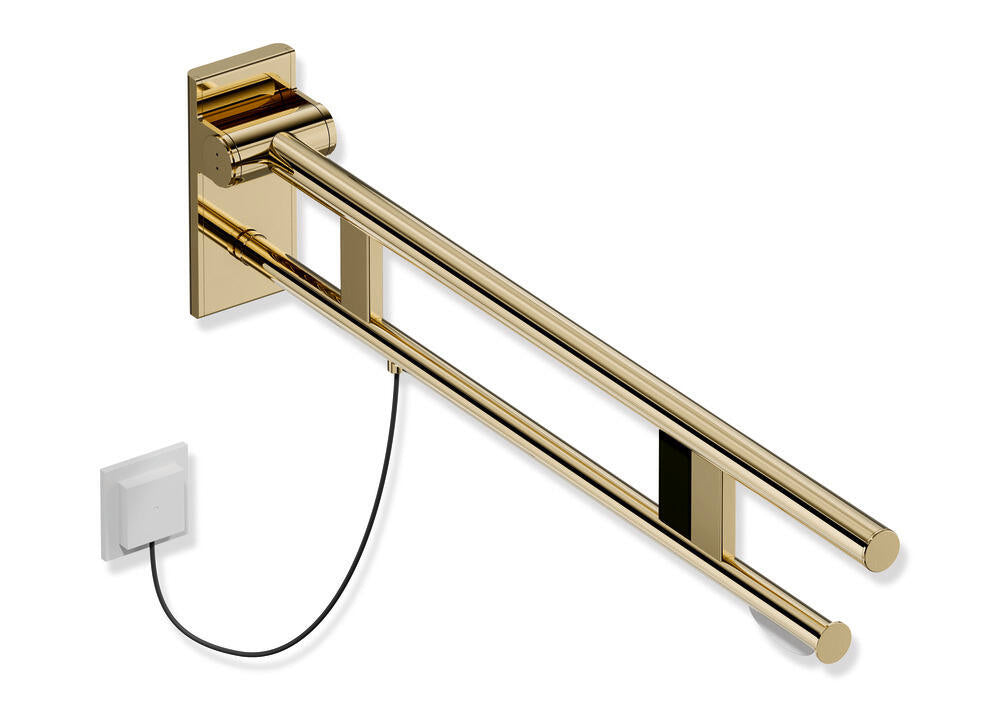

Duo hinged support rail, Design (A), System 900
- Two parallel, round gripping levels arranged on top of each other
- with toilet roll holder and flush/function buttons (electric version)
- right-hand version
- can be folded upwards and folded downwards with braking mechanism
- Blue button (wave symbol) is used to activate the toilet flush, Red button (bell symbol) is used to activate a freely definable function (the function button does not meet the requirements for an emergency call in accordance with DIN VDE 0834-1)
- Cable with free cable ends for wall connection
- incl. white cover for flush-mounted box
- Control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- suitable for all standard flush-mounted cisterns with electrical operation
- Projection 850 mm, 210 mm wide and 101 mm high, Diameter of top rail 33.7 mm, Diameter of bottom rail 25 mm
- made of high-quality stainless steel, PVD-coated
- for mounting with corrosion-resistant and tested HEWI fixing materials for different wall structures (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
- tested up to 150 kg when used with HEWI fixing materials
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500

Specifications

Article number	8429005014070.CK
Brand	HEWI
Weight	5.56 kg
Colour	Brass
Material	Stainless steel
Assembly	Surface mounted
Power suply	Netvoeding
Collection	HEWI Systeem 900
Finish	Glossy PVD coating
