HEWI 801.50.110 95 - 700 mm

Barrier-free EHR
  • 801.50.110
1 4

SKU: 84280150110.95

HEWI Series 801 →
€653,70 EUR
€653,70 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 20 days

Color: Stone grey High-gloss

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

Hinged support rail, rotatable, from the 801 series
- Two parallel, vertically arranged bars connected by a connecting bend
- used for holding and support - with continuous, corrosion-resistant steel core and wall plate made of polyamide with integrated steel core

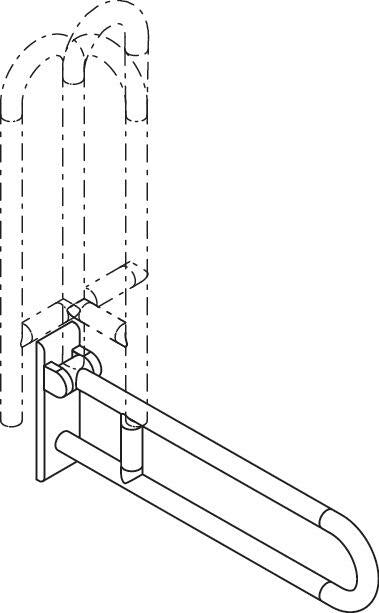

- Can be folded upwards and folded downwards with a brake, and can be swung to the left or right towards the wall when in the folded-up position
- Wall mounting with wall-specific HEWI mounting material (to be ordered separately)
- sealing tape for sealing the mounting points is included in the scope of delivery
- Concealed fixing
- tested to 150 kg when used with HEWI mounting material
- Recommended maximum user weight: 150 kg

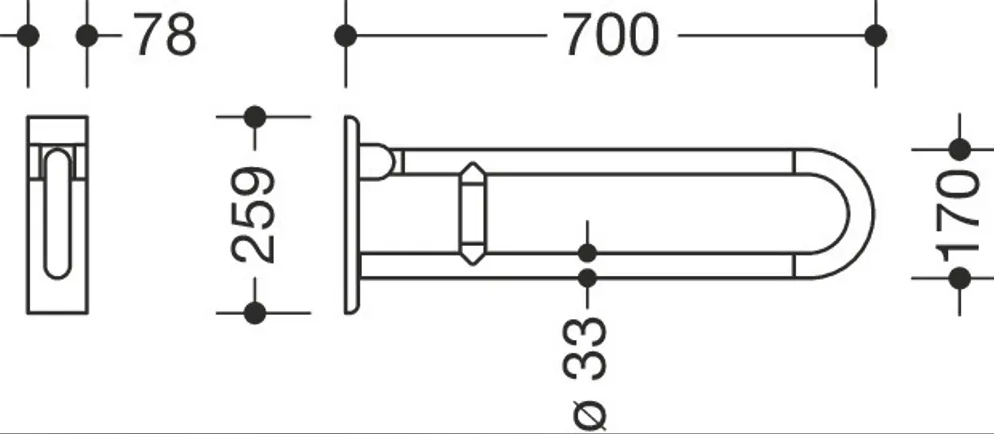

- Projection 700 mm, 259 mm wide and 78 mm high, bar diameter 33 mm

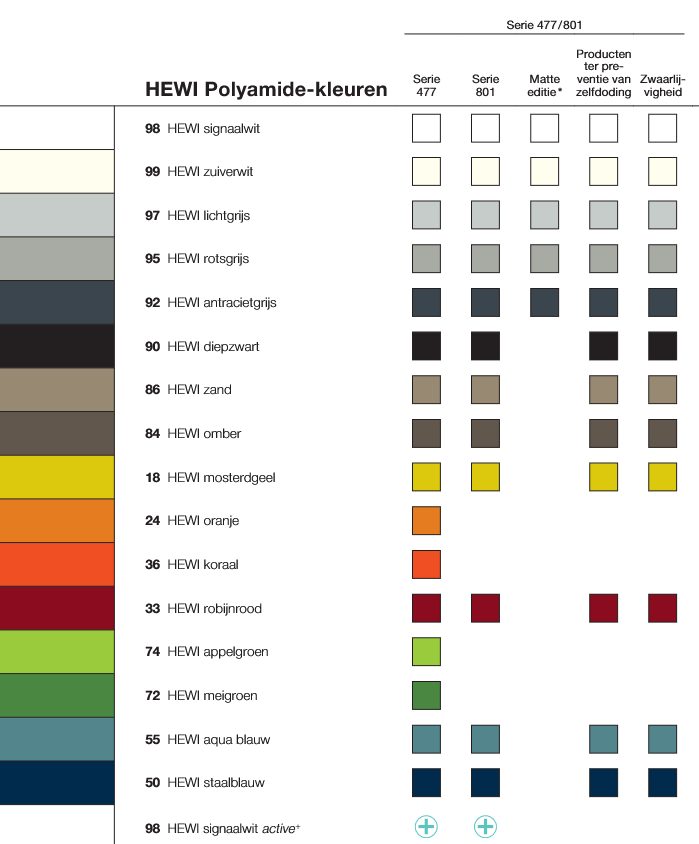

- made of high-quality polyamide according to HEWI colour chart
- Toilet roll holder 801.50.011, WC flush mechanism (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted
- produced in accordance with CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to ÖNORM B1600/1601 and SIA 500

Specifications

Article number 84280150110.95
Brand HEWI
Weight 4.569 kg
Colour Stone grey
Material Steel core+polyamide
Assembly Surface mounted
Collection HEWI Serie 801
Finish High-gloss
