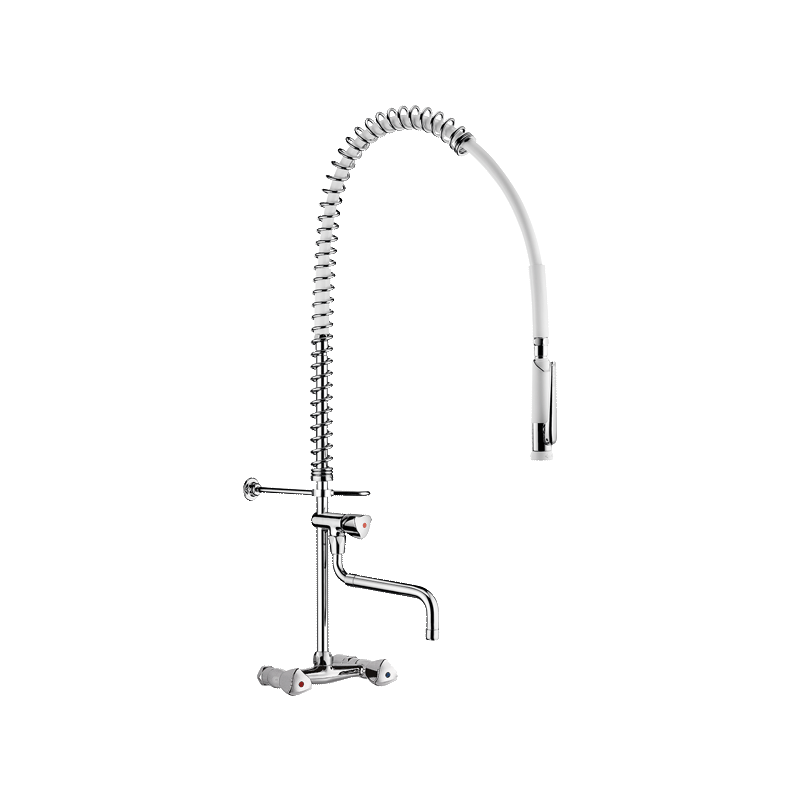

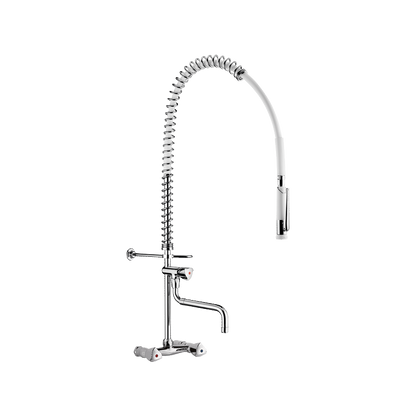

Wall-mounted pre-rinse unit with mixer tap
With pot filler and swivel telescopic spout
Complete pre-rinse unit with pot filler, suitable for intensive use in professional kitchens.
Wall-mounted mixer tap F3/4" with 150 mm centre distance, including:
- Operating mechanisms with handles.
- Check valves integrated into the mixer tap.
Pot filler with swivel telescopic spout L.200 mm - 290 mm.
- Flow rate 20 l/min at the outlet.
- Operating mechanism with handle.
White hand spray gun with adjustable jet, flow rate 9 l/min at the outlet (ref. 433000).
Anti-limescale spray head with shock-resistant end.
Reinforced white flexible hose L.0.95 m suitable for the food industry.
3/4" stainless steel column.
Adjustable wall mounting.
Stainless steel guide spring.
30-year warranty.

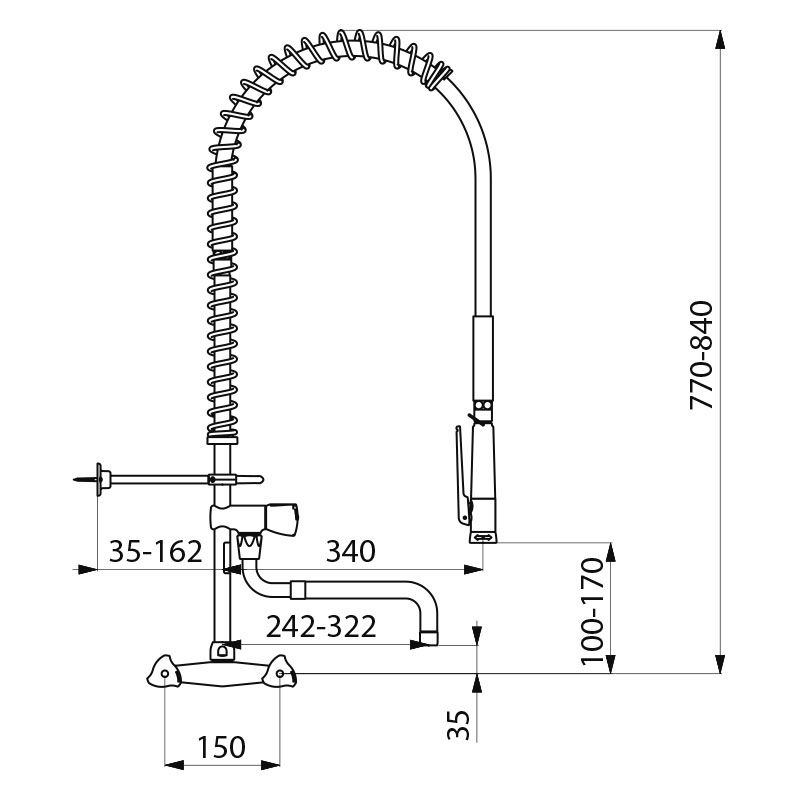

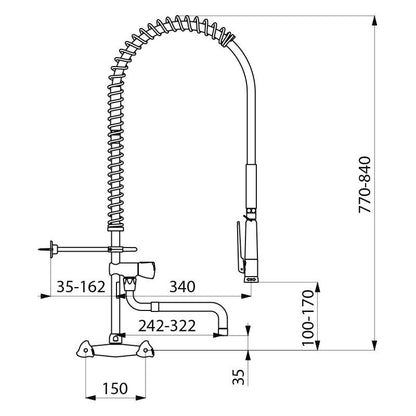

| Connection | F3/4" |
| Height | 770-840 mm |
| Spout height | Spray gun: 100-170 mm |
| Flow rate | 20 l/min with pot filler; 9 l/min with spray gun |
| Distance to wall | 35-162 mm |
| Finish | Stainless steel |
| Standards and certificates |

|
| Warranty |  |
| Repair warranty |  |
Specifications
| Article number | 8146G6432 |
|---|---|
| Brand | Delabie |
| Weight | 5.262 kg |
| Operation | 2-greeps |
| Colour | Stainless steel |
| Material | Stainless steel |
| Assembly | Wall-mounted |
| Finish | Gepolijst |
