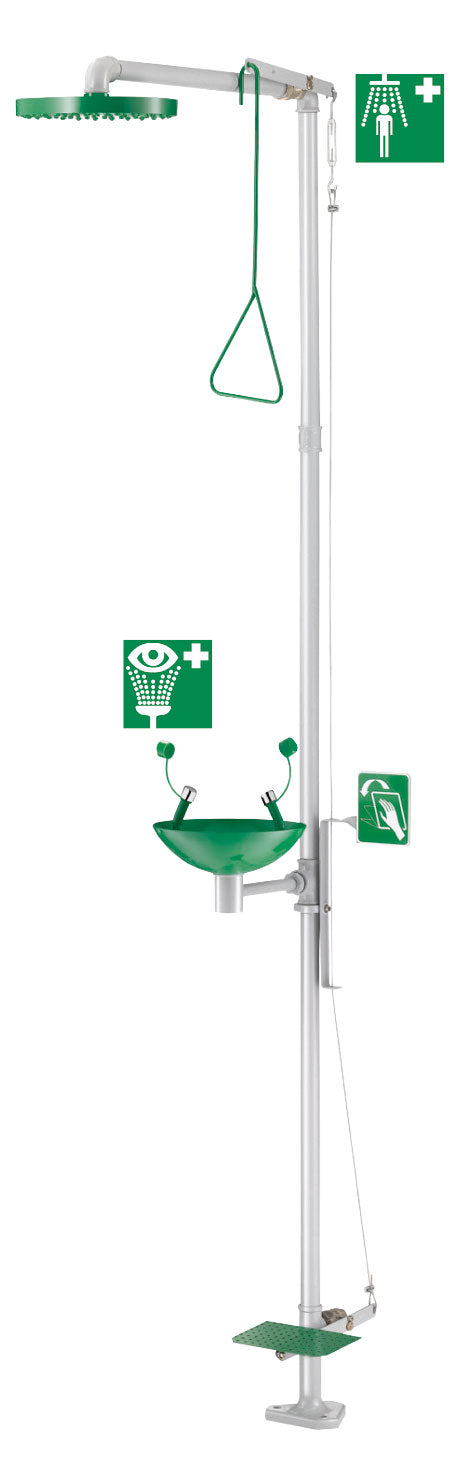

Combined emergency shower and eye wash on a pedestal with manual or foot control, includes:
Standard frost-free mechanism.
Washbasin Ø 250 mm in 304 stainless steel, green lacquered.
The eyewash spray heads are equipped with protective caps made of shock-resistant green ABS that are automatically removed by water pressure.
Flow rate 20 l/min at 3 dynamic bar, aerators with double stainless steel filter.
Round main shower head Ø 250 mm in shock-resistant green ABS.
Flow rate 96 l/min at 3 dynamic bar.
Water connection F1".
Galvanised pipes finished in epoxy grey. The triangular handle is made of green lacquered brass. The hand plate and pedal are made of green lacquered galvanised steel.
Floor mounting with brass plate (screws not provided).
Pictograms for "emergency shower" and "eyewash" are provided.
30-year warranty.
Operation:
Fast opening/closing with 1/4 turn nickel-plated brass valve.
Combined shower and eyewash:
Will activate by pulling the triangular handle. The shower does not stop when the triangular handle is released.
Push the handle back into place to close the valve.
Eyewash only:
Will activate by pushing the pedal or the hand plate. The eyewash does not stop when the control is released.
Pull the hand plate and push the pedal back up to close the valve.
The closure is not automatic, which allows the user to have both hands free (to remove clothing, to keep eyes wide open, etc.).
Standard frost-free mechanism.
Washbasin Ø 250 mm in 304 stainless steel, green lacquered.
The eyewash spray heads are equipped with protective caps made of shock-resistant green ABS that are automatically removed by water pressure.
Flow rate 20 l/min at 3 dynamic bar, aerators with double stainless steel filter.
Round main shower head Ø 250 mm in shock-resistant green ABS.
Flow rate 96 l/min at 3 dynamic bar.
Water connection F1".
Galvanised pipes finished in epoxy grey. The triangular handle is made of green lacquered brass. The hand plate and pedal are made of green lacquered galvanised steel.
Floor mounting with brass plate (screws not provided).
Pictograms for "emergency shower" and "eyewash" are provided.
30-year warranty.
Operation:
Fast opening/closing with 1/4 turn nickel-plated brass valve.
Combined shower and eyewash:
Will activate by pulling the triangular handle. The shower does not stop when the triangular handle is released.
Push the handle back into place to close the valve.
Eyewash only:
Will activate by pushing the pedal or the hand plate. The eyewash does not stop when the control is released.
Pull the hand plate and push the pedal back up to close the valve.
The closure is not automatic, which allows the user to have both hands free (to remove clothing, to keep eyes wide open, etc.).
Advantages
Related products
Specifications
| Article number | 81469203 |
|---|---|
| Brand | Delabie |
| Weight | 13.95 kg |
