Self-closing shower mixer with standard recessed box:

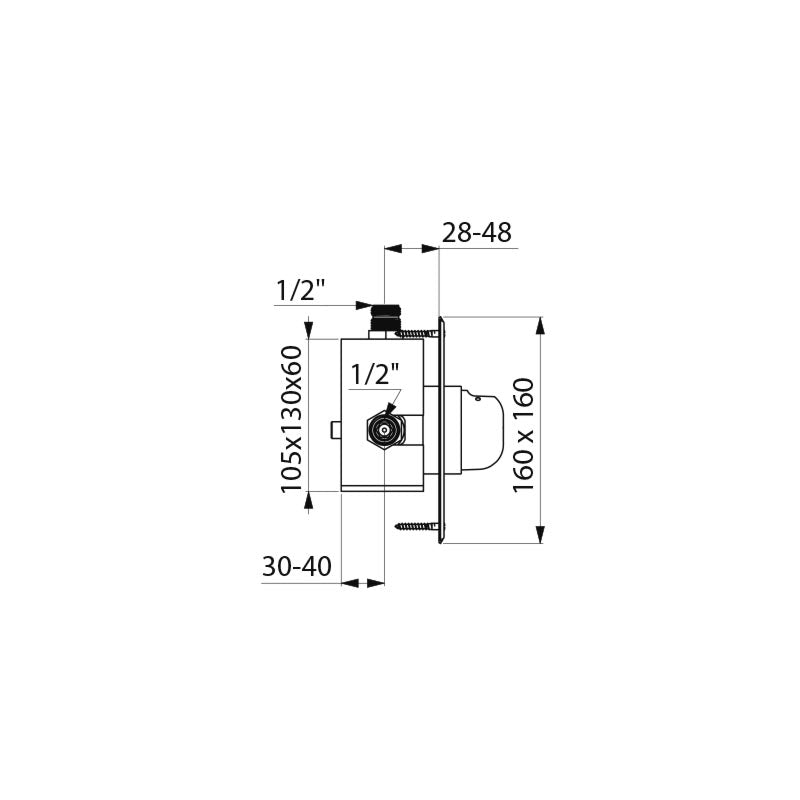

Stainless steel cover plate 160 x 160.
Standard recessed box.
Adjustable recessed depth between 28 and 48 mm.
TEMPOMIX single-lever mixer 3/4".
Sleek design.
Temperature control and operation on the push button.
Temperature limitation (adjustable by the installer).
Self-closing after ~ 30 seconds, smooth operation.
Flow rate 12 l/min at 3 bar.
Connections M1/2" for copper pipe Ø 14.
Handle in chrome-plated metal.
Integrated filters and check valves.
30-year warranty.
As this model is not equipped with a waterproof recessed box, the installer must ensure the watertightness of the recessed space and also ensure that in case of condensation or a possible leak, water can drain from the recessed space (see manual).
Stainless steel cover plate 160 x 160.
Standard recessed box.
Adjustable recessed depth between 28 and 48 mm.
TEMPOMIX single-lever mixer 3/4".
Sleek design.
Temperature control and operation on the push button.
Temperature limitation (adjustable by the installer).
Self-closing after ~ 30 seconds, smooth operation.
Flow rate 12 l/min at 3 bar.
Connections M1/2" for copper pipe Ø 14.
Handle in chrome-plated metal.
Integrated filters and check valves.
30-year warranty.
As this model is not equipped with a waterproof recessed box, the installer must ensure the watertightness of the recessed space and also ensure that in case of condensation or a possible leak, water can drain from the recessed space (see manual).
Specifications
| Article number | 8146790427 |
|---|---|
| Brand | Delabie |
| Weight | 1.794 kg |
| Operation | Self-closing |
| Colour | Stainless steel |
| Material | Stainless steel |
| Assembly | Recessed |
| Finish | Brushed |
