DELABIE 763300

Flush system without cistern: direct connection to the water supply.

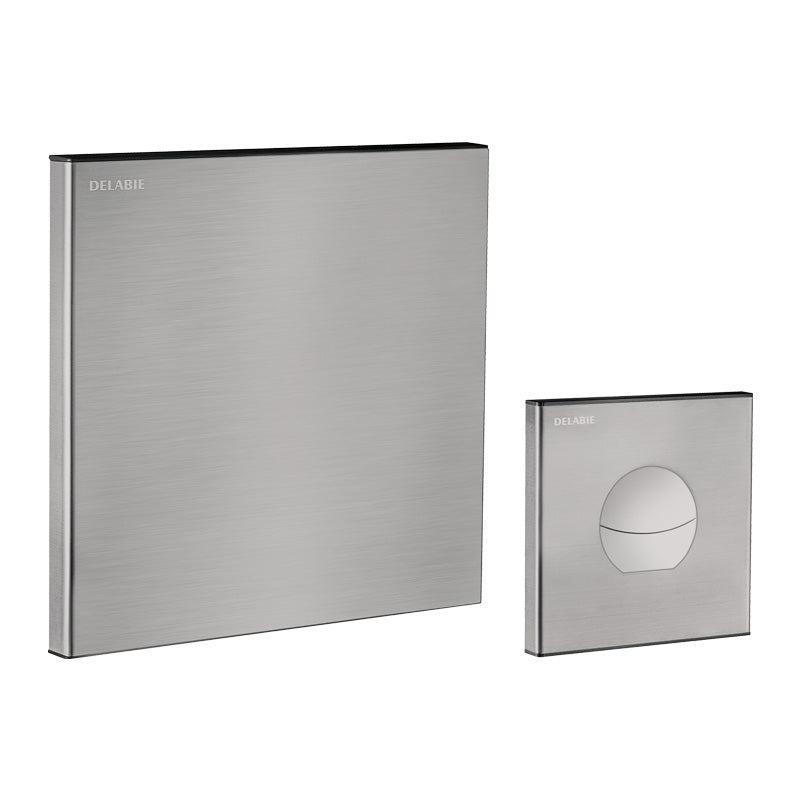

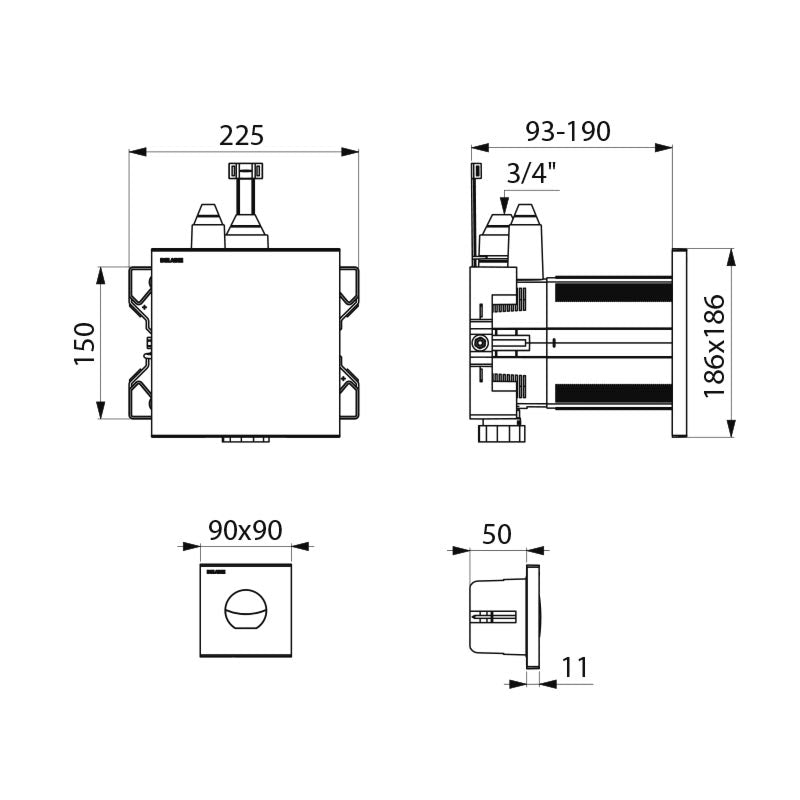

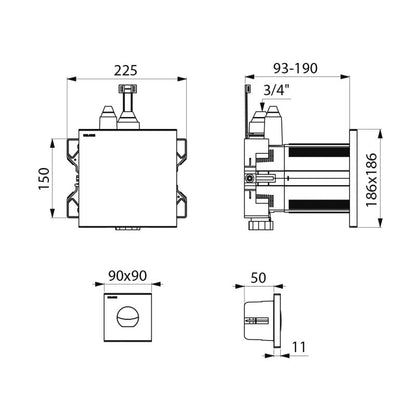

Matte stainless steel flush plate 186 x 186 mm.
Self-closing control plate in matte stainless steel with chrome-plated push-button 90 x 90 mm.
Mechanical plate mounting with concealed fixings.

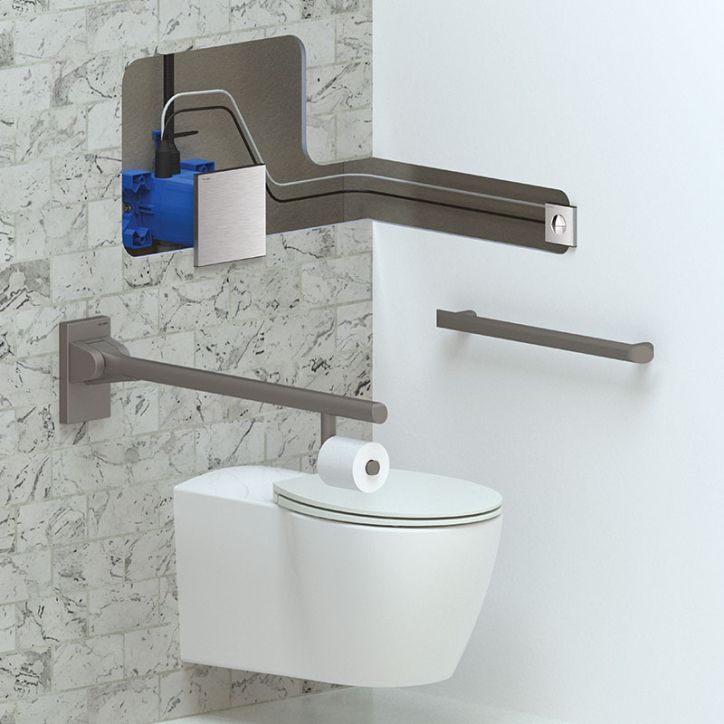

Waterproof recessed housing:
- Collar with seal.
- Hydraulic connection from the outside and maintenance from the front.
- Suitable for walls from 10 to 120 mm (taking into account the minimum installation depth of 93 mm).
- Can be connected to standard supply pipes or "pipe-in-pipe".
- Stopcock and flow rate regulation integrated and accessible from the front.
- Mechanism and filter integrated and accessible from the front.
- TEMPOFLUX 3 valve F3/4" resistant to rainwater.
- Vacuum breaker built into the recessed housing.

Soft-touch operation.
AB anti-blocking system: water flows only when the push-button is released.
Dual flush 3l/6l adjustable to 2l/4l.
Outlet with seal for PVC pipe Ø 26/32.
Noise level in accordance with NF EN 12541 class II.
Supply diameter: minimum internal Ø 20 mm.
Base flow rate: 1 l/sec at 1 bar dynamic pressure.
Suitable for rimless toilets.
Suitable for people with reduced mobility.
30-year warranty.
