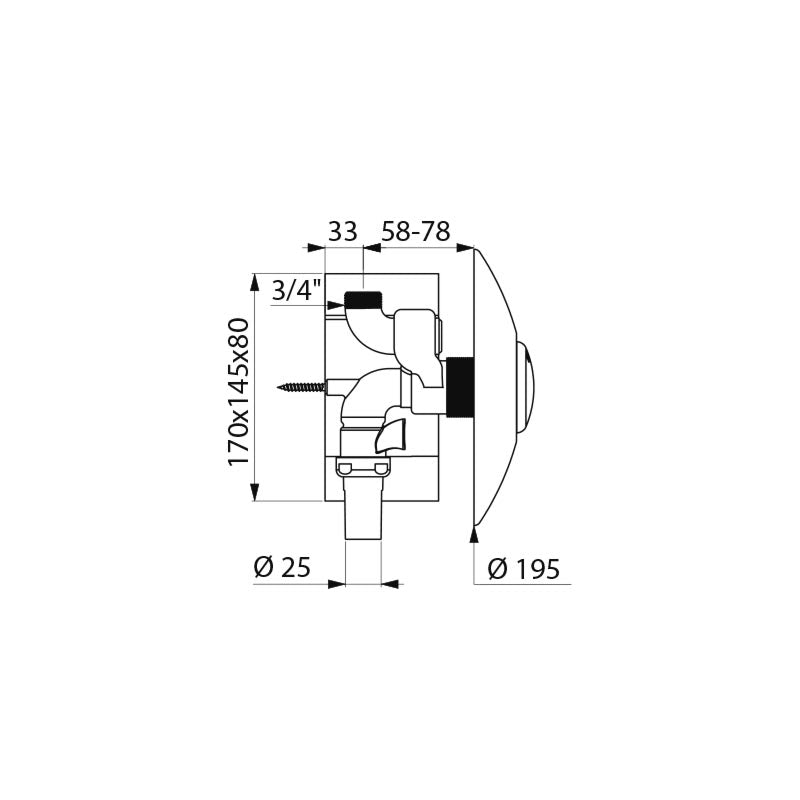

Self-closing flush valve for built-in direct toilet flush:

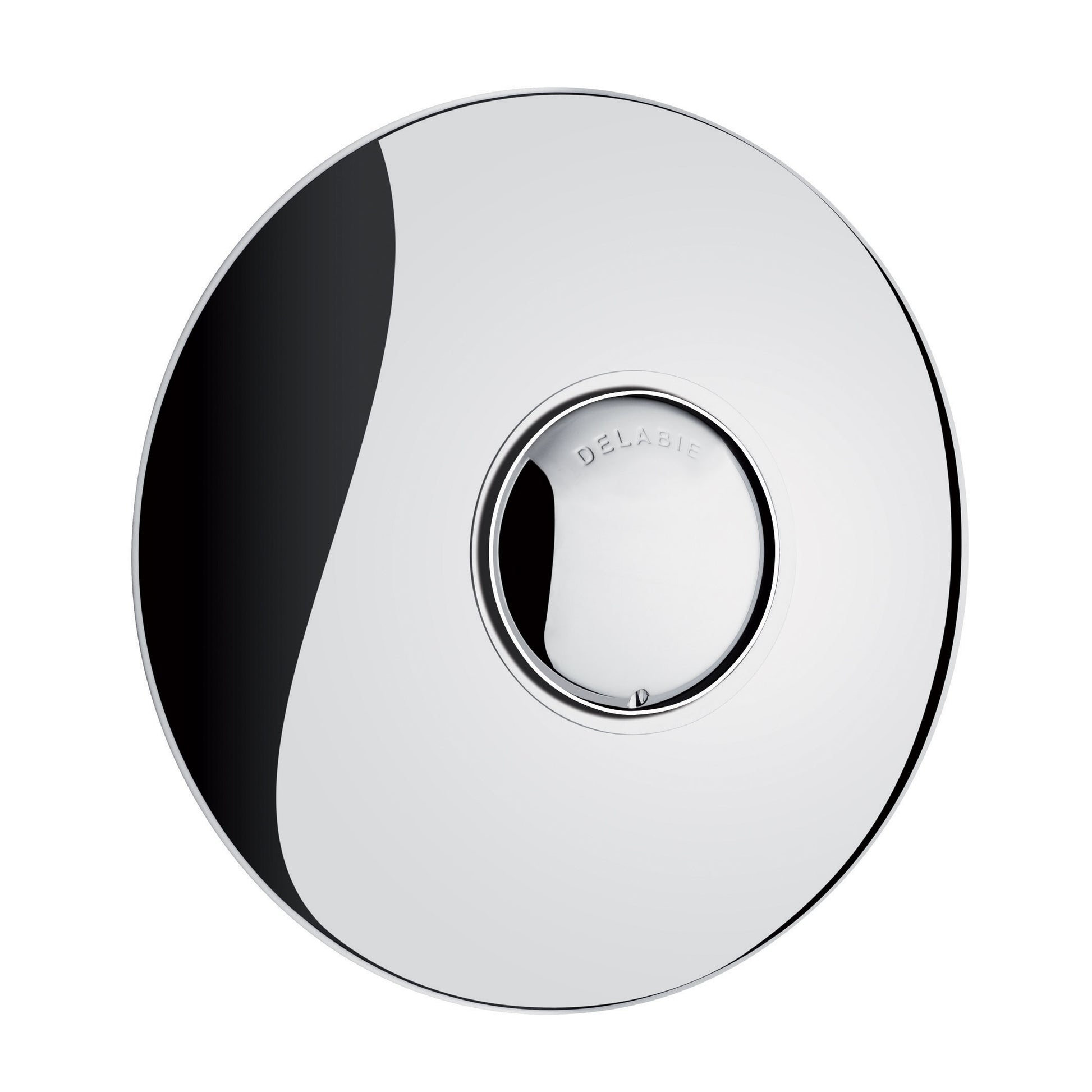

Ø 195 chrome-plated metal wall plate.
Concealed mechanical fixing of the wall plate.
Recessed housing with multiple mounting options.
Installation depth adjustable from 0 to 20 mm.
Single flush 6l.
Soft-touch operation.
Built-in vacuum breaker.
Integrated stopcock and flow/volume control.
Solid brass body.
Chrome-plated metal push-button.
In-line connection M3/4".
Outlet with seal for PVC pipe Ø 26/32.
Acoustic level compliant with NF EN 12541 class II.
Supply diameter: minimum internal Ø 20 mm.
Base flow rate: 1 l/sec at 1 bar dynamic pressure.
Compatible with rainwater.
Suitable for rimless toilets, without flow regulation.
Suitable for people with reduced mobility.
30-year warranty.
As this model is not equipped with a waterproof recessed housing, the installer must ensure the water-tightness of the recess and ensure that any water from condensation or a potential leak can drain away (see installation manual).
Specifications
| Article number | 8146762901 |
|---|---|
| Brand | Delabie |
| Weight | 1.879 kg |
| Operation | Self-closing |
| Colour | Chrome |
| Material | Metal |
| Assembly | Recessed |
| Finish | High-gloss chrome |
