SKU: 8146761210
Delivery time: 21 days
Color: Chrome High-gloss chrome
Couldn't load pickup availability
Returns
Returns
Shipping countries
Shipping countries
At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.
Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.
Private individual
Private individual
We do not supply to private individuals. Orders from private individuals will be cancelled.
CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.
Questions
Questions
Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

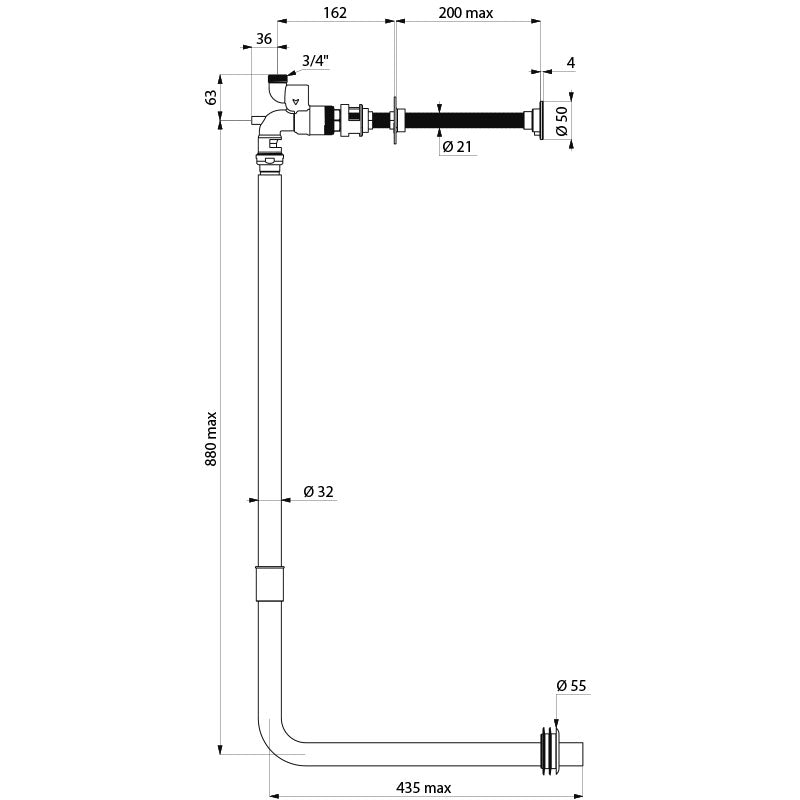

Self-closing direct flush valve set for technical ducts:
For wall ≤ 200 mm.
Soft-touch operation.
Time flow ~7 seconds.
Built-in vacuum breaker.
Integrated stopcock and flow rate/volume adjustment.
Chrome-plated metal body.
In-line inlet M3/4".
Inlet gasket Ø 32/55.
Adjustable threaded rod.
Inlet diameter: minimum inner Ø 20 mm.
Base flow rate: 1 l/sec at 1 bar dynamic pressure.
With PVC flush pipe Ø 32.
Compatible with rainwater.
Suitable for people with reduced mobility.
30-year warranty.
[Old reference: 761700]
Specifications
| Article number | 8146761210 |
|---|---|
| Brand | Delabie |
| Weight | 2.201 kg |
| Operation | Self-closing |
| Colour | Chrome |
| Material | Metal |
| Assembly | Recessed |
| Finish | High-gloss chrome |
