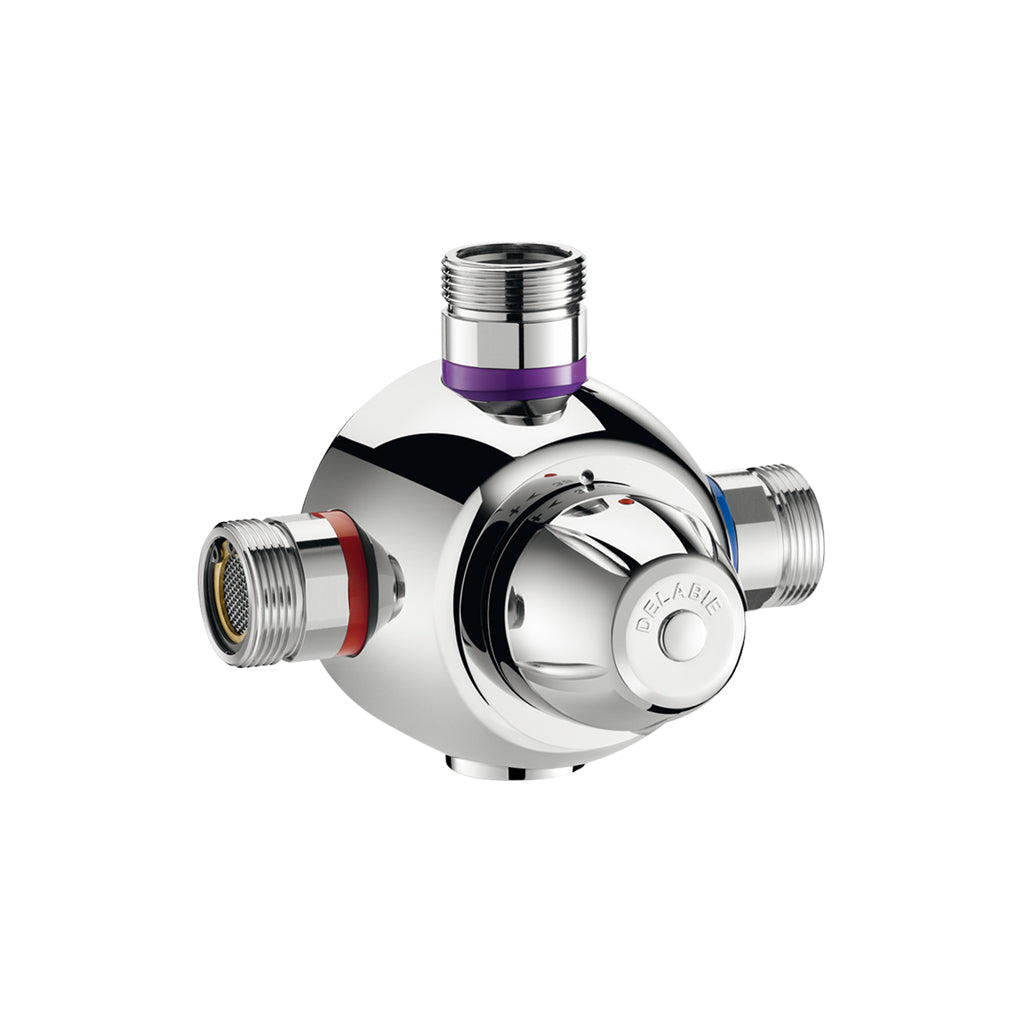

DELABIE 731200

Central thermostatic mixing valve for mixed water
from 32° to 42°C:
Anti-scalding safety.
Compensation for temperature fluctuations.
Filters and non-return valves are accessible from the outside
without dismantling the mechanism.
Thermal flush possible without a special key
(push-button on the control knob).
Interchangeable cartridge with self-acting element.
Chrome-plated brass body with high surface hardness.
Maximum hot water temperature: 85°C.
Differential between hot water/mixed water: 15°C min.
Pressure difference at the inlets: 1 bar max (0.5 bar recommended).
Min/max pressure: 1 to 10 bar (1 to 5 bar recommended).
Hot water supply on the left (red ring) and cold water on the right (blue ring).
Mixed water outlet at the top (purple ring).
Bottom outlet possible: unscrew the plug and replace it at the top
and install the mixed water outlet fitting at the bottom.
Temperature limiter adjustable by the installer.
Reduce the risk of scalding by lowering the temperature
at the point of use.
55 l/min - 3/4".
30-year warranty.
