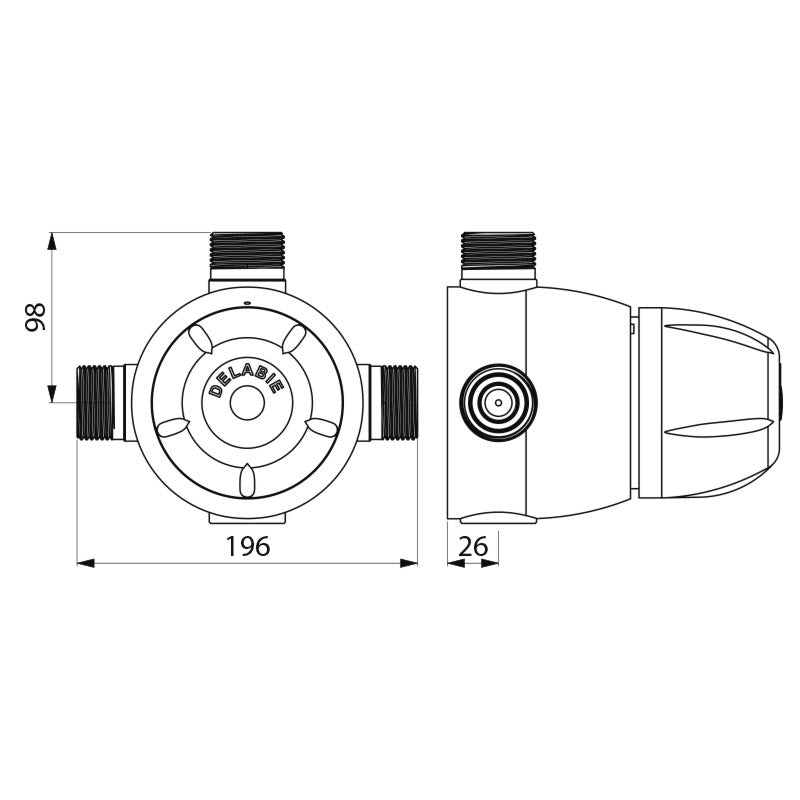

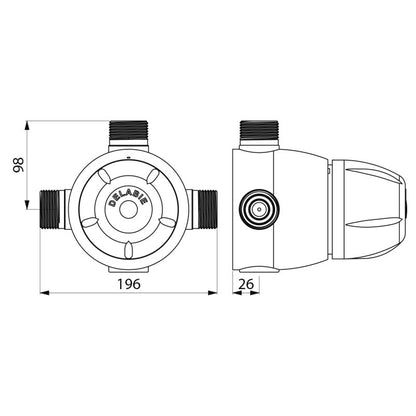

DELABIE 731055

Central thermostatic mixing valve for water circuits
from 44° to 58°C:
Anti-scalding safety.
Compensation for temperature fluctuations.
Filters and non-return valves are accessible from the outside
without dismantling the mechanism.
Thermal flushing is possible.
Interchangeable cartridge with self-thermostatic element.
Chrome-plated brass body with high surface hardness.
Maximum hot water temperature: 85°C.
Differential between hot water/mixed water: 15°C min.
Pressure difference at the inlets: 1 bar max (0.5 bar recommended).
Min/max pressure: 1 to 10 bar (1 to 5 bar recommended).

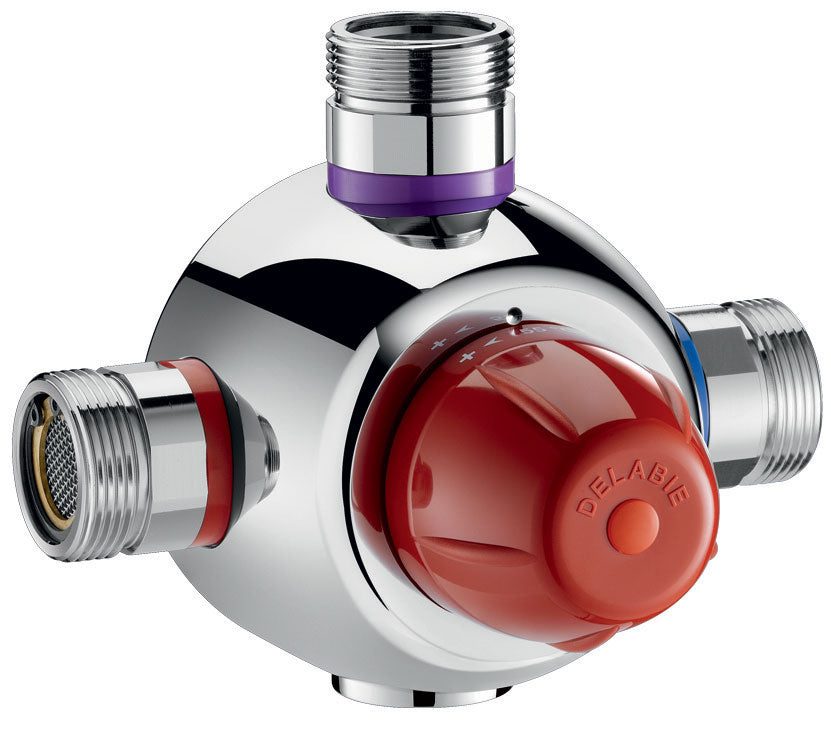

Hot water inlet on the left (red ring) and cold water on the right (blue ring).
Mixed water outlet on the top (purple ring).
Bottom outlet possible: unscrew the plug and replace it on the top,
then move the mixed water outlet fitting to the bottom.
Protects and extends the lifespan of the network
(HW > 65°C = cause of premature aging).
Temperature limiter adjustable by the installer.
Reduces the risk of scalding by lowering the temperature
at the outlet of the hot water production.
190 l/min - M1"1/2.
30-year warranty
