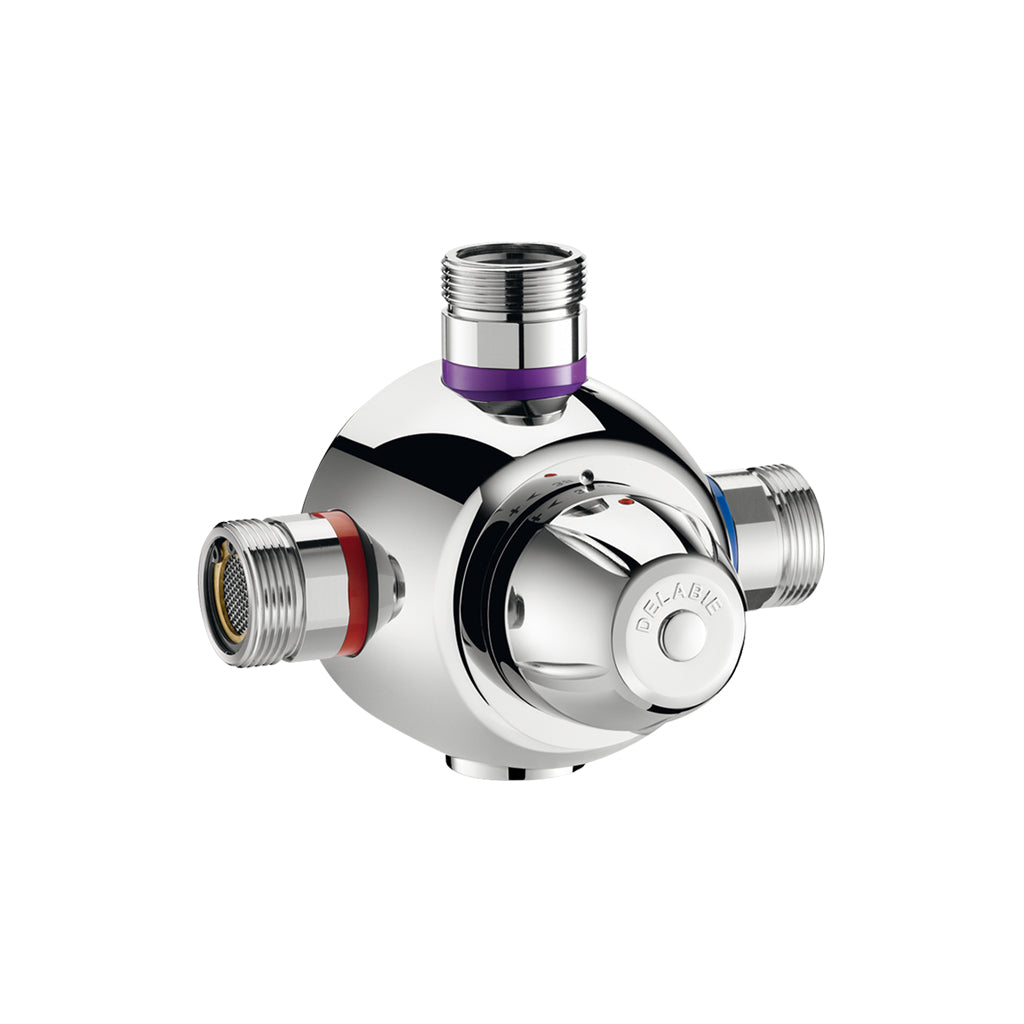

DELABIE 731002

Thermostatic mixing valve for mixed water from 32° to 42°C:
Anti-scalding safety.
Compensation of temperature fluctuations.
Filters and non-return valves are accessible from the outside,
without dismantling the mechanism.
Thermal flush is possible without a special key
(push-button on the control knob).
Interchangeable cartridge with a self-thermostatic element.
Chrome-plated brass body with high surface hardness.
Maximum hot water temperature: 85°C.
Differential between hot water and mixed water: 15°C min.
Pressure difference at the inlets: 1 bar max (0.5 bar recommended).
Min/max pressure: 1 to 10 bar (1 to 5 bar recommended).
Hot water supply on the left (red ring) and cold water on the right (blue ring).
Mixed water outlet at the top (purple ring).
Bottom outlet possible: unscrew the plug and replace it at the top, then place the mixed water outlet fitting at the bottom.
Temperature limiter adjustable by the installer.
Reduces the risk of scalding by lowering the temperature
at the point of use.
55 l/min - 3/4".
30-year warranty.
