DELABIE 683002DE

Accessories
1 2

SKU: 8146683002DE

€90,00 EUR
€90,00 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 21 days

Color:

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

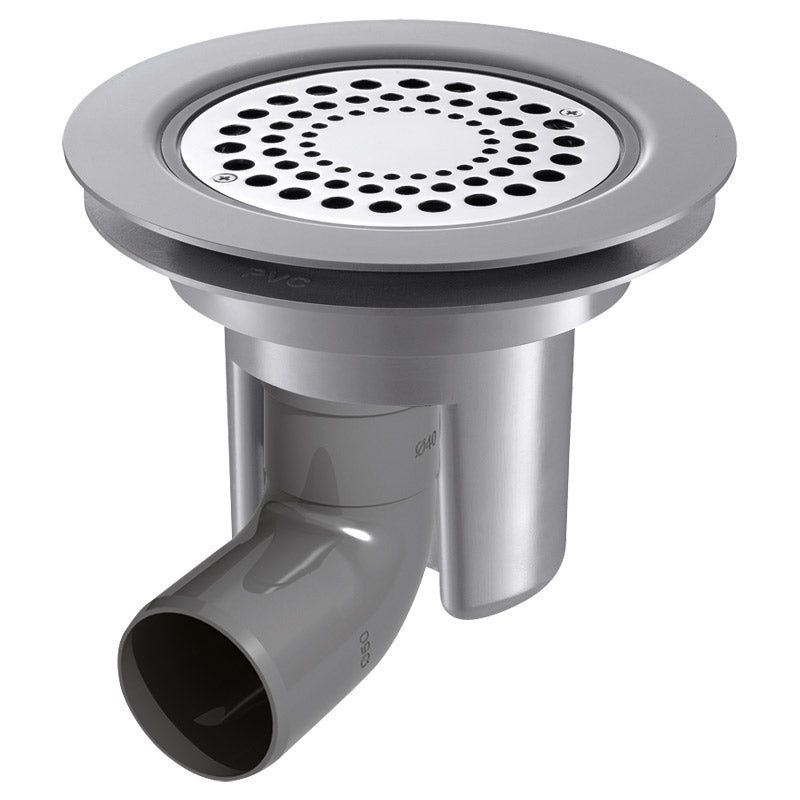

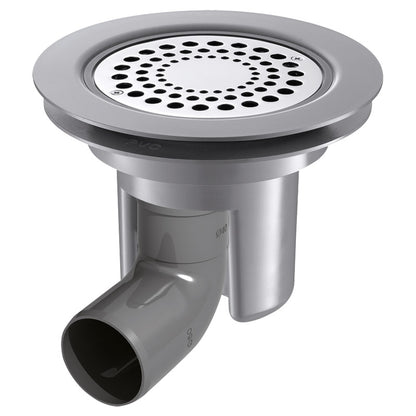

Height-adjustable floor gully for soft floor coverings or vinyl:
Standardized flow rate of 36 l/min.
Water seal 50 mm.
Polished stainless steel grate Ø 114.
Horizontal outlet (with Ø 50 connection bend) integrated into the height of the gully (saves total height and can be oriented in all directions).
Integrated sealing collar for installing an insulating membrane.
Temperature resistant: continuous 60°C, peak 85°C.
Bell with handle: easy grip and maintenance.
PVC body without irregularities (no dirt deposits).
Fire-resistant (according to the US UL94 standard).

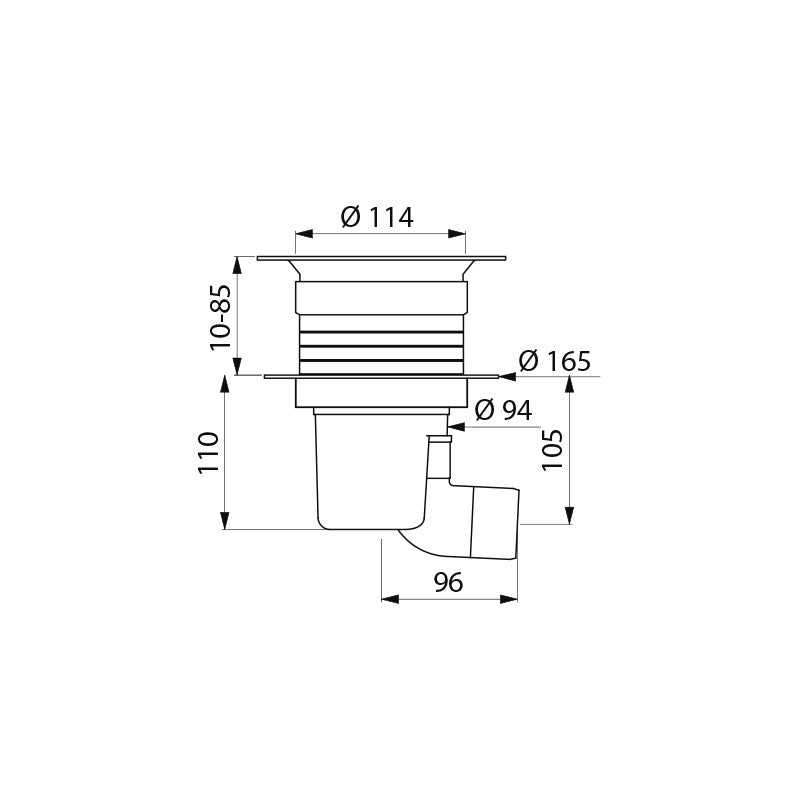

Height 110 mm, with adjustable extension up to 85 mm.
Grate to be secured with 2 stainless steel screws.
30-year warranty

Specifications

Article number 8146683002DE
Brand Delabie
Weight 0.88 kg
