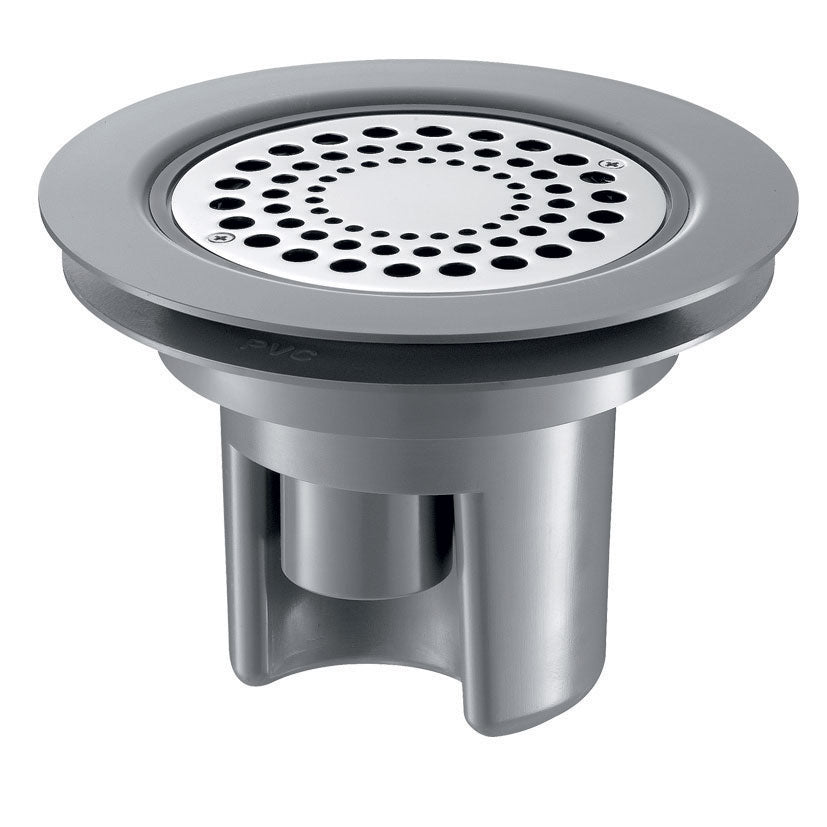

Floor drain with adjustable height for soft floor coverings or vinyl:
Standardized flow rate of 36 l/min.
Water seal 50 mm.

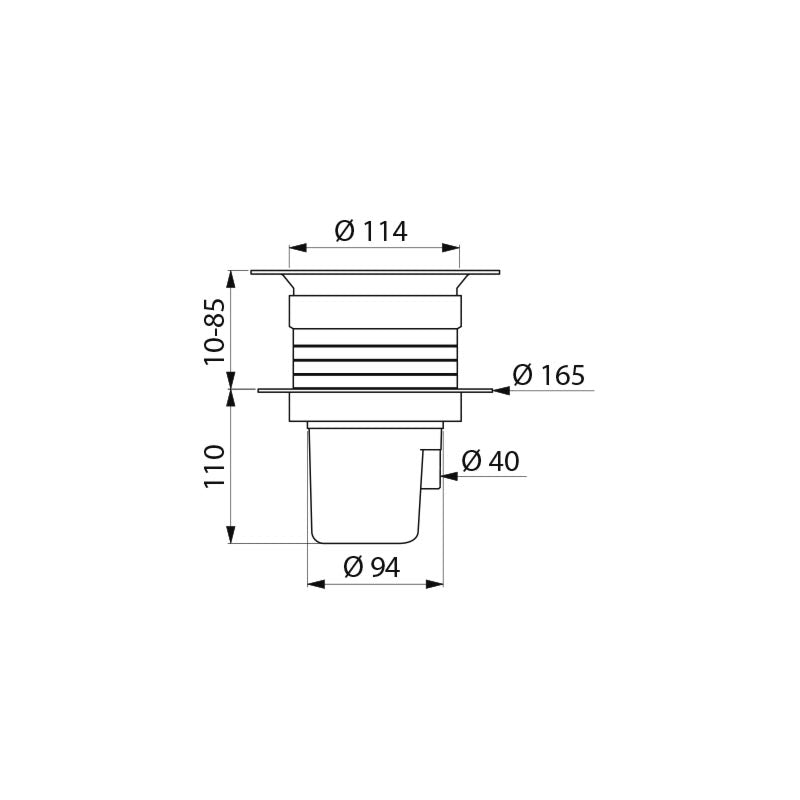

Polished bright stainless steel grate Ø 114.
Horizontal (with connection elbow not included) or vertical outlet Ø 40 integrated within the height of the drain (saves overall height and adjustable in all directions).
Integrated collar for placing an insulating membrane.
Temperature resistant: continuous 60°C, peak 85°C.
Bell with handle: easy grip and maintenance.
Smooth PVC body (no dirt traps).
Fire resistant (according to the American UL94 standard).
Height 110 mm, with adjustable extension up to 85 mm.
Grate to be secured with 2 stainless steel screws.
30-year warranty.
Specifications
| Article number | 8146683002 |
|---|---|
| Brand | Delabie |
| Weight | 0.807 kg |
