DELABIE 683001

Accessories
1 2

SKU: 8146683001

€132,00 EUR
€132,00 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 21 days

Color:

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

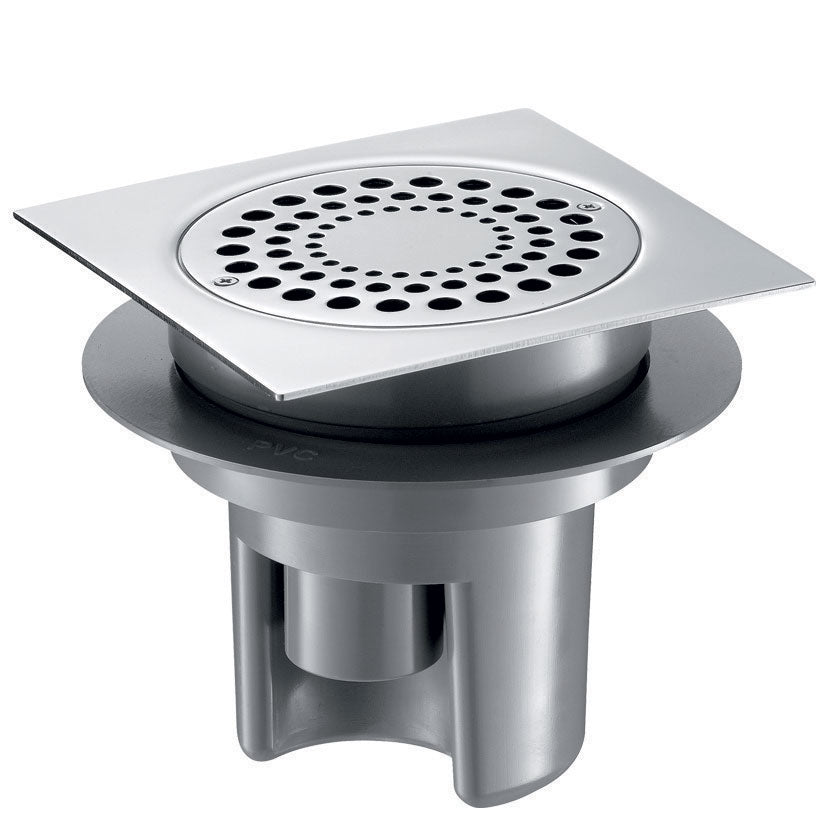

Floor drain with adjustable height for hard floors
(tiled floor or rough concrete):
Standardized flow rate of 36 l/min.
Water seal 50 mm.
Base plate and grating in bright polished stainless steel 150 x 150 mm.
Horizontal (with connection elbow not supplied) or vertical outlet Ø 40 integrated into the height of the drain (saves total height and is adjustable in all directions).
Integrated collar for installing an insulating membrane.
Temperature resistant: continuous 60°C, peak 85°C.
Bell with handle: easy grip and maintenance.
PVC body with no uneven surfaces (no dirt accumulation).
Fire resistant (according to the American UL94 standard).

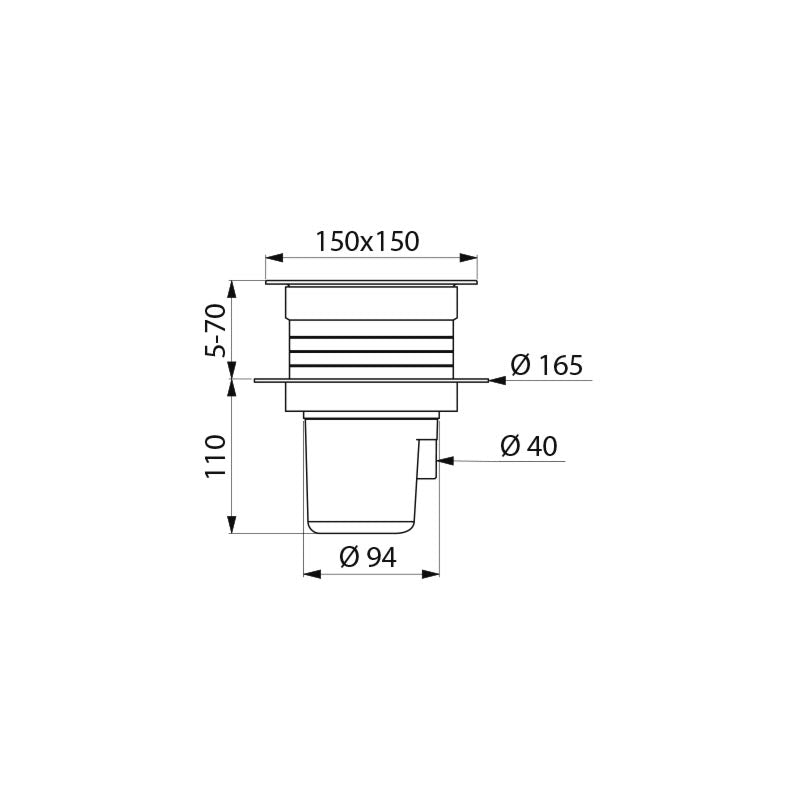

Height 110 mm, with adjustable extension up to 70 mm.
Grating to be secured with 2 stainless steel screws.
30-year warranty.

Specifications

Article number 8146683001
Brand Delabie
Weight 1.024 kg
