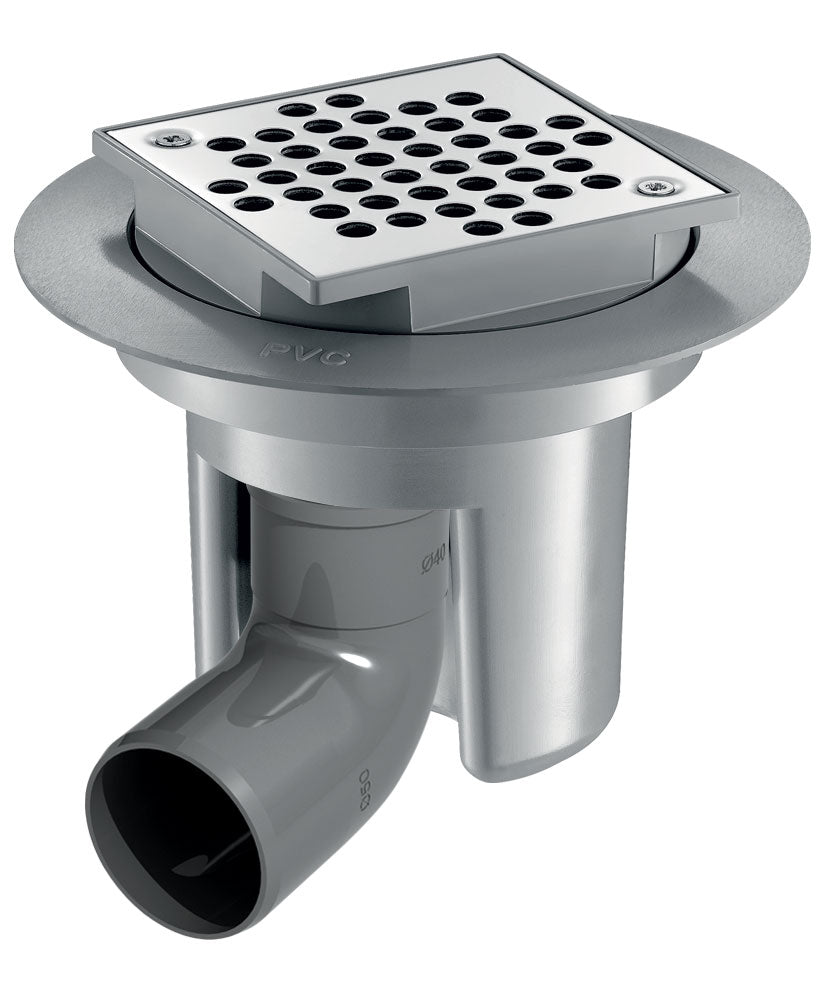

Floor drain with adjustable height for hard floors
(tiled floor or rough concrete):
Standardized flow rate of 36 l/min.
Water seal 50 mm.
Polished stainless steel grate 100 x 100 mm.
Horizontal outlet Ø 50 integrated into the height of the drain
(saves overall height and can be oriented in all directions).
Integrated collar for installing an insulating membrane.
Temperature resistant: 60°C continuous, 85°C peak.
Bell trap with handle: easy grip and maintenance.
PVC body without irregularities (no dirt accumulation).
Fire resistant (according to American standard UL94).

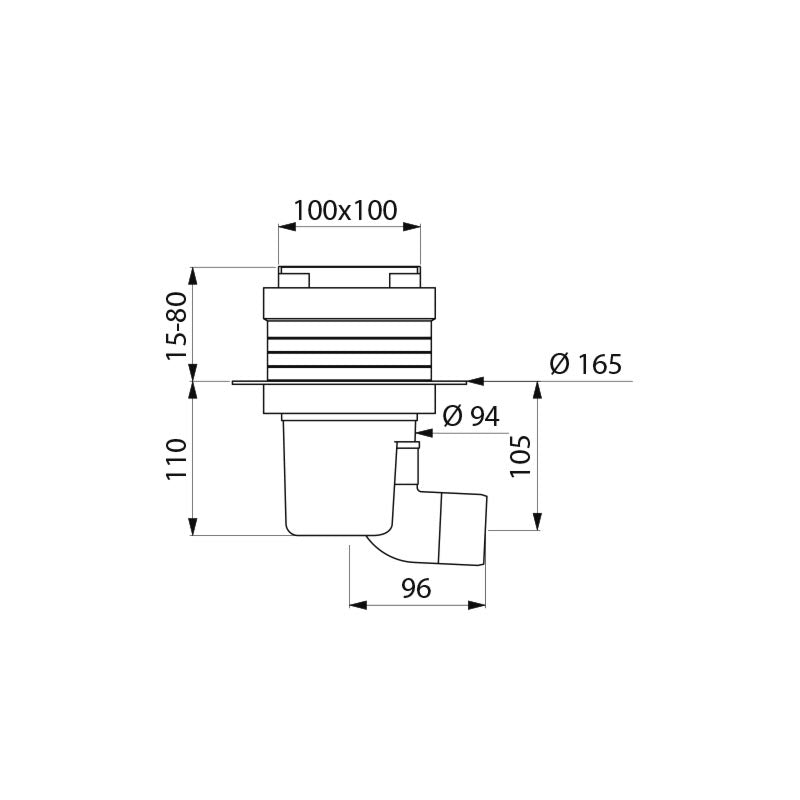

Height 110 mm, with adjustable extension up to 80 mm.
Grate to be secured with 2 stainless steel screws.
30-year warranty.
Specifications
| Article number | 8146682001DE |
|---|---|
| Brand | Delabie |
| Weight | 0.78 kg |
