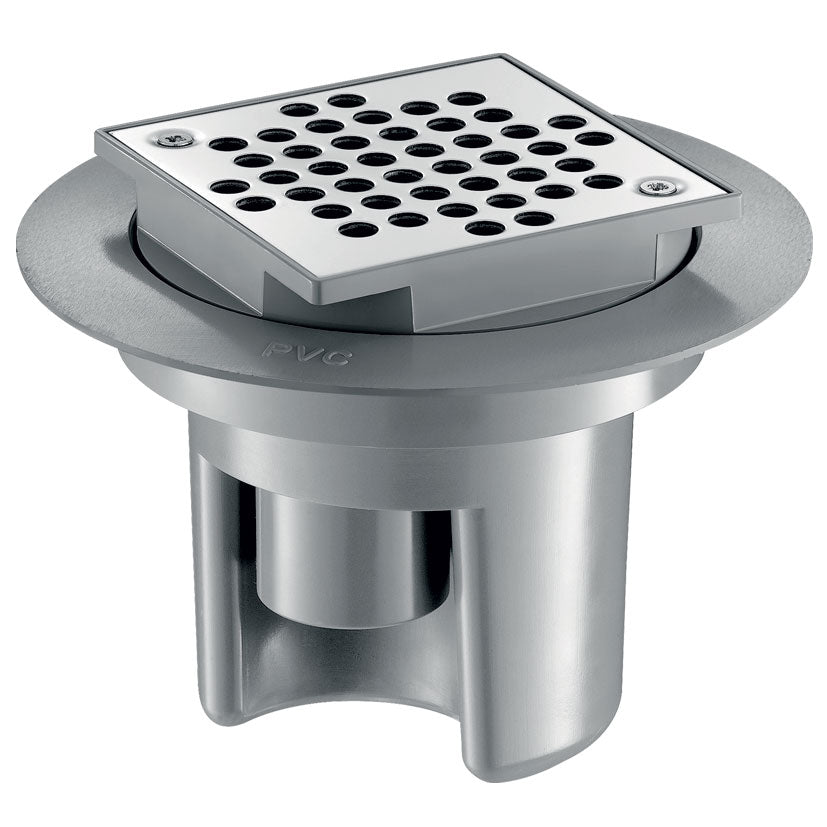

Floor gully with adjustable height for hard flooring
(tiled floor or rough concrete):
Standardized flow rate of 36 l/min.
Water seal 50 mm.
Bright polished stainless steel grate 100 x 100 mm.
Horizontal (with connection elbow not supplied) or vertical outlet Ø 40 integrated into the height of the gully (saves total height and is adjustable in all directions).
Integrated collar for installing a waterproof membrane.
Temperature resistant: continuous 60°C, peak 85°C.
Bell with handle: easy grip and maintenance.
PVC body without uneven surfaces (no dirt accumulation).
Fire resistant (according to American standard UL94).

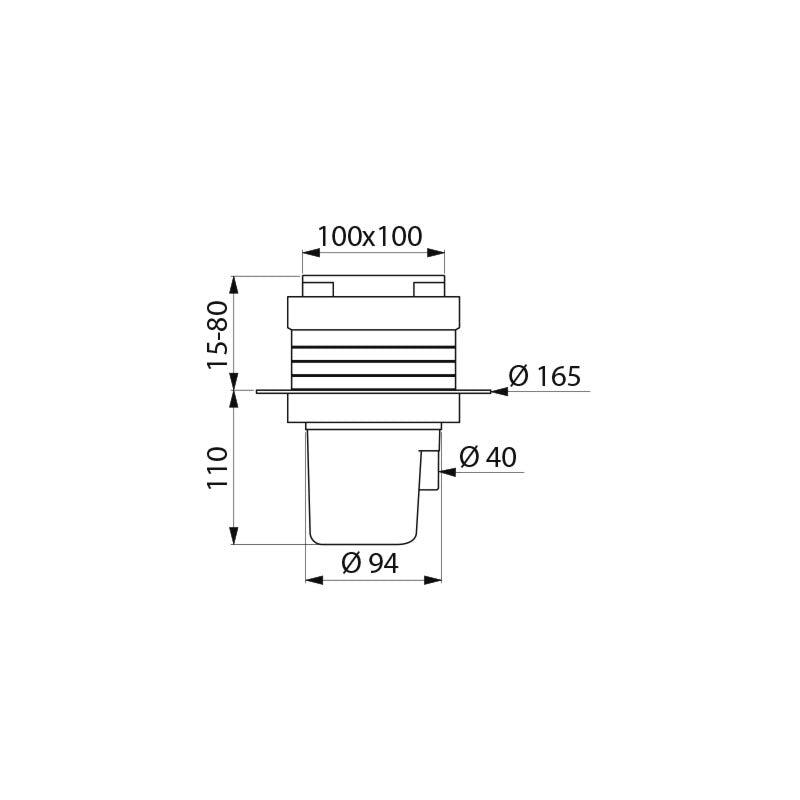

Height 110 mm, with adjustable extension up to 80 mm.
Grate to be secured with 2 stainless steel screws.
30-year warranty.
Specifications
| Article number | 8146682001 |
|---|---|
| Brand | Delabie |
| Weight | 0.707 kg |
