DELABIE 578305DE

Accessories
1 2

SKU: 8146578305DE

€572,00 EUR
€572,00 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 21 days

Color:

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

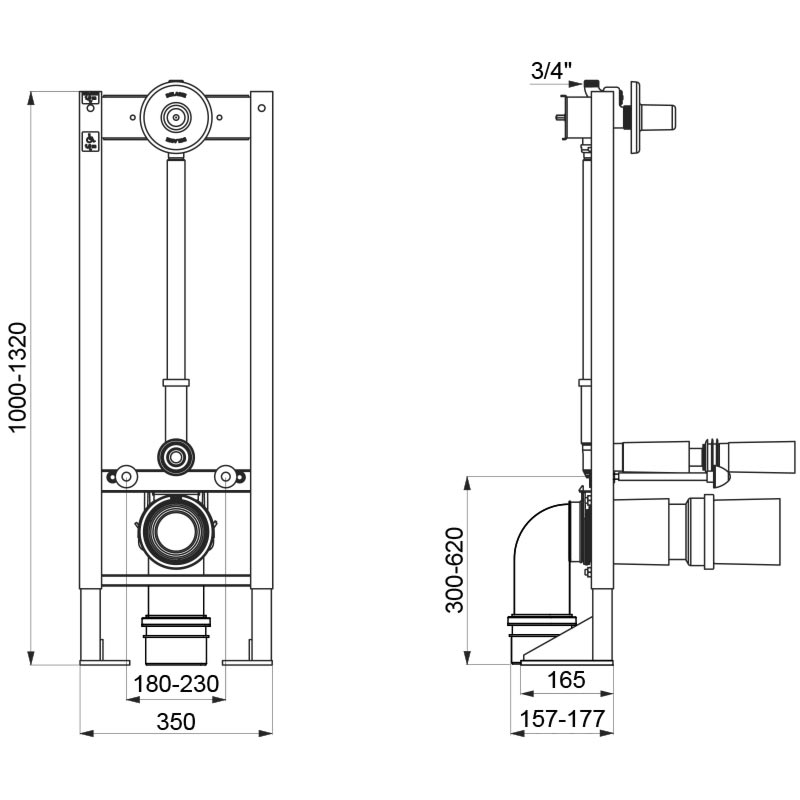

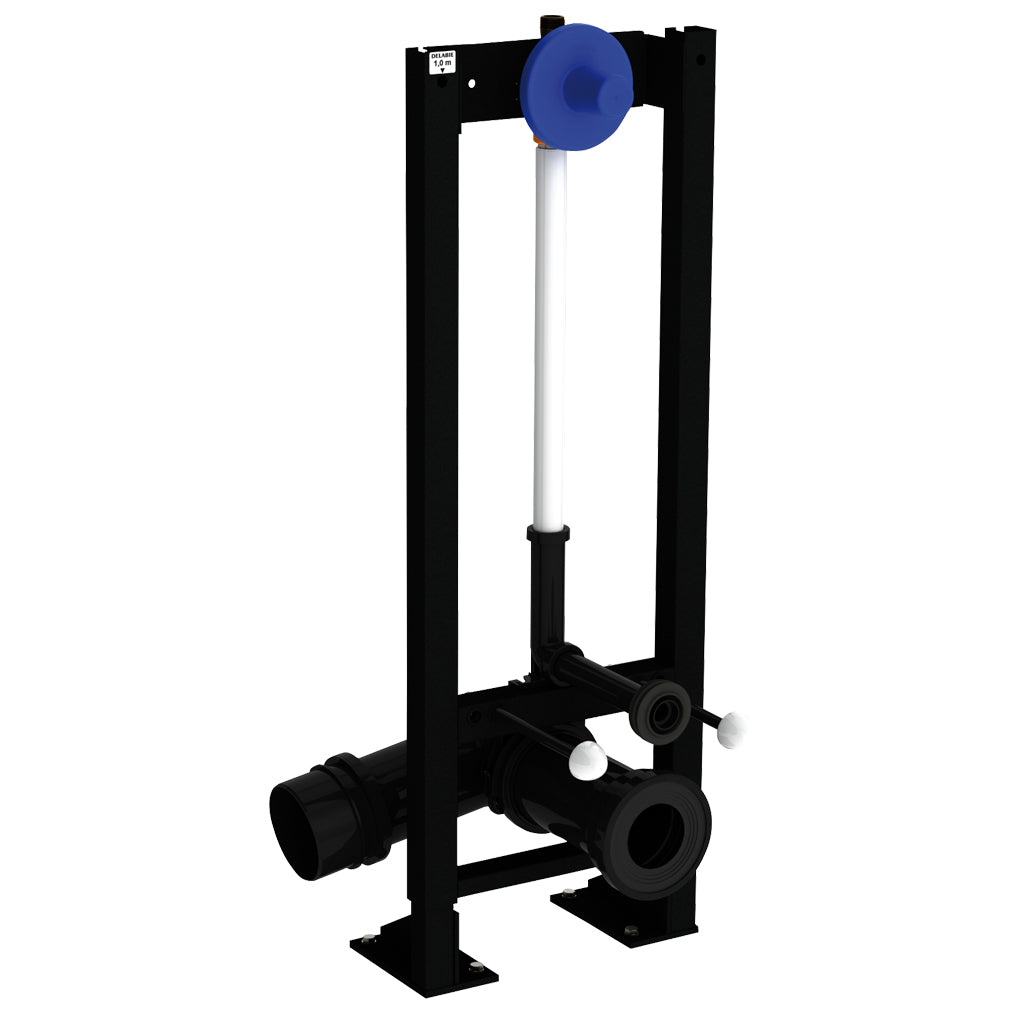

Self-supporting frame system w.350 for wall-hung WC, set 1/2:
Black epoxy-coated steel frame.
- With wide feet for floor mounting.
- Frame height adjustable from 0 to 200 mm (with 1 m mark).
- Suitable for wall thicknesses from 10 to 35 mm.
- Flush pipe Ø 32 with Ø 55 connection seal.
- ABS outlet pipe with PEHD Ø 110 connection sleeve with seal, with 2 adjustment points.
Equipped with TEMPOFLUX 2 time flow WC flush valve:
- Direct flush system: connects directly to supply pipe.
- Integrated vacuum breaker.
- Stopcock with flow rate adjustment.
- Solid brass body and shock-resistant, anti-limestone mechanism.
- In-line inlet M3/4".
- Suitable for rainwater.
Supplied pre-mounted.
Complies with standard NF D12-208.
30-year warranty.

To be ordered with control plates reference 578222, 578212 or 578230

Specifications

Article number 8146578305DE
Brand Delabie
Weight 15.716 kg
