DELABIE 464306

TEMPOMATIC electronic dual-control flush system

Flush system without cistern: direct connection to the water supply.
Power supply via 6 V CR123 Lithium batteries.

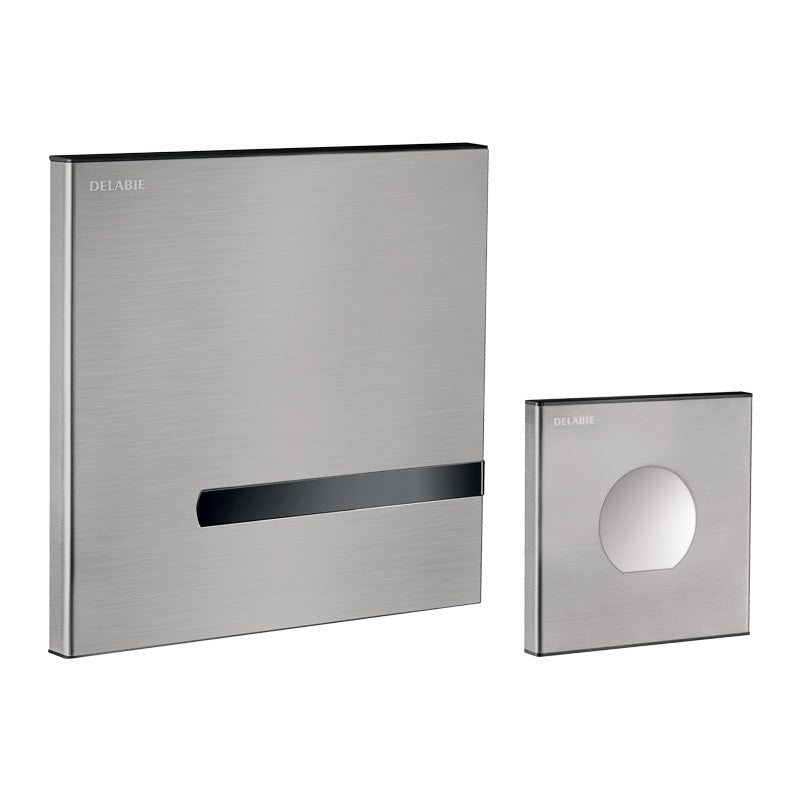

Electronic control plate in satin finish stainless steel 186 x 186 mm.
Self-closing control plate in satin finish stainless steel with chrome-plated push-button 90 x 90 mm.
Mechanical mounting of control plates.

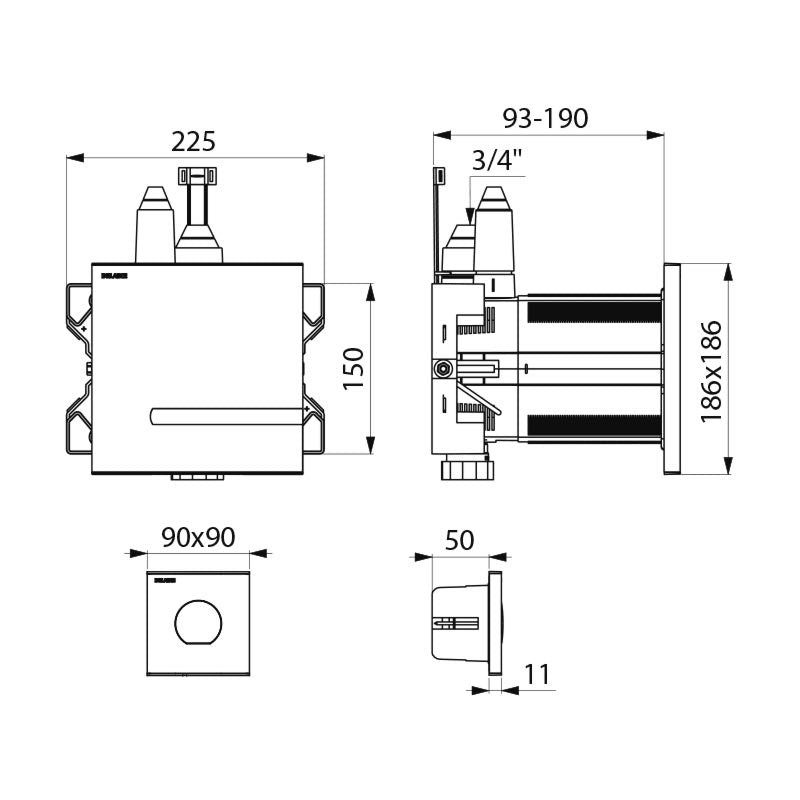

Waterproof recessed housing:
- Collar with sealing ring.
- External hydraulic connection and front access for maintenance.
- Suitable for walls from 10 to 120 mm (taking into account the minimum installation depth of 93 mm).
- Can be connected to standard supply pipes or "pipe-in-pipe".
- Stopcock and flow rate regulation integrated and accessible from the front.
- Electronics integrated and accessible from the front.
- TEMPOMATIC F3/4" valve resistant to grey water, rainwater, and seawater.
- Vacuum breaker built into the recessed housing.

Shock-resistant presence detection using infrared technology.
Activation after 10 seconds of presence.
Automatic flush after the user leaves or manual flush by pressing the push-button on the separate side control plate.
AB anti-blocking safety: the water only flows if the push-button is not kept pressed.
Autonomous push-button: flush works even in the event of a power failure.
"Intelligent" automatic flush: flush volume adjusts according to usage - 3 l for short presence, 6 l for long presence - (adjustable to 2 l/4 l or 5 l/9 l).
3 programs (flush volume adjustable according to toilet type).
Hygienic periodic flush every 24 hours (adjustable to 12 hours or OFF) after the last use.
Outlet with seal for PVC pipe Ø 26/32.
Supply diameter: minimum internal Ø 20 mm (fittings included).
Base flow rate: 1 l/sec at 1 bar dynamic pressure.
Suitable for rimless toilets, without flow rate regulation.
Suitable for people with reduced mobility.
30-year warranty.
