Mechanical mixer for sink or trough
Mechanical mixer for sink or trough, deck mounted.

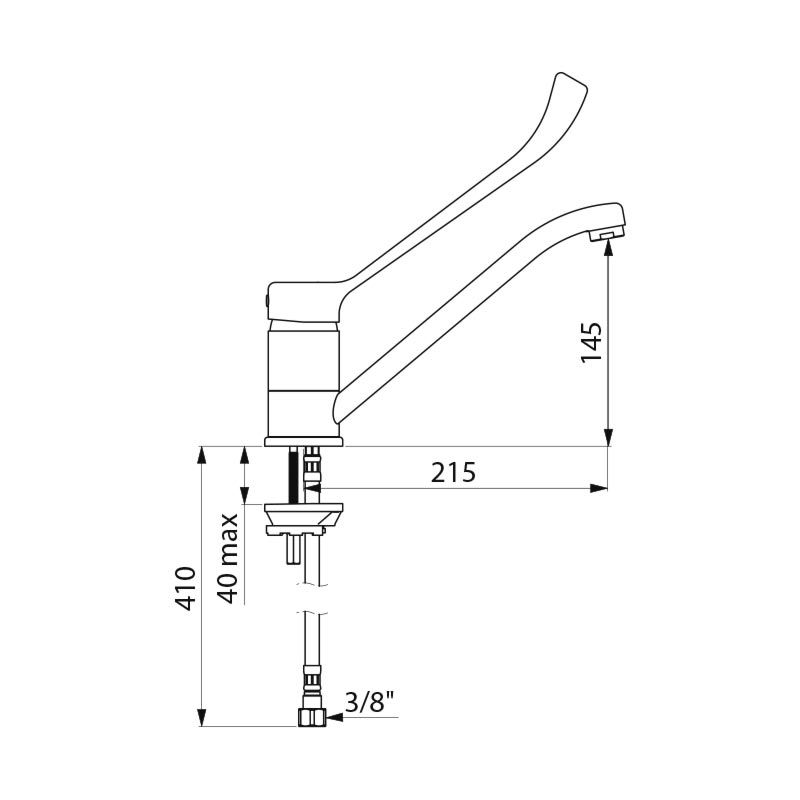

Mechanical single-hole mixer with swivel spout H.145 L.215 with hygienic flow straightener.
High spout suitable for fitting a BIOFIL end filter.
Classic ceramic cartridge Ø 40.
With temperature limiter.
Body and spout with smooth interior.
Body and spout in chrome-plated brass.
Flow rate preset to 3 l/min at 3 bar, adjustable between 1.4 and 6 l/min.
Operation with hygienic lever L.200.
PEX hoses F3/8".
Filter and non-return valve on the cold water supply.
Mechanical mixer equipped with a hygienic flow straightener that does not retain impurities and is resistant to thermal flushing.
Single-hole mixer suitable for people with reduced mobility.
Single-lever mixer compliant with the requirements of NF M (Medical environment).
30-year warranty.
| Connection | F3/8" |
| Spout height | 145 mm |
| Spout length | 215 mm |
| Flow rate | 3 l/min at 3 bar |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Standards and certifications |

|
| Warranty |  |
| Repair warranty |  |
Specifications
| Article number | 81462210LBEL |
|---|---|
| Brand | Delabie |
| Weight | 1.6 kg |
| Operation | Eengreeps |
| Colour | Chrome |
| Material | Brass |
| Assembly | Tap hole |
| Finish | Verchroomd hoogglans |
