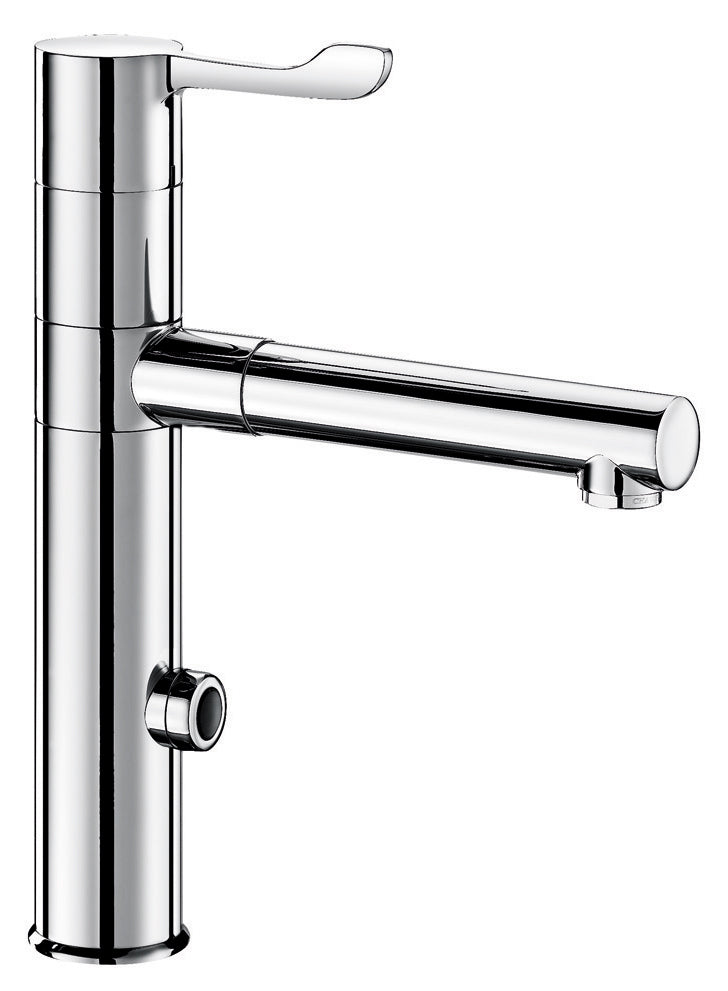

DELABIE 20870T1

Deck-mounted electronic basin mixer.

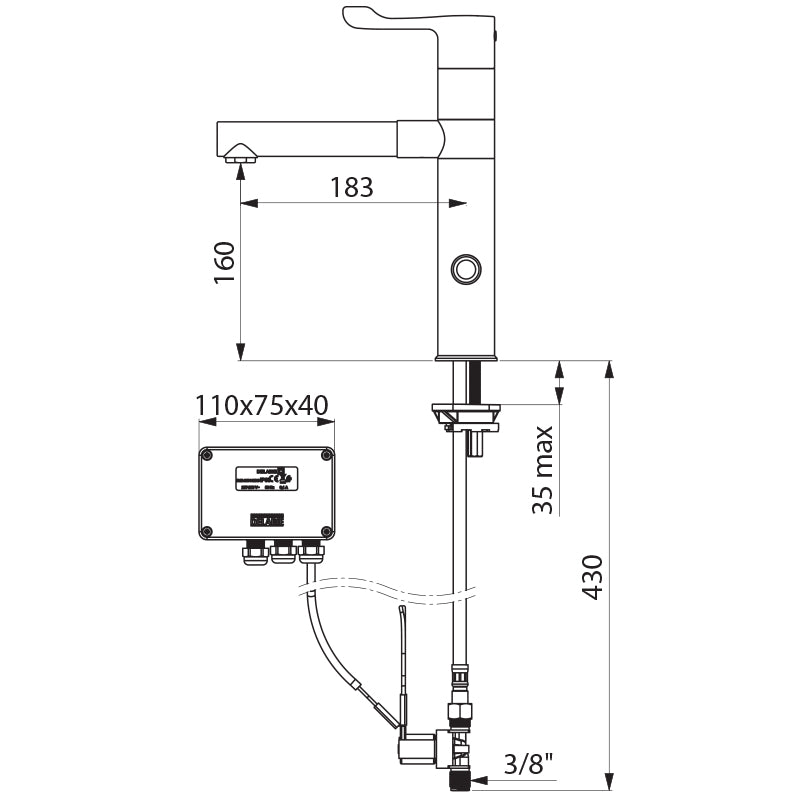

Sensor tap with high, swivelling, removable BIOCLIP spout H.160.
Single-hole mixer supplied with two removable stainless steel spouts L.183 Ø 28.
Independent electronic control unit IP65.
Mains supply with 230/12V transformer.
Body and spout with smooth interiors (reduces bacterial development).
Configurable duty flush (pre-set to ~60 seconds every 24 hours after last use) to prevent stagnant water in the network during periods of disuse.
Flow rate limited to 5 l/min at 3 bar.
Presence detection via shock-resistant infrared technology.
Chrome-plated brass body with reinforced fixation via 2 stainless steel studs.
Temperature control with hygienic lever L.100 mm.
PEX hoses with filters and solenoid valves M3/8".
Anti-blocking safety mechanism in case of continuous flow.
Solenoid valves positioned before the mixing chamber.
Complies with the requirements of the NF M standard (Medical environment).
Electronic high mixer tap, ideal for healthcare facilities, hospitals, and clinics.
Suitable for people with reduced mobility.
Mixer tap with a 30-year warranty.

Two possible shut-off modes:
- Standard mode: pre-set flow time, automatic shut-off.
ON/OFF mode: user-controlled shut-off or automatic shut-off after 30 min.
Possibility to perform a thermal flush.
Place the sensor on the side of the tap in ON/OFF mode.
