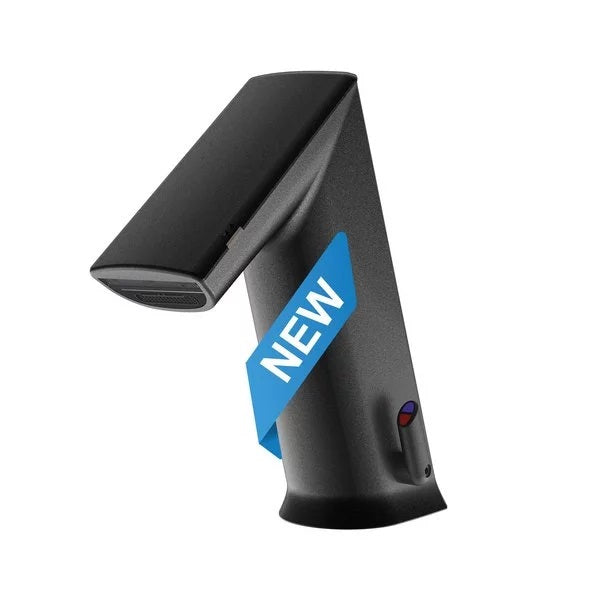

CONTI 162.000.77

CONTI+ Ultra GM10 PUBLIC electronic basin mixer, with IR sensor, with temperature mixing, with battery, without drain set, G3/8, Graphite Blackline

Touch-free, electronically controlled tap:

For connection to hot and cold water

Modular one-piece design without separate installation box, sturdy metal housing, Graphite Blackline

Reliable solenoid valve ROBUST (minimum water hammer)

Dual infrared sensors (with automatic adjustment function), microprocessor

Vandal-proof aerator (replaceable with integrated tool)

Connection for hot and cold water with flexible high-pressure hoses

Non-return valves and built-in filters

Temperature adjustable or fixable (vandal-proof construction)

Adjustable hot water limitation (mechanical)

TwistStop: integrated automatic shut-off to facilitate filter replacement or cleaning (no shut-off to angle valves required)

One Tool Service / all system components accessible from above

12 or 24-hour hygiene flush activatable with Touch

Compatible with CNX and Service APP: control of stored operational data, settings and operating functions

Compatible with Service APP: Control of stored operational data, settings and operating functions
Technical details

Battery: 4 x 1.5 V Alkaline AA batteries; lifespan up to 4 years

Operating pressure: 0.3 - 10 bar
Water temperature (max.): 80 °C
Flow rate: Approx. 5.7 l/min (3 bar)

Follow-up time: 1 s pre-set (adjustable with Touch 0-10 s)

Continuous water supply and hygienic flush time: 2 min. pre-set (adjustable with Touch 0.5-20 min.)

Temporary shut-off: 2 min (fixed)

Sensor sensitivity: Automatic self-adjusting sensor technology

Built-in filters: 0.5 mm mesh size

Aerator: Aerator RC
Flexible hose: 350 mm

Angle valve connection: G 3/8"

Technical standards: DIN EN 200; CE
