BOBRICK B-58616

BOBRICK B-58616

836B58616

€171,25 EUR
€171,25 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 21 days

Colour: Stainless steel Brushed

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

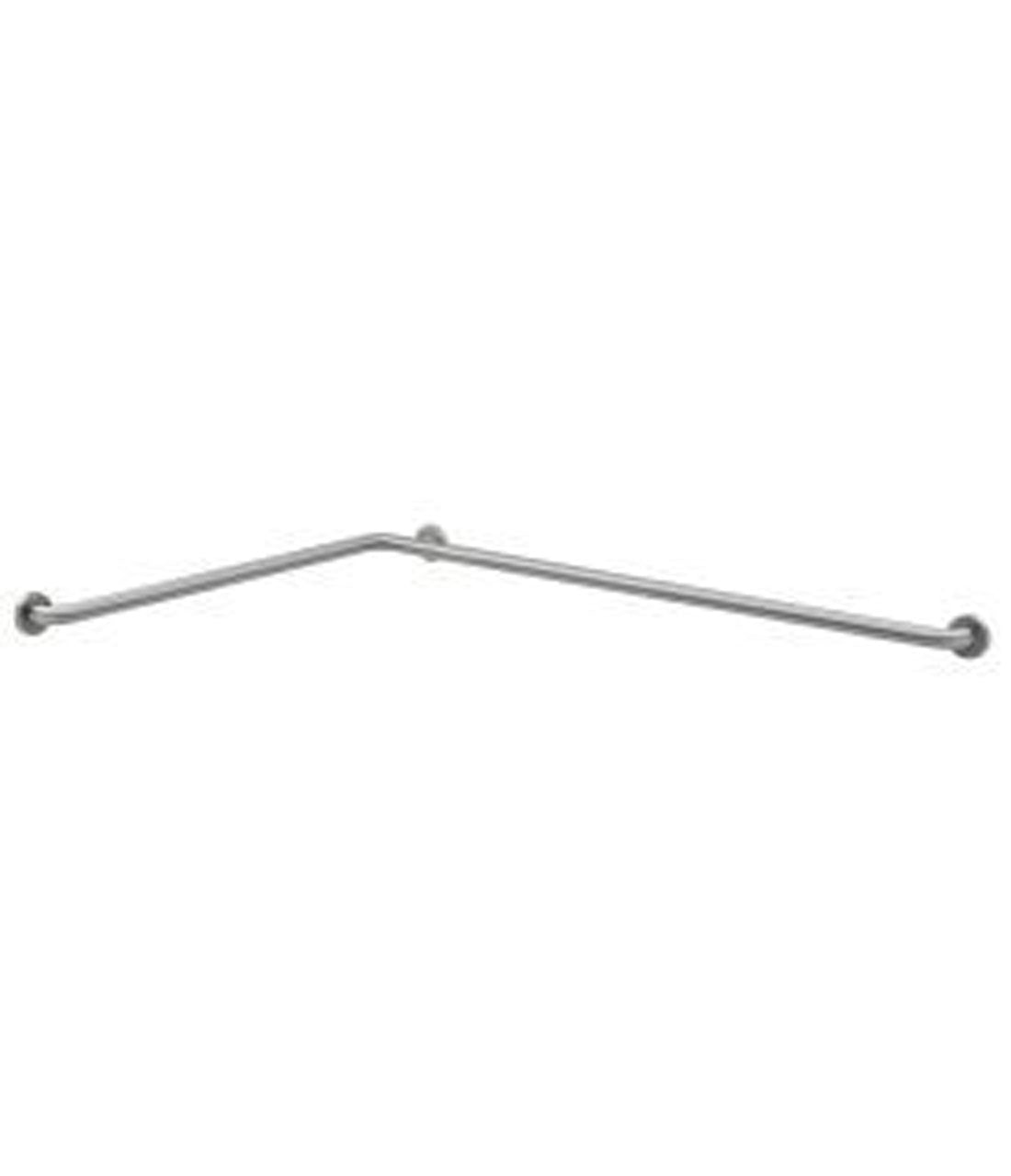

Bobrick B-58616 Stainless Steel Horizontal Corner Grab Bar 914 x 610 mm. Ø 32 mm. Made from satin-finish stainless steel tubing with a diameter of 32 mm. Meets structural strength requirements: grab bars mounted 38 mm from the wall can support a weight of over 408 kg when properly installed.

Specifications
The space between the wall and the support is 38 mm.
Bar 1.2 mm, stainless steel 304.
The bar passes through the flange, using heliarc welding to create a single unit.
Mandrel-bent curves ensure that the bars maintain the same diameter at bends.
All joints and supports are contour-cut and welded.
Concealed anchors and fasteners available as optional accessories.
Concealed mounting
A cover snaps over the mounting flange to conceal the screws.
Concealed mounting flange: 3 mm thick, stainless steel 304 plate, 51 mm wide x 79 mm high, with screw holes for concealed anchors.
The cover is 0.8 mm, stainless steel 304 with a satin finish, 83 mm diameter.

Specifications

Article number 836B58616
Brand Bobrick
Weight 1.814 kg
Colour Stainless steel
Material Stainless steel
Assembly Surface mounted
Finish Brushed
