BOBRICK B-293 1830 - 460x760 mm

Mirrors Bobrick
Skip to product information
1 of 2

SKU: 836B293-1830

Regular price €340,50 EUR
Regular price Sale price €340,50 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 21 days

Color: Stainless steel Brushed

Quantity

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

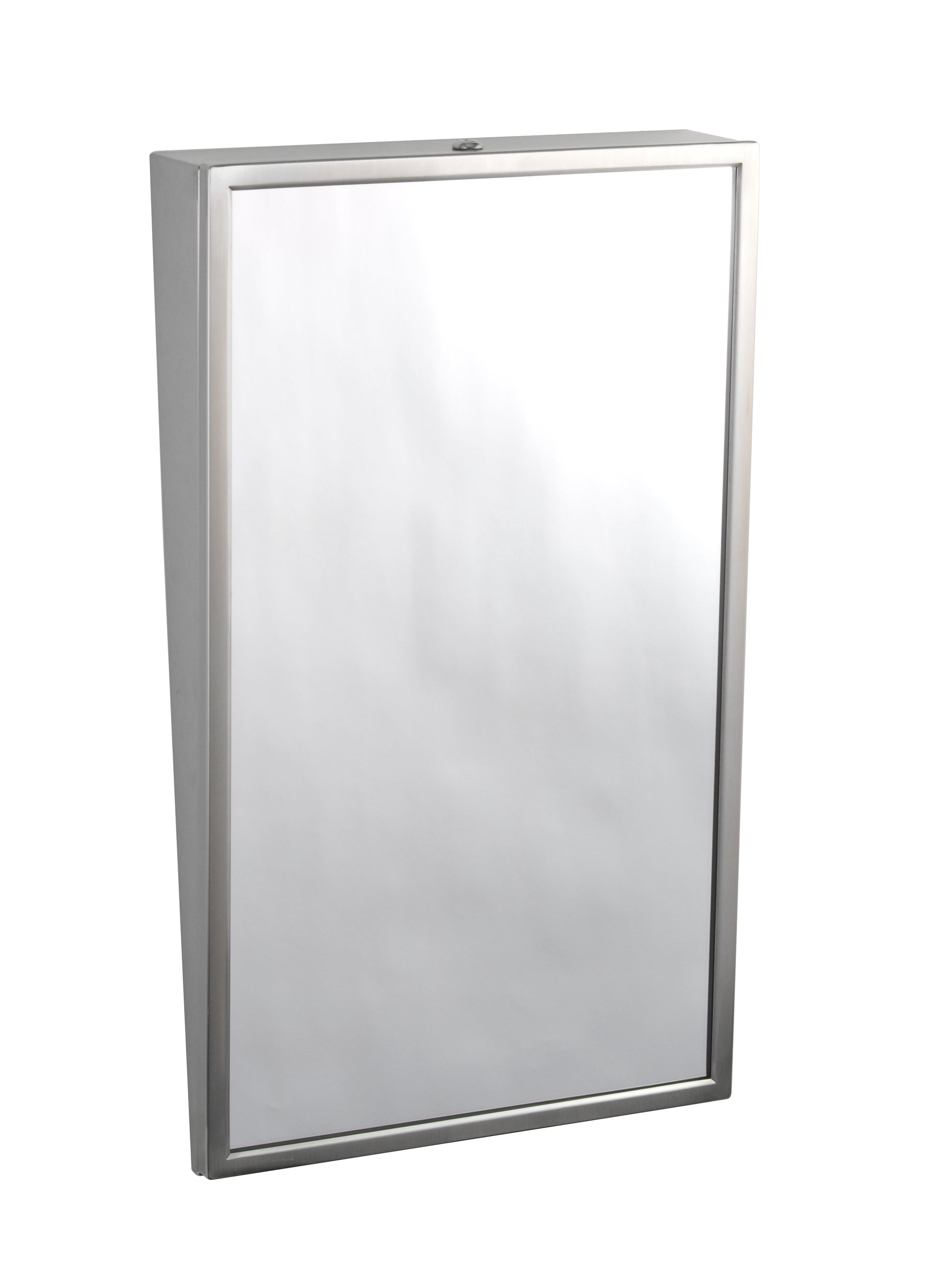

Bobrick B-293 1830 forward-tilting mirror with stainless steel frame

The Bobrick B-293 1830 is a forward-tilting wall mirror that provides wheelchair users with a good view. This version has a mirror size of 46 × 76 cm and is suitable for sanitary rooms in, among others, hospitals and nursing homes. The fixed, forward-tilting position makes the mirror practical to use from a seated position.

The mirror frame and the separate wall frame are made of high-quality 304 stainless steel with a vertically brushed satin finish. The mirror frame has a profile of 19 × 19 mm and welded, smoothly finished corners. The wall frame tapers from 111 mm deep at the top to 33 mm at the bottom, thereby determining the fixed tilt of the mirror.

The mirror is made of 6 mm thick float glass with a silvered and electrolytically copper-plated back. The polished glass edges are protected with plastic strips. A 3 mm thick, shock-absorbing and water-resistant polystyrene layer protects the back. Bobrick provides a 15-year warranty against deterioration of the silvering.

Integrated horizontal mounting brackets ensure attachment to the wall frame and prevent the mirror from pulling away from the frame. A cylinder lock secures the mirror to the wall frame.

Technical specifications

Feature Specification
Brand Bobrick
Model B-293 1830
Version Forward-tilting wall mirror with fixed tilt
Mirror size (w × h) 46 × 76 cm
Overall dimensions (w × h) 46 × 77 cm
Frame material 304 stainless steel
Finish Satin, vertically brushed
Frame profile 19 × 19 mm
Mirror glass thickness 6 mm
Wall frame depth Top 111 mm, bottom 33 mm
Back protection 3 mm thick polystyrene
Locking Cylinder lock
Warranty 15 years against deterioration of the silvering

Installation according to Bobrick installation manual 293-69.

PDF documents

B-293 td
293 ii

Specifications

Article number 836B293-1830
Brand Bobrick
Weight 11.385 kg
Colour Stainless steel
Material Stainless steel
Assembly Surface mounted
Finish Brushed
