HEWI 801.50B551 98 - 700 mm

Hinged support rail, rotatable from the 801 series
- with integrated flush mechanism, E-version and arm pad
- Two parallel, horizontally arranged rails connected by a connecting bend
- used for holding and support - with continuous, corrosion-resistant steel core and wall plate made of polyamide with integrated steel core

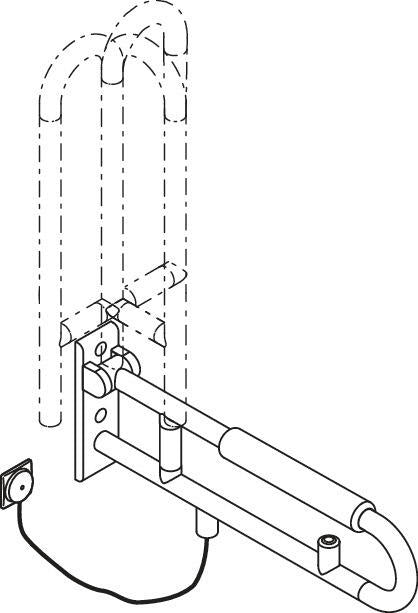

- Can be folded upwards and downwards with braking, and can be folded to the left or right against the wall when in the upright position
- Button with blue ring is used to activate the toilet flush
- Coiled cable with free cable ends for wall connection
- incl. white cover for flush-mounted box
- Control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- suitable for all standard flush-mounted cisterns with electrical operation
- Wall mounting with wall-specific HEWI mounting material (to be ordered separately)
- sealing tape for sealing the mounting points is included in the scope of delivery
- Concealed mounting
- tested to 150 kg when used with HEWI mounting material
- Recommended maximum user weight: 150 kg

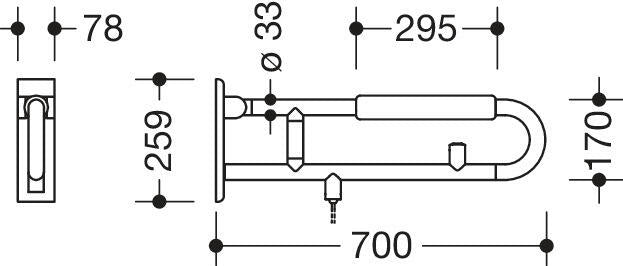

- Projection 700 mm, 259 mm wide and 78 mm high, rail diameter 33 mm
- Arm pad made of black PU integral foam, length 295 mm
- made of matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (rock grey) and 92 (anthracite grey)
- Toilet roll holder 801.50B011 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted.
- manufactured in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to ÖNORM B1600/1601 and SIA 500
- Sustainability: EPD Environmental Product Declaration
