DELABIE 565065BE

Accessories
1 2

SKU: 8146565065BE

€854,00 EUR
€854,00 EUR
Sale Sold out
Shipping calculated at checkout.

Delivery time: 21 days

Color:

Returns

Shipping countries

At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.

Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

View full details

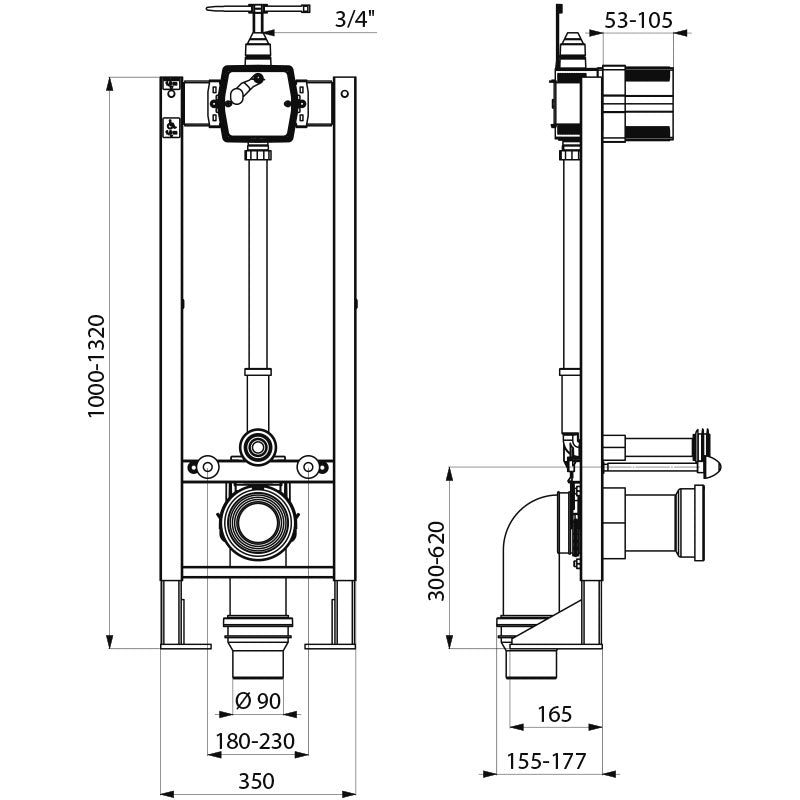

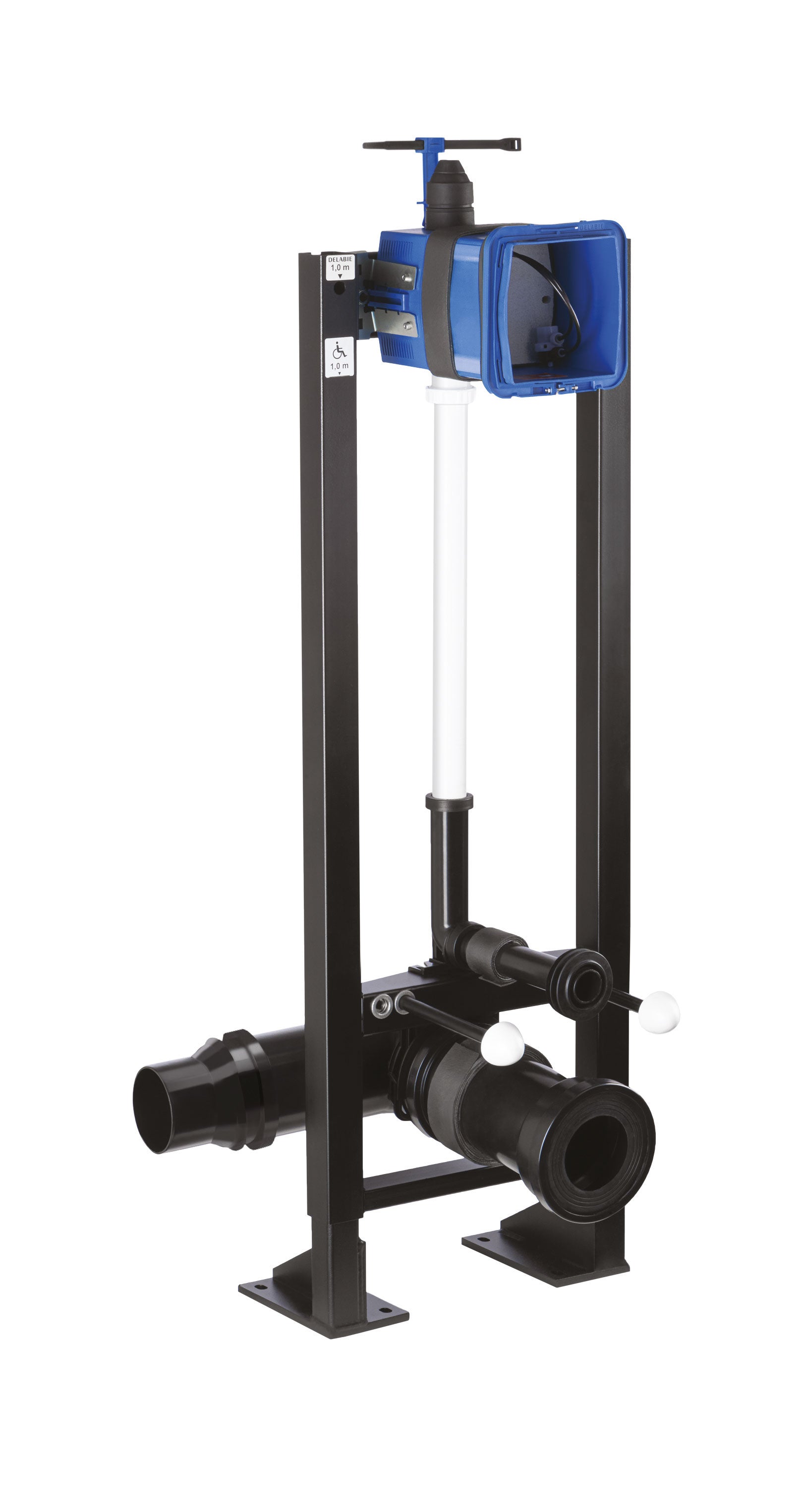

Self-supporting pre-wall system for wall-hung toilet, set 1/2.
Fire-resistant CF 60 min - EI60.
Pre-wall system in black epoxy-coated steel with wide feet for installation on structural floor:
- Frame height adjustable from 0 to 200 mm (with 1 m mark).
- Flush pipe Ø 32 with Ø 55 inlet seal and intumescent ring for fire protection.
- Outlet pipe Ø 90 in ABS to be glued to the seal, with 2 adjustment points and intumescent ring for fire protection.
- Compliant with standard NF D12-208 and fire safety regulations (order of 25 June 1980).
- Suitable for solid walls from 53 to 105 mm (4 BA13 and minimum tiling).

Watertight recessed box with intumescent ring for fire protection and fire protection kit:
- Air vent built into the recessed box.
- Integrated stopcock and flow regulator.

Supplied pre-assembled.
30-year warranty.

To be ordered with control plate reference 763000.

Specifications

Article number 8146565065BE
Brand Delabie
Weight 15.8 kg
