At CitroenAir, we ship worldwide. However, not all countries are set as standard shipping countries. Please check here if your country is on the list of shipping countries.
Is your country not listed? No problem, simply request a quote. We will prepare a suitable quote for you as soon as possible, so you can still order from us.
Private individual
Private individual
We do not supply to private individuals. Orders from private individuals will be cancelled.
CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.
Questions
Questions
Questions about this product or in need of advice? Use the chat function bottom left, contact us via info@citroenair.eu or call us on weekdays between 08:30 and 17:00 at +31 (0)318 59 29 30.

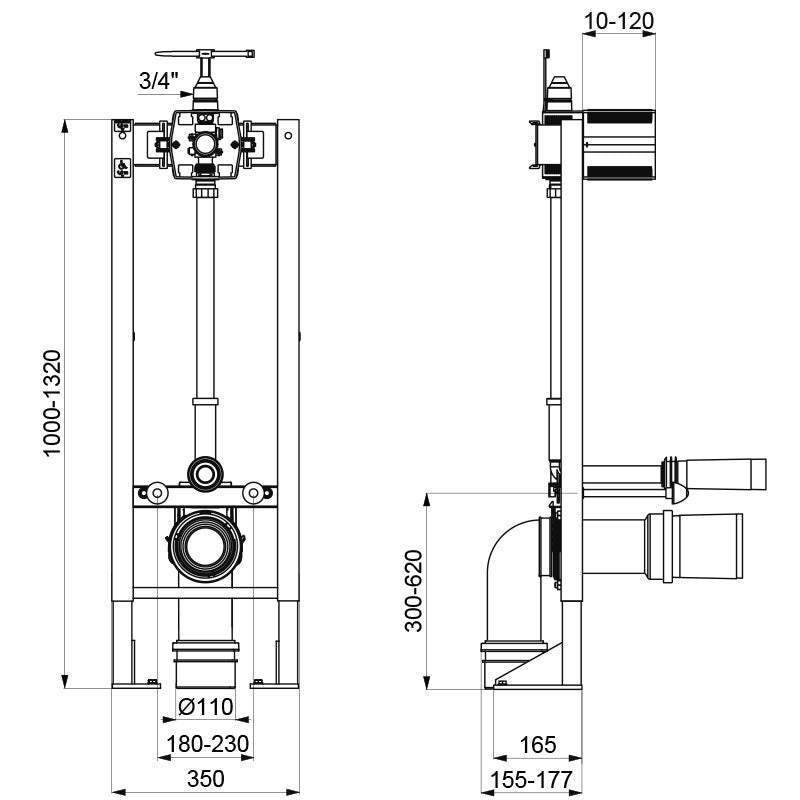

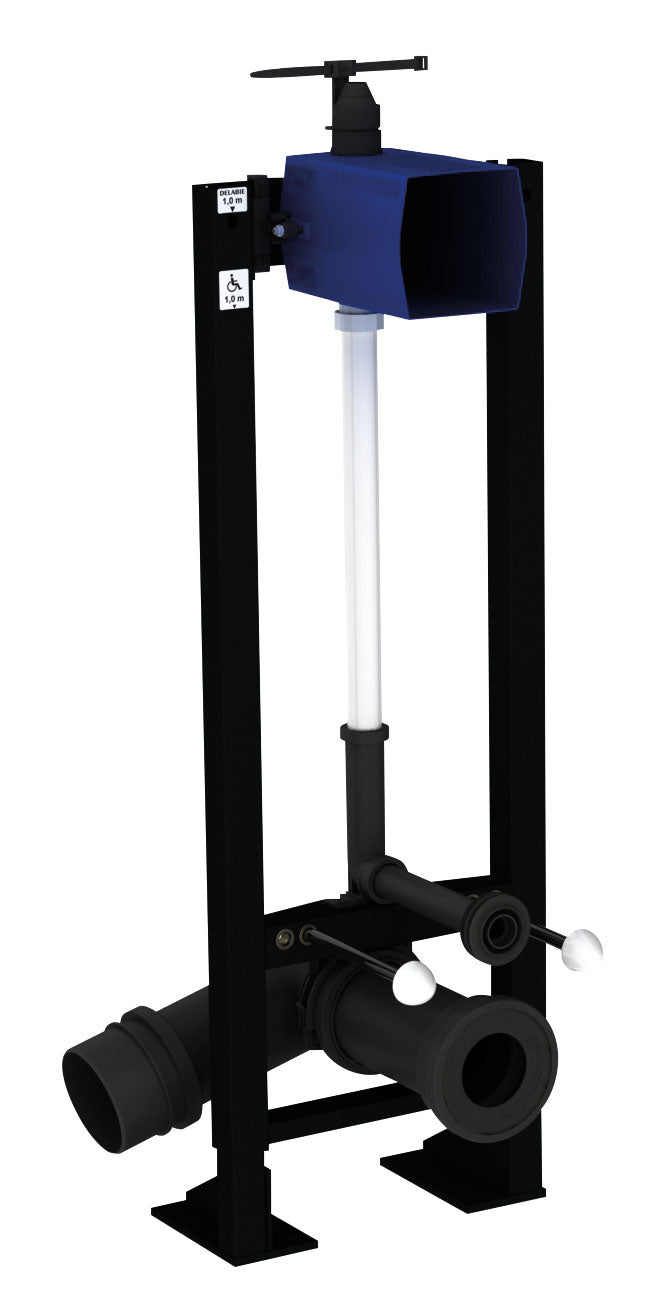

Self-supporting wall-mounted installation system for wall-hung toilet, set 1/2:
Wall-mounted system in black epoxy-coated steel:
- With wide feet for installation on load-bearing floor.
- Chassis height adjustable between 0 and 200 mm (with 1 m mark).
- For walls between 10 and 120 mm.
- Flush pipe Ø 32 with inlet seal Ø 55.
- ABS discharge pipe with PEHD connection sleeves Ø 110 with sealing ring, with 2 setting points.
Watertight recessed housing: for flush system without cistern, directly connected to the water mains.
- Compatible with electronic or self-closing toilet valves.
- Power supply via CR123 Lithium 6 V batteries.
- Built-in vacuum breaker, inside the recessed housing.
- Stopcock and flow rate regulation integrated.
Delivered pre-assembled.
Compliant with standard NF D12-208.
30-year warranty.
To be ordered with control plates references 464006, 464056, 465006, 465056, 763000, 763030, 763040 or 763041.
Specifications
| Article number | 8146564065DE |
|---|---|
| Brand | Delabie |
| Weight | 15.47 kg |
