3-function module for behind-the-mirror installation

Electronic tap, soap dispenser and hand towel dispenser

3-function module: electronic soap dispenser, tap and hand towel dispenser.
No manual contact for better hygiene: soap dispenser and tap with automatic infrared detection.
Quick and easy to install:
- To be installed in a vanity unit. Mounting of the frame from the back and sides. 304 stainless steel frame, 1.2 mm thick.
- Only one electrical connection for all elements: power supply via 230 V / 50-60 Hz mains.
- Water connection M3/8".
- Supplied with stainless steel screws for concrete wall or wood reinforcement.
3-function module:
Electronic soap dispenser:
- Economical soap pump
- Large capacity tank: 5 litres.
- For liquid vegetable soap with maximum viscosity: 3,000 mPa.s or special foam soap.
Electronic basin tap *:
- Anti-stagnation solenoid valve.
- Flow rate preset at 3 l/min, adjustable between 1.4 and 6 l/min.
- Scale-resistant flow straightener.
- Periodic duty flush (~60 seconds every 24 hours after last use).
- Stop valve.
- Adjustable sensor (±10°) for auto-detection.
Hand towel dispenser:
- Individual sheet-by-sheet dispensing system
- Dimensions: 120 x 275 x 360 mm.
- Capacity: 500 sheets.
Supplied with adhesive pictograms to indicate the location of the various functions: soap, water, towels on the mirror/vanity unit.
Vandal-resistant model with lock and standard DELABIE key.
Anti-blocking safety: stops automatically in case of continuous use.

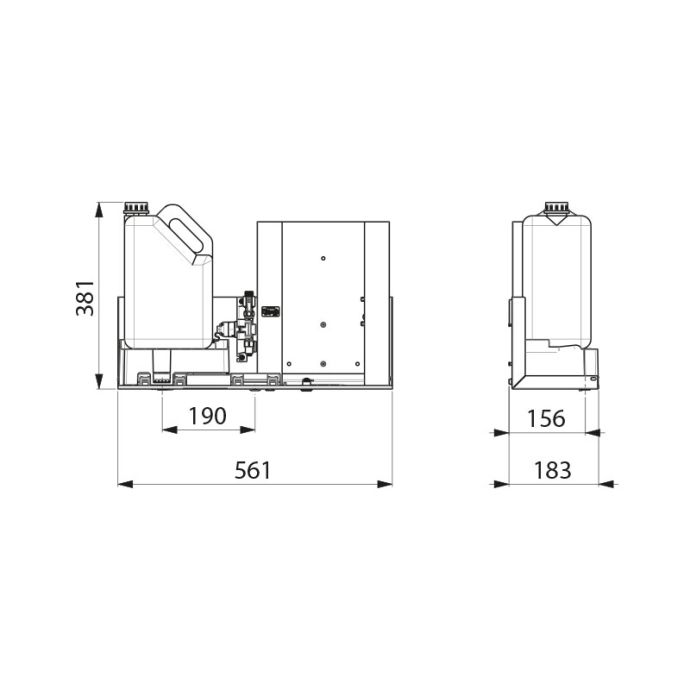

Dimensions: 561 x 183 x 381 mm.
Weight: 5 kg.
30-year warranty.
CE marked.

* PREMIX thermostatic mixing valve included.
