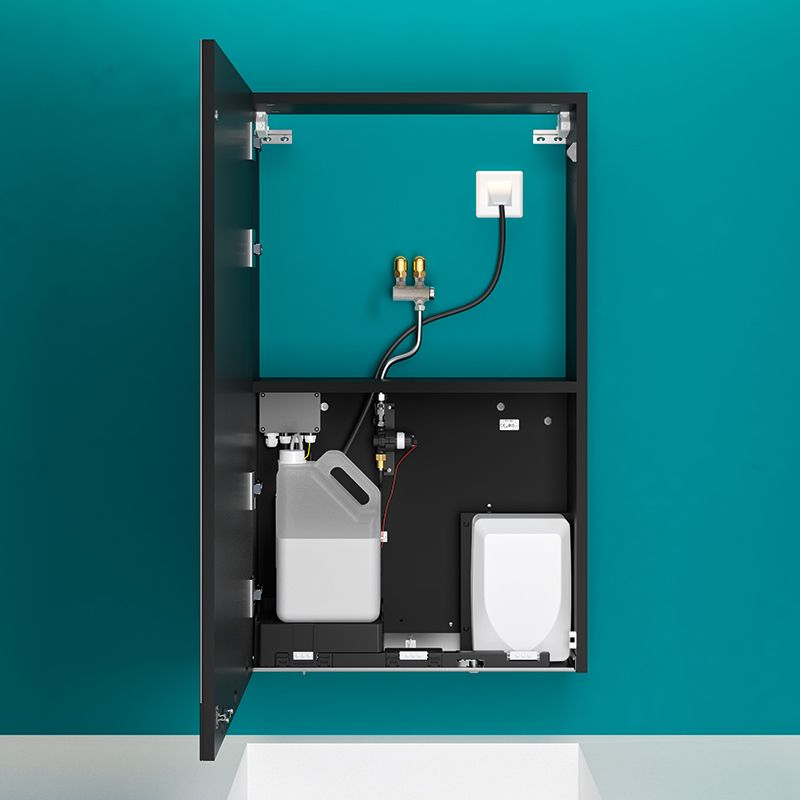

DELABIE 510204 4-in-1 mirrored cabinet 800 mm tap, soap dispenser and hand dryer

Mirror, hand dryer, electronic soap dispenser and tap

Mirror cabinet with 4 functions: mirror, electronic soap dispenser and tap, automatic hand dryer.
Designer mirror cabinet in matt black melamine and 304 stainless steel.
No manual contact for better hygiene: soap dispenser,
tap and hand dryer with automatic hand detection using an infrared sensor.
Quick and easy installation:
- Only one electrical connection for all elements: mains voltage 230 V / 50-60 Hz.
- Connection from above or through the inside of the mirror cabinet.
- Water connection M3/8".
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete wall or wood reinforcement.
- Adjustable hinges.
Module with 4 functions:
4 mm thick glass mirror and black glass strip at the bottom with illuminated pictograms.
Electronic soap dispenser:
- Economical dosing pump
- Large capacity reservoir: 5 litres.
- For liquid vegetable soap with maximum viscosity: 3,000 mPa.s (3000 cP) or special foam soap.
Electronic washbasin tap *:
- Anti-stagnation solenoid valve.
- Flow rate set to 3 l/min at 3 bar, adjustable between 1.4 and 6 l/min.
- Anti-limescale aerator.
- Periodic flushing (~60 seconds every 24 h after last use).
- Stopcock.
- Orientable sensor (±10°) in case of auto-detection.
Hand dryer with double air jet:
- Ultra-fast drying time.
- Air speed: 360 km/h. Air displacement: 39 l/s.
- Limited energy consumption: 1350 W.
- Noise level: 70 dBA.
- Class I, IP23.
- 3-year warranty.
Washbasin lighting by LED strips.
Vandal-resistant model with lock and standard DELABIE key.
Anti-blocking safety: automatically stops with continuous use.
Integrated storage shelf.
Multiple mirror cabinets can be combined to create a mirror wall: connecting screws included.
Dimensions: 800 x 223 x 1 000 mm.
Weight: 39 kg.
Mirror cabinet with 30-year warranty.
CE.

* Provide a PREMIX mixing valve.

Power supply	Mains voltage 230 V / 50-60 Hz
Connection	M3/8"
Technology	Electronic
Height	1,000 mm
Depth	223 mm
Width	800 mm
Flow rate	Flow rate set to 3 l/min at 3 bar, adjustable between 1.4 and 6 l/min
Thickness	Glass mirror: 4 mm
Finish	Matt black melamine and 304 stainless steel
Standards and certificates
Warranty
Repair warranty
