BOBRICK B-68137.99

Barrièrevrij
1 1

| On request

SKU: 836B68137.99

Delivery time: 21 days

Color: Stainless steel Blasted

Returns

Countries of dispatch

At CitroenAir, we deliver worldwide. However, not all countries are set as default delivery destinations. Check here to see if your country is included in the list of delivery destinations.

Is your country not on the list? No problem – simply request a quote. We’ll draw up a suitable quote for you as soon as possible, so that you can still place an order with us.

Private individual

We do not supply to private individuals. Orders from private individuals will be cancelled.

CitroenAir supplies exclusively to business customers such as healthcare organisations, companies, architects and installers.

Questions

Do you have any questions about this product or need some advice? Use the chat function at the bottom left, contact us at info@citroenair.eu or call us on working days between 08:30 and 17:00 on +31 (0)318 59 29 30.

View full details

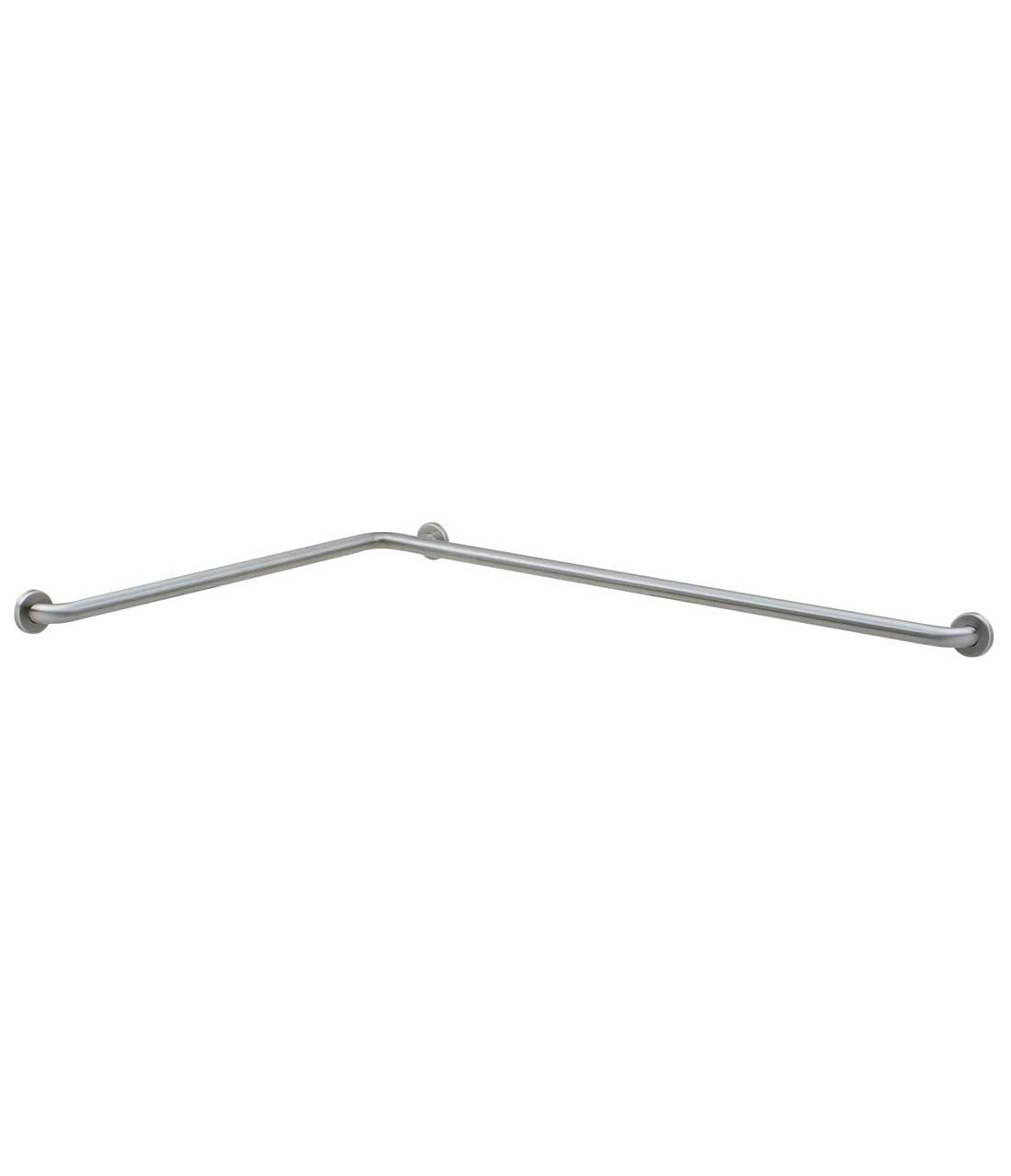

Bobrick B-68137.99 Stainless steel horizontal corner grab bar 1372 x 914 mm. Ø 38 mm. peened, non-slip gripping surface. Fabricated from satin-finish stainless steel tubing with a 38 mm diameter. Meet structural strength requirements: grab bars with 38 mm clearance from the wall can support loads in excess of 408 kg when properly installed.

Specifications
Clearance between the wall and the bar is 38 mm.
Tubing 1.2 mm, stainless steel 304.
The bar passes through the flange and is heliarc-welded to form a single unit.
Mandrel-bending ensures the bars maintain the same diameter at the curves.
All joints and supports are contour-cut and welded.
Concealed anchors and mounting hardware available as optional accessories.
Concealed mounting
A cover snaps over the mounting flange to conceal the screws.
Concealed mounting flange: 3 mm thick, stainless steel 304 plate, 51 mm wide x 79 mm high, with screw holes for concealed anchors.
The cover is 0.8 mm, stainless steel 304 with a satin finish, 83 mm diameter.

Specifications

Article number 836B68137.99
Brand Bobrick
Weight 3.402 kg
Colour Stainless steel
Material Stainless steel
Assembly Surface mounted
Finish Blasted
