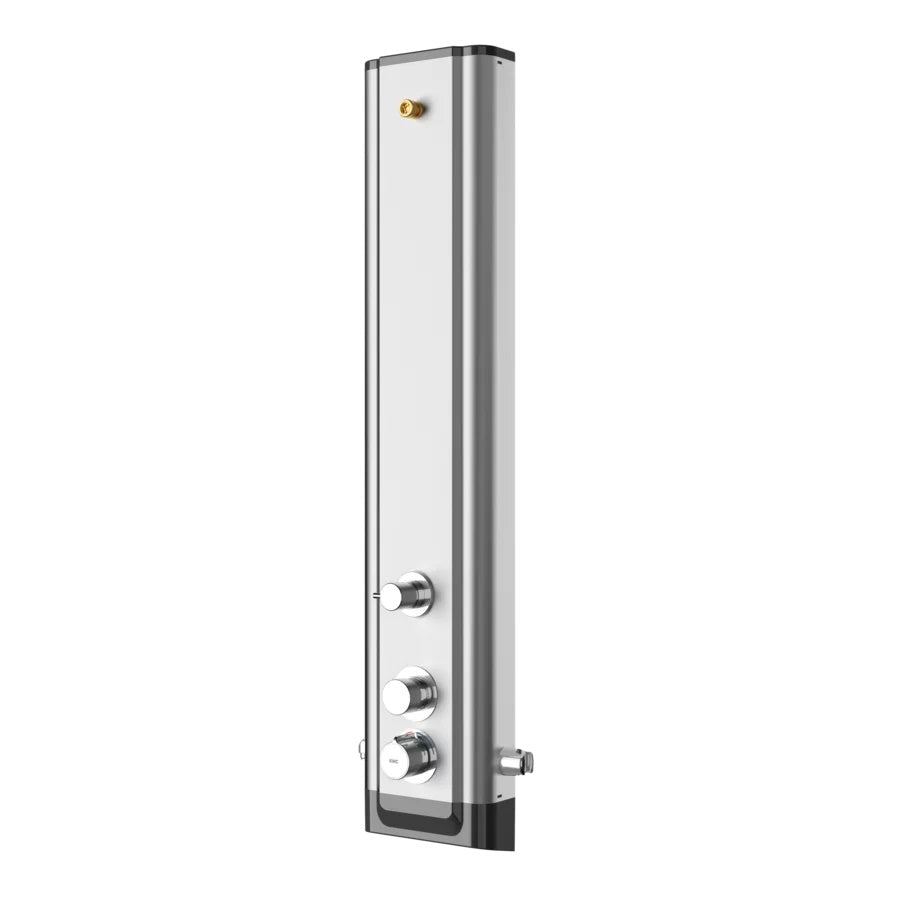

DELABIE F5ST2046

F5S-Therm shower panel made of stainless steel for surface mounting with self-closing thermostatic mixer DN 15 and diverter for overhead and hand shower. Hydraulically controlled, for connection to hot and cold water. Functional block with integrated self-closing FRAMIC cartridge, thermostat and pre-mounted hygiene unit including sensor with control electronics for automatic hygienic flushing, program-controlled thermal disinfection (additional bypass cartridge with solenoid valve required) and storage of statistical data. Self-closing FRAMIC cartridge, low-maintenance and stagnation-free, with ceramic disc technology, self-closing, flow pressure-independent due to split-chamber design. Flow time continuously adjustable. Thermostat with metal handle with adjustable and anti-twist temperature stop and possibility for manual thermal disinfection. Fully made of metal, visible parts polished and chrome-plated. Connection piece for separately required KWC shower head DN 15 with pre-mounted flow regulator 9.0 l/min, stainless steel casing with high-quality functional surface and plastic cover caps. Hand shower connection on the left and chrome-plated plastic hand shower holder on the right, both pre-mounted on the side. Connection hoses with lockable flow regulators with backflow limiter and sieve. Activated hygienic flushing, fixed interval time 24 hours. With possibility for parameterisation and communication via optional bidirectional remote control. Hygiene unit optionally for battery operation with 6 V lithium battery (CR-P2) per fitting or separate power supply via mains adapter 6.75 V / 12 V DC.

Casing dimensions 235 x 1160 x 90 mm (W x H x D)

Shower head, hand shower with shower hose and battery compartment including battery or mains adapter plus extension cable must be ordered separately
