DELABIE BS323N

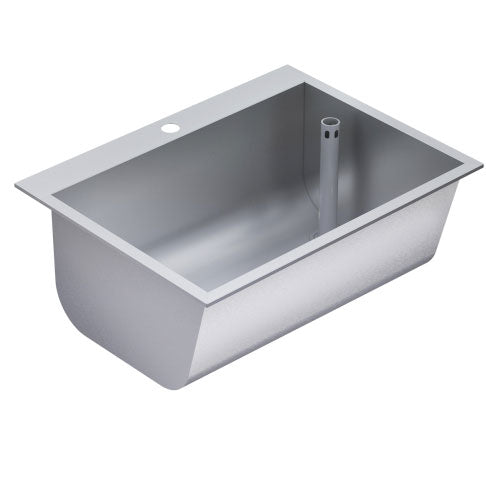

KWC PROFESSIONAL inset wash trough, made of stainless steel, surface satin finished, material thickness wash trough 0.8 mm / side panels 1.2 mm, seamlessly welded, ribbed front panel, tap ledge (75 mm), with tap hole (35 mm), without overflow, drain on the right, plastic standpipe G 1 1/2 B, including sealing and mounting clamps for inset installation.

Dimensions 670 x 281 x 520 mm (W x H x D)
Bowl dimensions 620 x 281 x 420 mm (W x H x D)
Cut-out dimensions 655 x 505 mm (W x D)

Material code 1.4301 Chrome nickel steel V2A
Overall depth 520.00 mm
Overall height 281.00 mm
Overall width 670.00 mm
Type of mounting Inset
Bowl - bowl depth 281.00 mm
Bowl - depth 420.00 mm
Bowl - width 620.00 mm
Overflow standpipe
Tap hole diameter 35.00 mm
Tap hole position Centre
Tap ledge Yes
Drain dimensions DN 40
Bowl finish SATIN-FINISHED
Type of drain kit Grating standpipe
Drainage channel No
Outlet diameter G 1 1/2 B
Number of drain holes 1.00000
Number of wash places 1.00000
Bowl construction Square corner
Brushes WITHOUT BRUSHES
Drainer or shelf No
Grating No
Groove No
Sludge trap No
Sludge trap basket No
Type of utility block Multi-purpose sink
Sludge trap basket No
ATT-WS-TYPEWATCON 20191231.00000
